Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series124

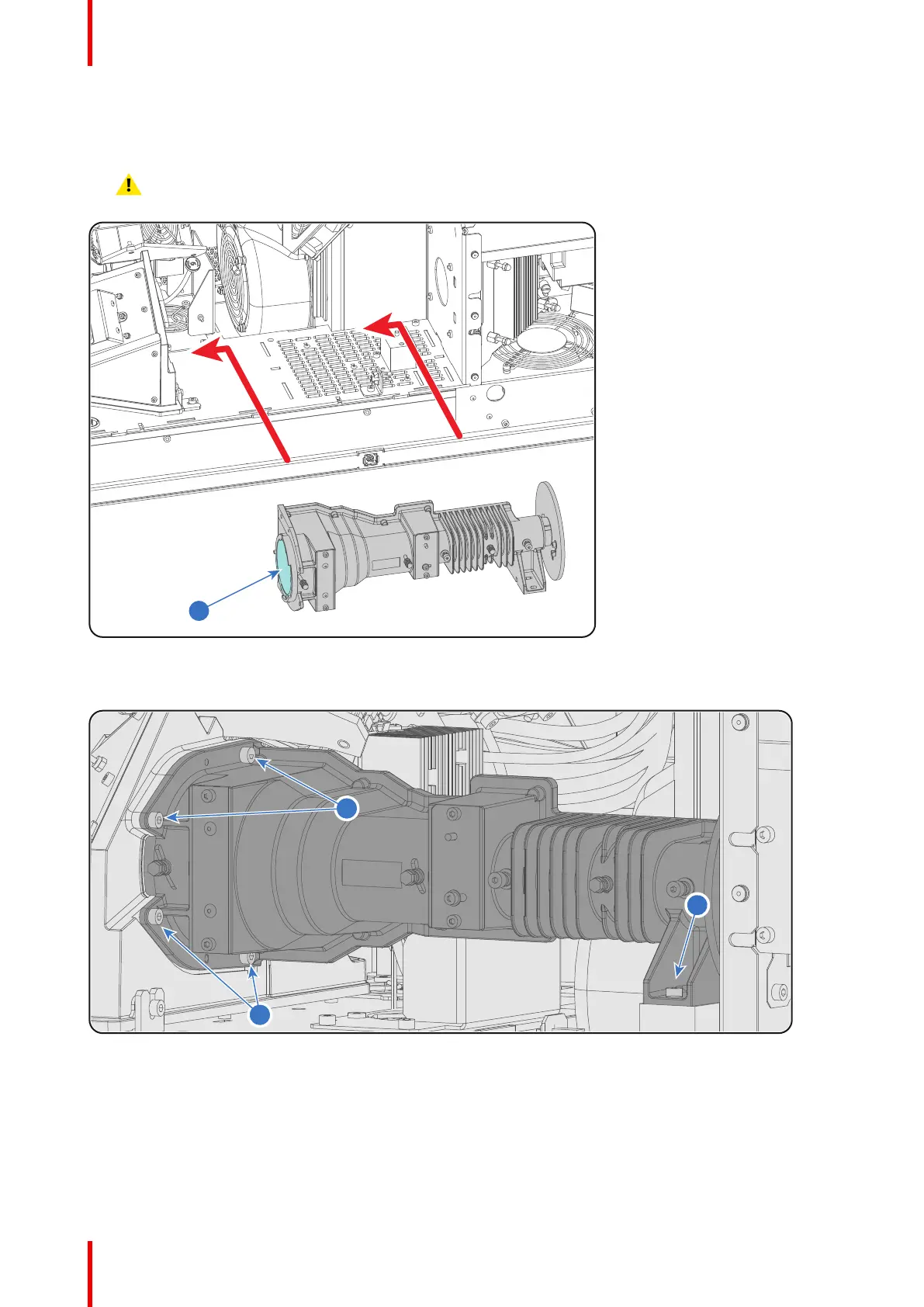

How to install the Light Pipe onto the corner block?
1. Carefully insert the Light Pipe into the compartment and engage the Light Pipe in the corner block.
Caution: Do not bump (accidentally) with the lens (reference 3 Image 10-15) of the Light Pipe against
the projector chassis.
3
Image 10-15
2. Fixate the Light Pipe with five screws (reference 2 Image 10-16). Use a 3mm Allen wrench.
2
2
2
Image 10-16
3. Connect the wire (reference 1 Image 10-17) of the temperature sensor.
Light Pipe
