13.9
Removing and installing air cleane
r
insert
•
Remove both knee pads
.
•
Remove fuel tank.
•
Remove left and right heat-insulating bulkhead.
•

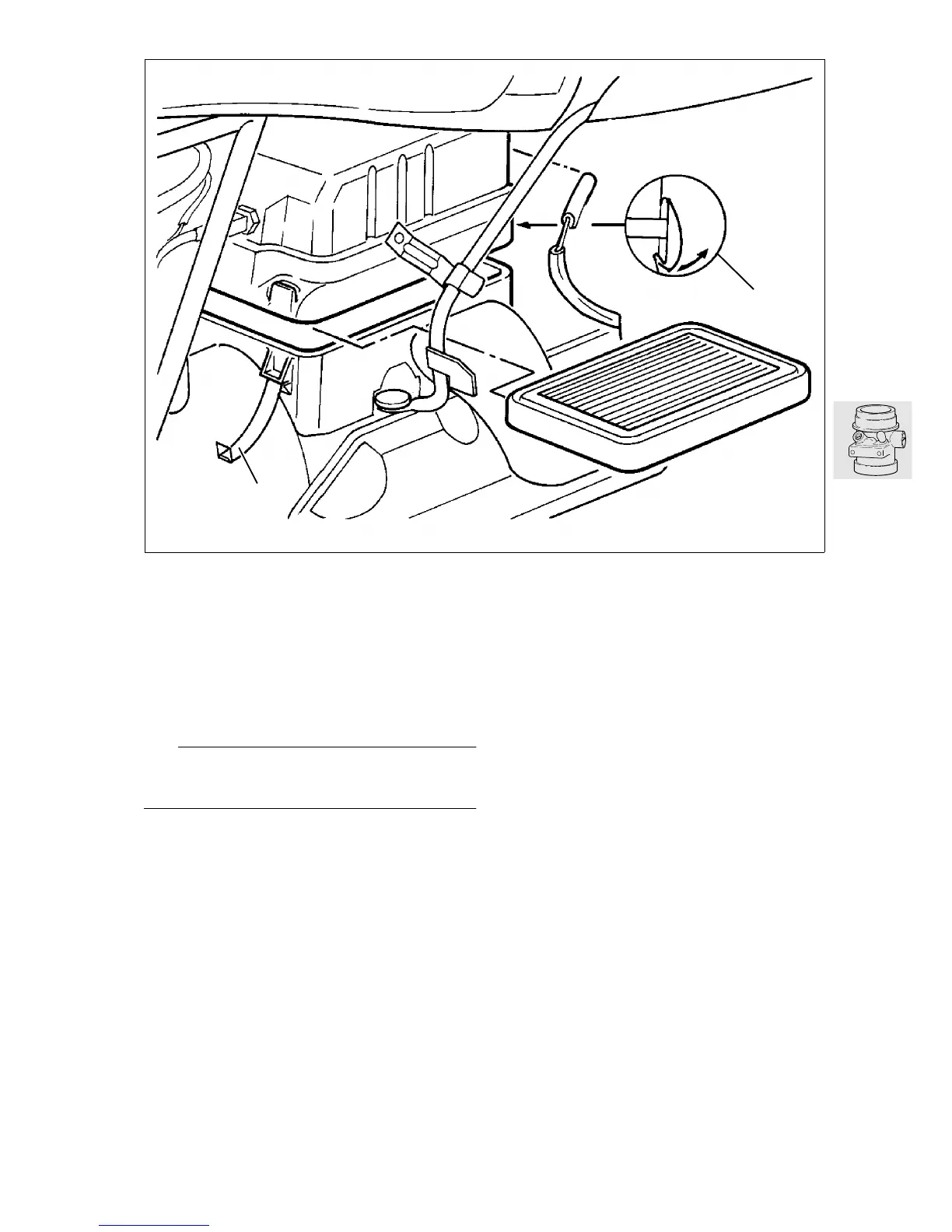

Release front cl
ip (1) and both rear
clips (2).
•
Slightly raise top section of air
cleaner housing
and remove air cleaner element.
L
Note:
Note installed position of air cleaner
element: letter-
ing at rear,
arrow marking
“TOP/OBEN”.
LT130070
1
2
126
128
