46.16
Checking running gear
Measuring track offset
•
Mount motorcycle on centre stand on even base.
•

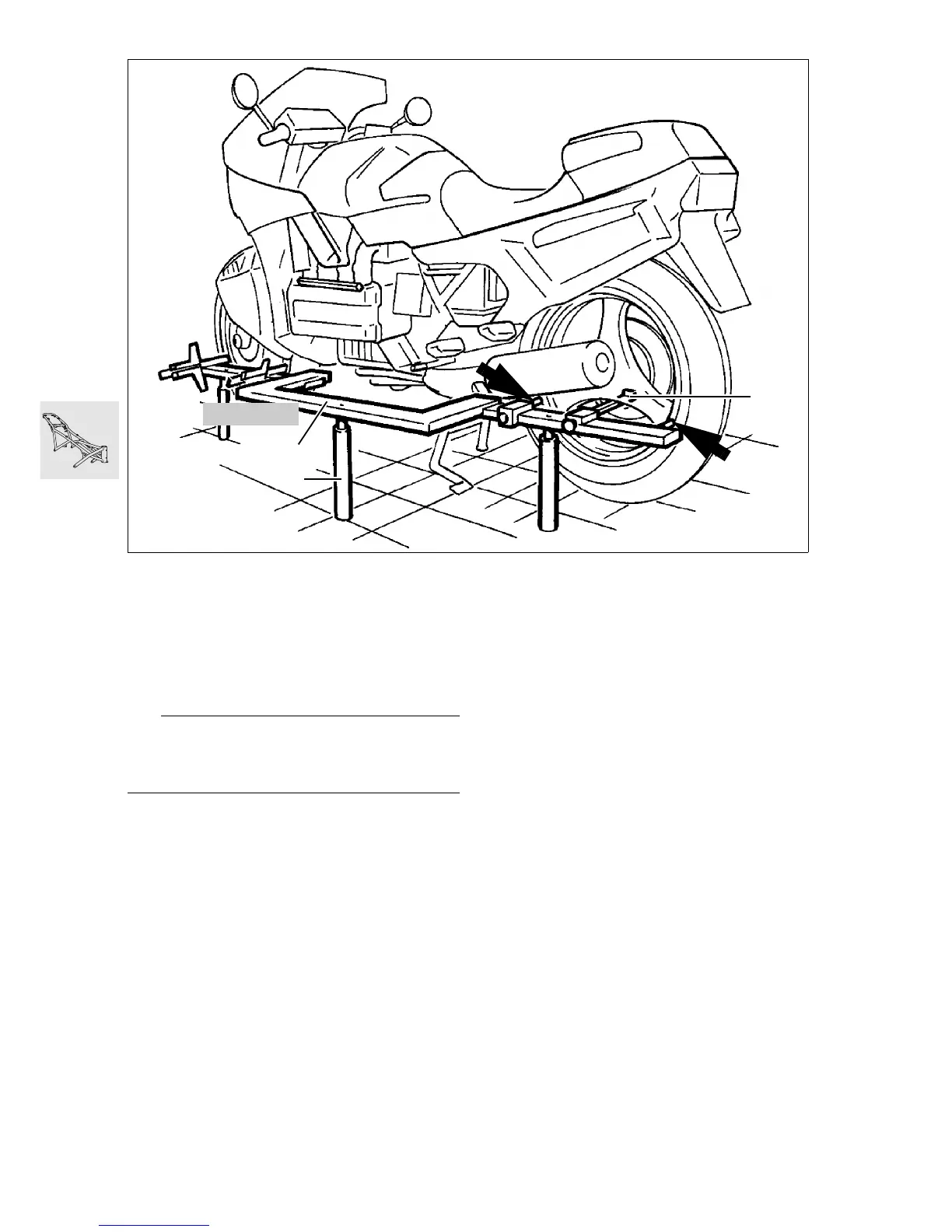

Position track offset gauge (1),
BMWNo.363920, on left or right side of motor-
cycle.
L Note:
In order to measure with the track offset gauge from
the left or right side, the supports need only be
screwed in from the other side.
•
Adjust supports (2) so that the measuring level is
as near as possible to the centre of the wheel. It
must be possible to smoothly slide the gauge to-
wards the motorcycle.
•
Adjust limit stops (arrows) so that they only rest
on the rim and not on the tyre.
•
Attach hook (3) to wheel spoke and firmly pull
gauge up to the wheel.
•
Align front wheel parallel with respect to the
gauge.
•
Measure distance with depth gauge or straight
edge from outer edge of gauge to rim and note
down measurement.
LT460210
2
3
36 3 920
1
