12.9

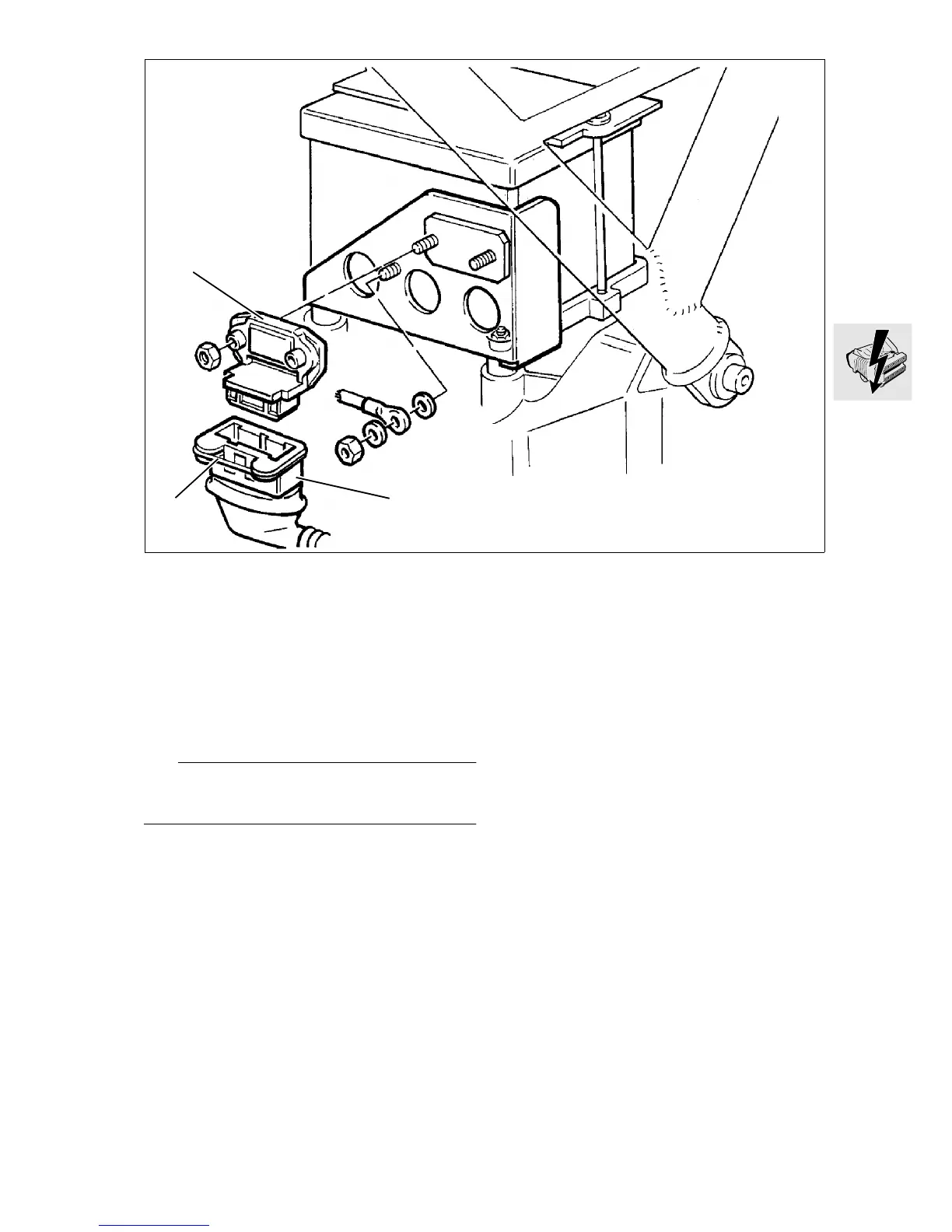

Removing and installing ignition
output stage
•
Remove left battery bracket.
•
Disconnect earth (ground) lead of battery.
•
Remove ignition coils.
•
Remove ignition output stage (1).
•
Press retaining clip (2) and detach ignition output
stage.
•
Install in the reverse order
of removal.
L
Note:
Before installing
the ignition output s
tage, coat the
rear with heat conducting paste
Curil K 2
.
LT120060
3
2
1
94
96
