34.26
Measuring vertical runout at rear
pulse wheel
•
Remove brake caliper.
•
Remove rear wheel.
•
Secure dial gauge with retaining fixture to bottom
of spring strut mounting.
•

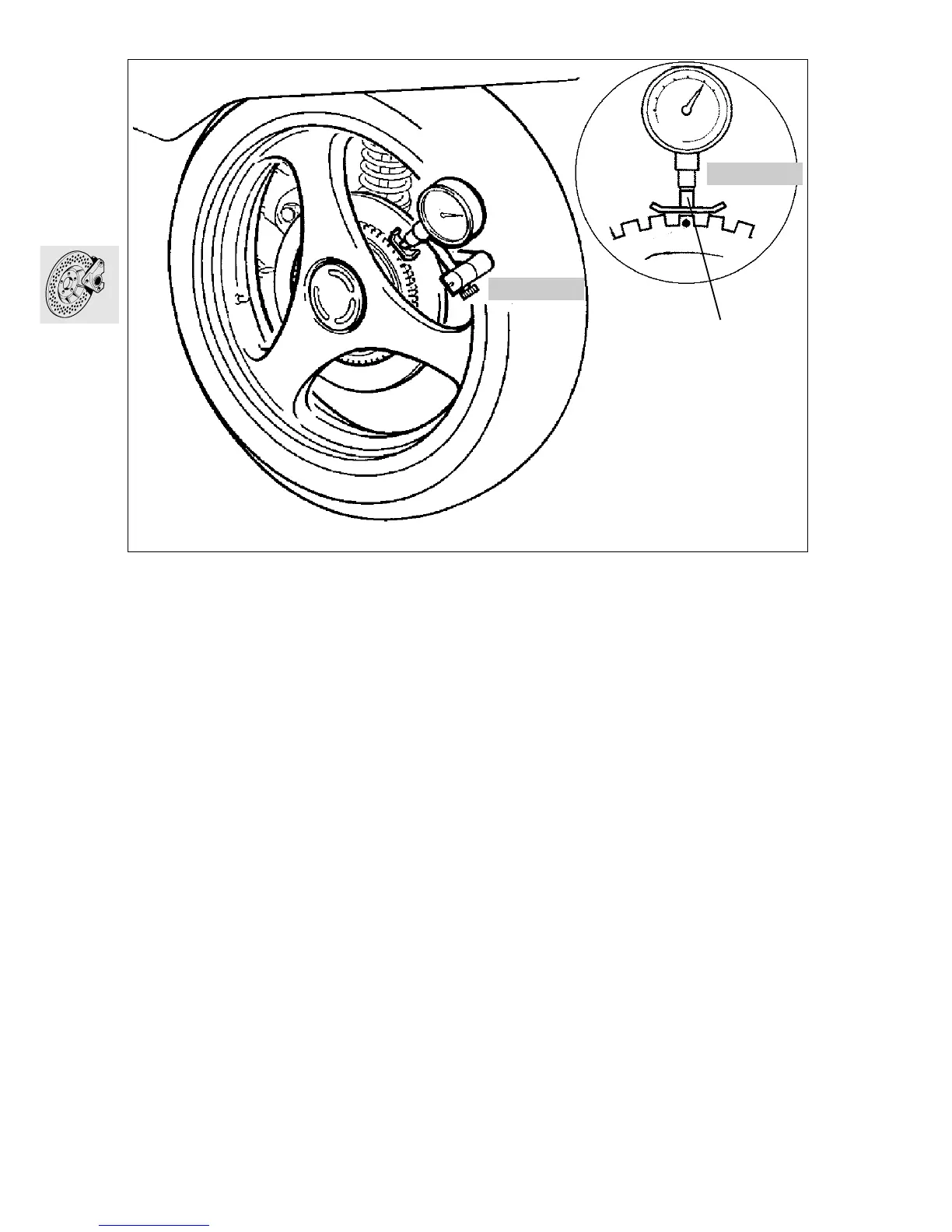

Position dial gauge with measuring shoe (1),
BMW No. 34 2 510, on pulse wheel.
•
Set dial gauge to zero.
•
Measure vertical runout over the entire circum-
ference.
•
Mark the point with the least vertical runout with
oil paint.
•
Adjust the sensor spacing at this point.
Sensor spacing
Up to 1996 model year..................0.60 ... 0,65 mm
................................................ (0.0236...0.0256 in)
From 1997 model year on ............0.45 ... 0.55 mm
................................................ (0.0177...0.0216 in)
LT340170
1
34 2 520
34 2 510
