00.18
Checking clutch clearance and
adjusting if necessary
Inspections I, III
•

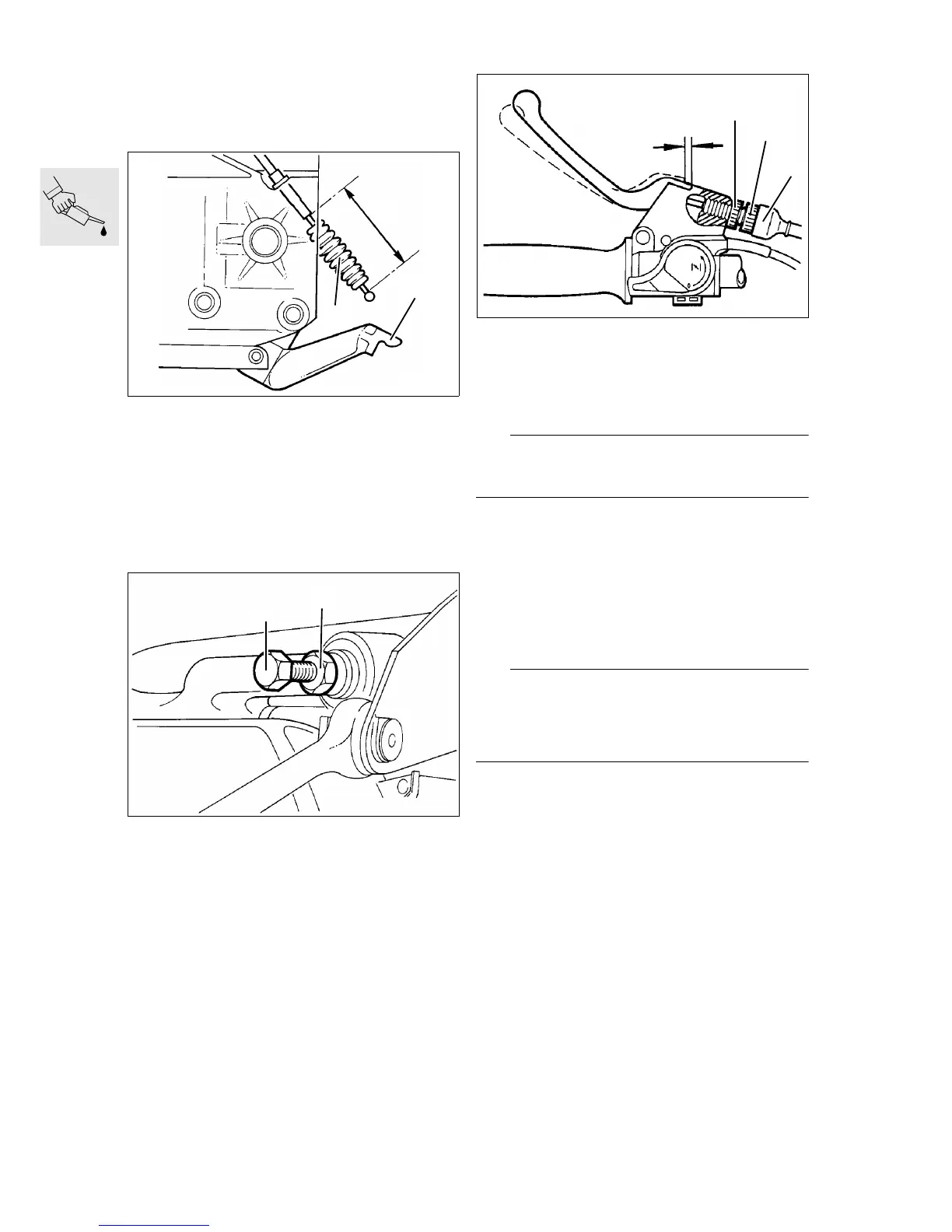

Detach clutch cable at clutch release lever (1).
•
Slightly push back rubber sleeve (2).
•
With the aid of setting gauge,
BMWNo.213500,set dimension “b” with ad-
justing screw at clutch hand lever.
Dimension “ B ” ..... 75 ± 1 mm (2.952 ± 0.03937 in)
•
Reattach clutch cable at clutch release lever.
•
Using box spanner, BMWNo.213610,release
locknut (6) of adjusting screw (7) at clutch re-
lease lever.
•
Unscrew adjusting screw by one to two turns,
then screw in until pressure can be felt.
•
Lock adjusting screw with locknut.
•
Set dimension “A” with adjusting screw at clutch
hand lever.
•
Lock adjusting screw (5) with knurled nut (3).
Dimension “A” ........ 4 ± 0.5 mm (0.157 ± 0.0197 in)
e Caution:
Adjust to take up wear only at the adjusting screw
on the clutch release lever.
Reading out Motronic defect code
memory
Inspections II, III
•
Carry out this job only on motorcycles with cata-
lytic converter.
L Note:
To read out Motronic defect code memory, see the
booklet entitled:
“BMW Diagnosis, Motronic 2.1 with oxygen-sensor
control” (order No. 01 70 9 798 970).
