00.14

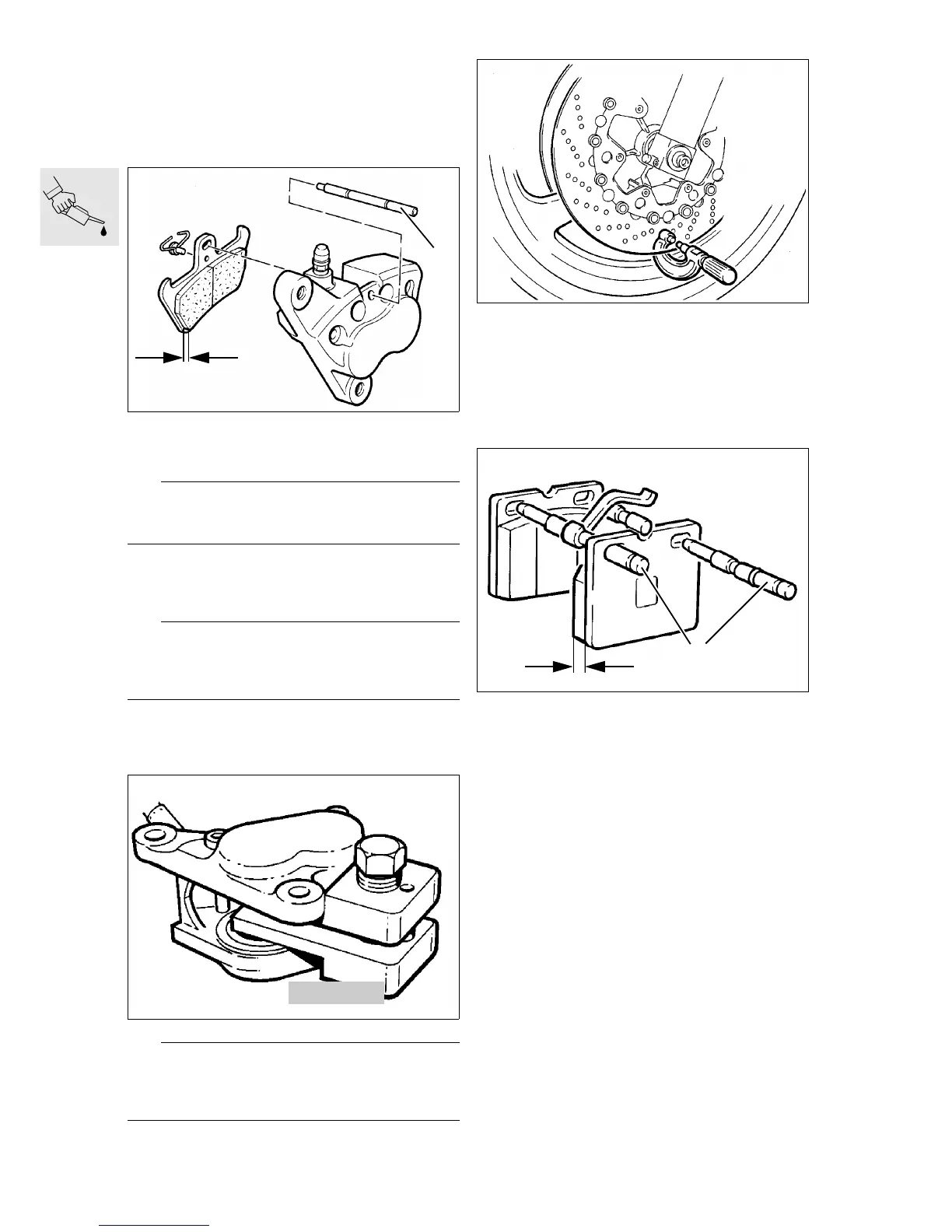

Checking brake pads, brake discs
for wear and renewing if necessary
Inspection II, III
Front wheel brake
•
Remove rear section of mudguard.
•
Remove brake caliper.
L Note:
It is not necessary to release the brake line at the
brake caliper if only the brake pads are to be changed.
•
Drive out retaining pin (1).
•
Remove brake pads by pulling in downward
direction.
e Caution:
The brake pad thickness (arrows) must not drop be-
low the minimum specified value.
Change pads only as complete sets.
Min. pad thickness on carrier plate....1.5 mm (0.06 in)
•
Install in the reverse order of removal.
L Note:
Before installing the brake caliper, completely press
back pistons with resetting tool (1),
BMW No. 34 1 500.
•
Measure thickness of brake disc with a microm-
eter.
Wear limit....................................................4.5 mm
Rear wheel brake
•
Lever off cap from brake caliper.
•
Remove brake caliper.
•
Drive out retaining pins (1) from wheel side.
•
Remove brake pads by pulling upward.
•
Install in the reverse order of removal.
Mininum pad thickness on carrier plate.......1.5 mm
.................................................................. (0.06 in)
Wear limit of brake disc...............................4.5 mm
................................................................ (0.177 in)
LT000090
1
34 1 500
LT000100
LT000110
LT000120
1
