31.5
Removing telescopic fork
•
Secure lifting gear, BMW No. 00 1 510, to oil
sump.
•
Remove fuel tank.
•
Remove front mudguard.
•
Remove brake caliper.
Removing fork stabilisor
•
Release brake distributor (1).
•
Disconnect ABS plug connection of sensor line
(2) under fuel tank.
•
Remove fork stabiliser.
•
Remove front wheel.
•
Remove handlebar with fittings.

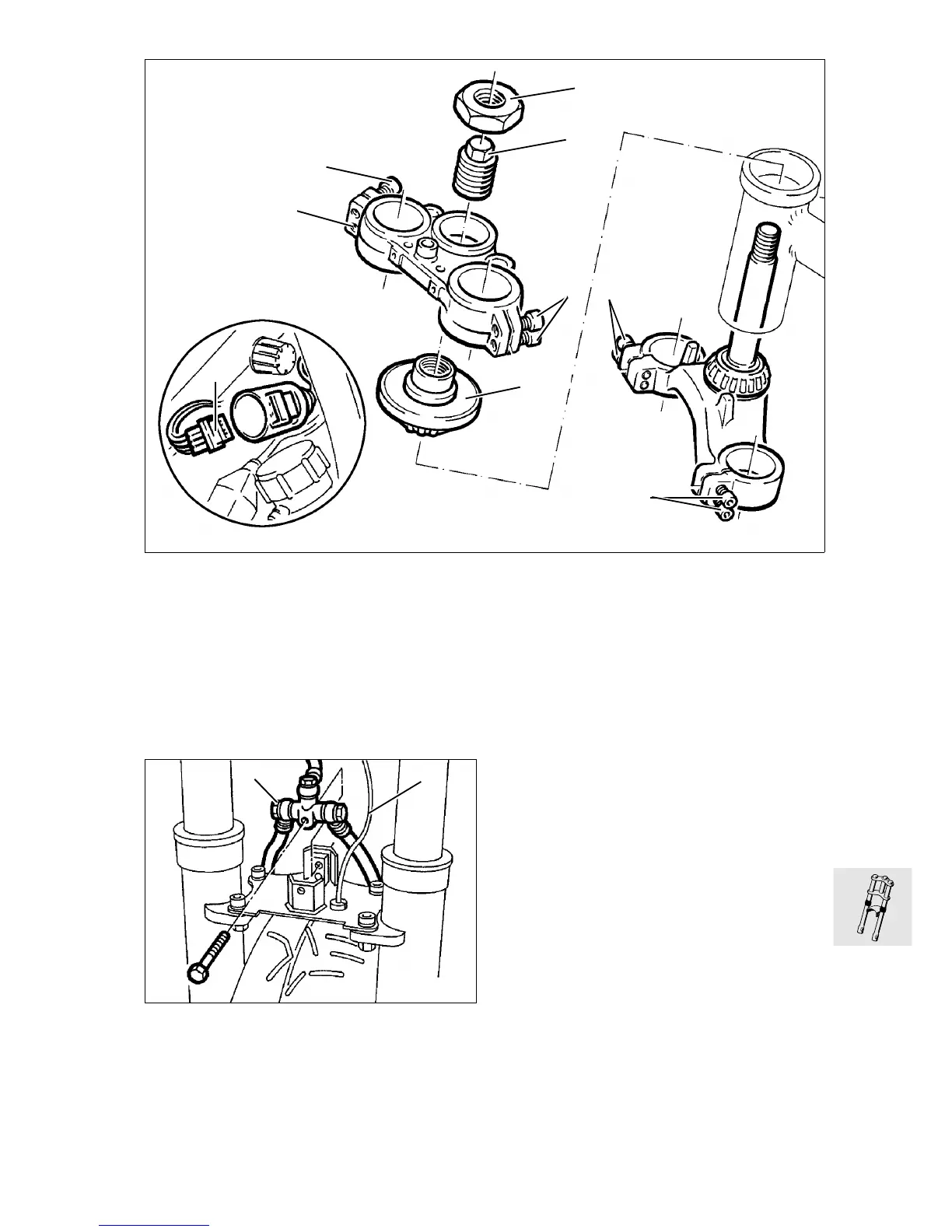

Removing telescopic fork without fork
bridge
•
Release clamping screws (1,2), pull down
telescopic fork and remove.
Removing telescopic fork with fork
bridge
Removing upper fork bridge
•
Release hexagon nut (4).
•
Release locking tube (5).
•
Disconnect plug connection for ignition lock (3).
•
Loosen clamping screws (1).
•
Remove fork bridge.
•
Remove setting ring (6).
•
Remove fork by pulling from below together with
light hammer blows (plastic-headed hammer) on
the steering tube.
LT310010
2
1
3
4
5
1
1
6
2
LT310020
2
1
