34.27
Removing and installing rear master
brake cylinder
•
Drain brake system.
e Caution:
Ensure brake fluid does not come in contact with
painted parts of the vehicle; brake fluid destroys the
paintwork.
•

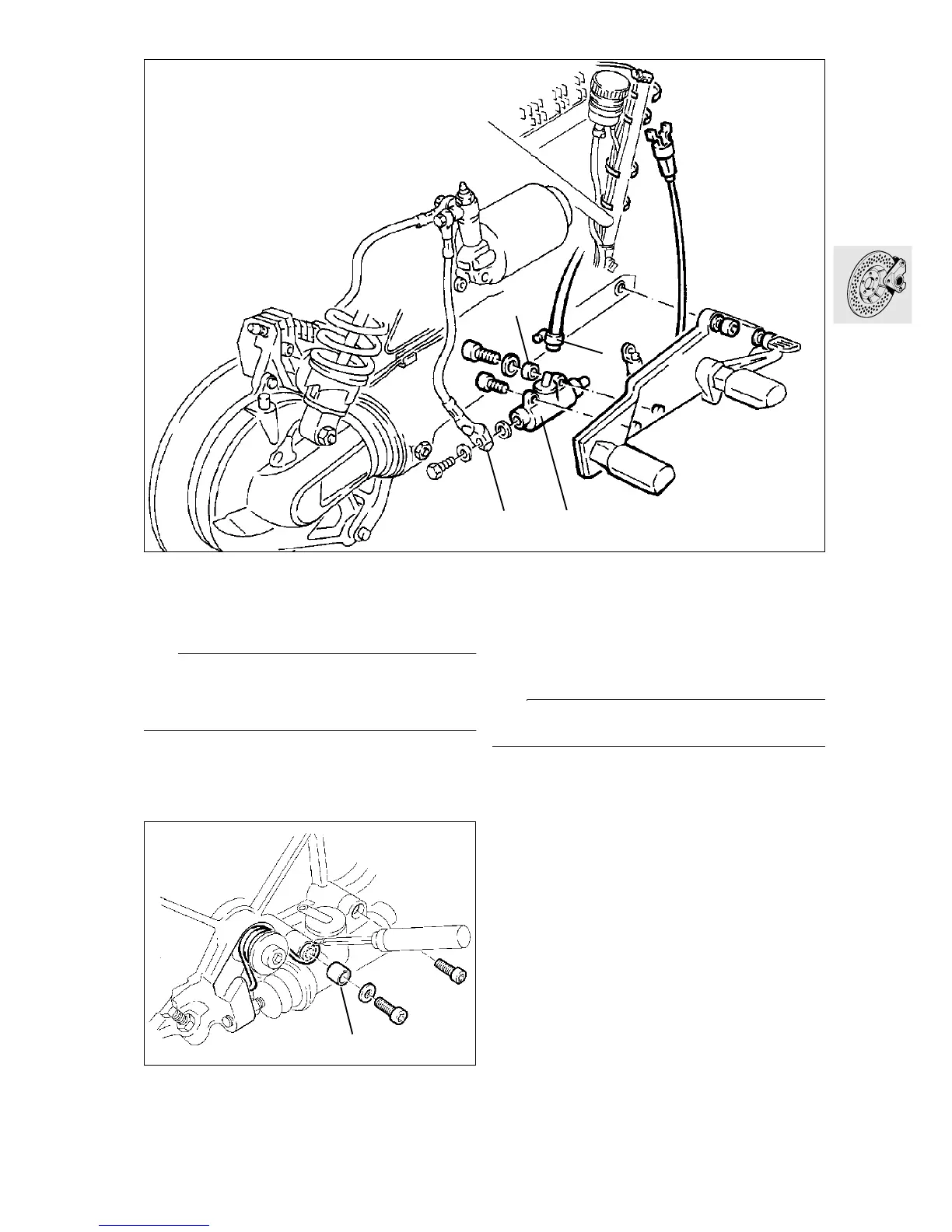

Release brake line (1) at master brake
cylinder (2).
•
Remove footrest plate.
•
Release master brake cylinder (2).
•
Note spacer sleeve (3); spring is under pressure.
•
Open clip (4) on the supply line, detach line.
•
Install in the reverse order of removal.
e Caution:
Carefully bleed brake system.
X Tightening torques:
Master brake cylinder..................................... 9 Nm
Brake line to master brake cylinder .............. 18 Nm
LT340180
1
2
3
4
LT340190
3
