21.9
Installing clutch
•
Grease all lubrication points with
Optimoly MP 3.
Lubrication points:
Contact surfaces of pressure plate/diaphragm
spring, wire ring, cone/tip of control rod.
L Note:
Install diaphragm spring (2) with the convex curve
facing towards the pressure plate (3).
•
Fit wire ring (1), and diaphragm spring?(2) in
clutch housing.
•
Fit pressure plate (3), driving disc (4) and housing
cover (5) in clutch housing.
e Caution:
Coloured marks on the clutch housing, pressure
plate and housing cover must be offset by 120°.

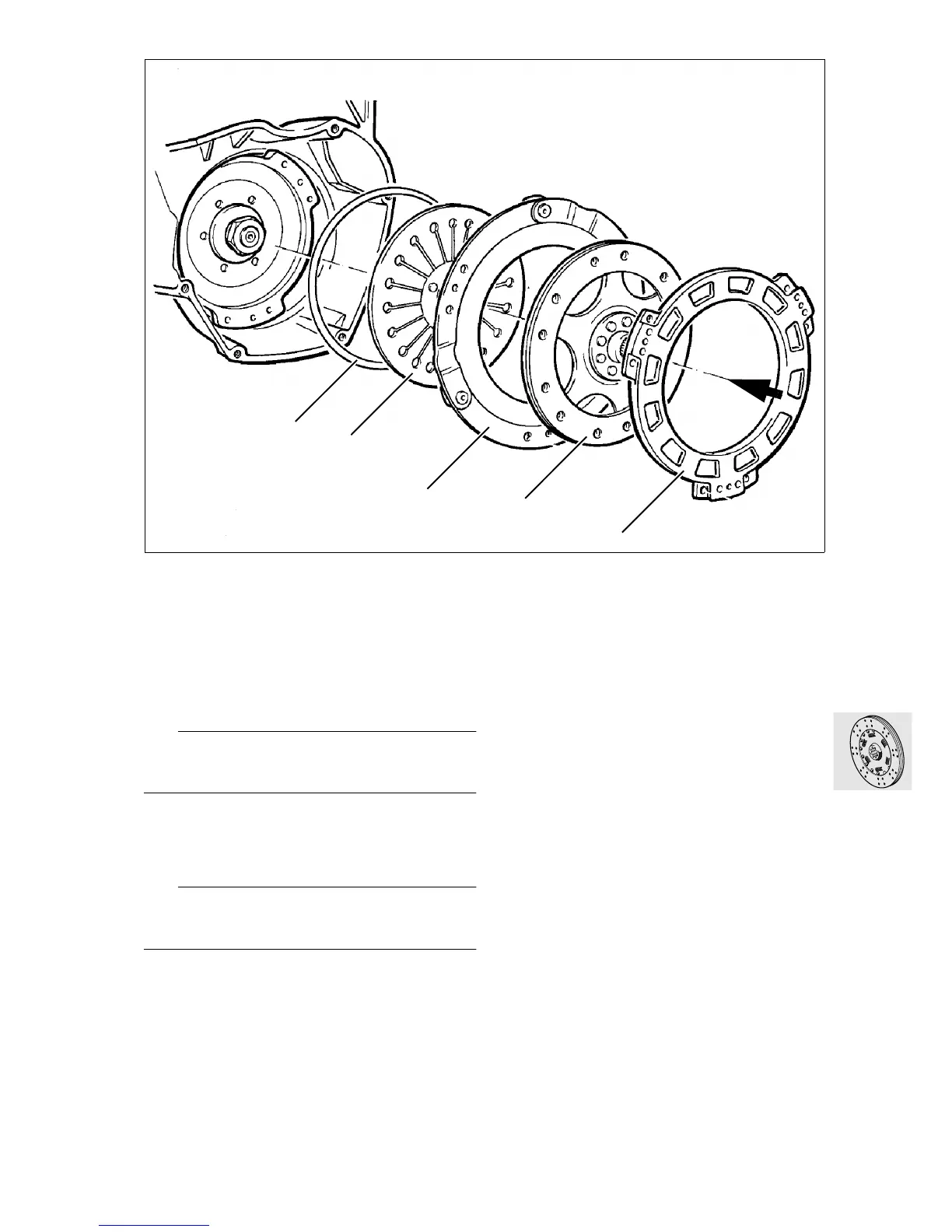

LT210010
1
4
5
2
3
