61.10

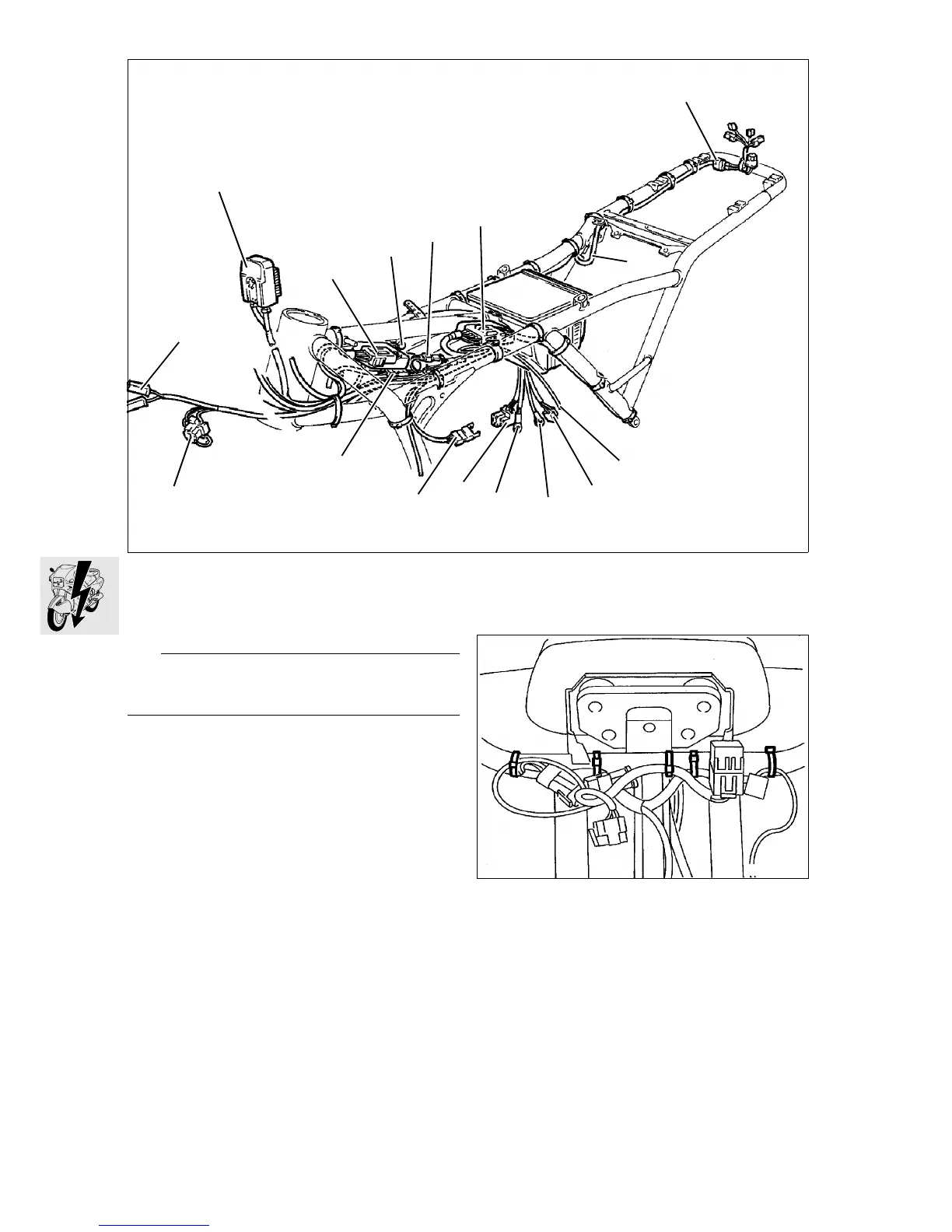

Locations, frame wiring loom
View from left
L Note:
When removing the wiring loom, also remove the
central electrical box together with the wiring loom.
1. Central earth (ground) at frame
2. Plug connection for tail light
3. Equalisation loop
4. Headlight connection
5. Parking light connection
6. Left multfunction switch connection
7. Alternator connection
8. Battery connection (positive)
9. Starter connection
10.Socket connection
11.Choke line
12.Plug connection, engine wiring loom
13.Auxiliary instrument connection
14.Fan plug connection
15.Clutch switch plug connection
16.Instrument cluster connection
Wiring arrangement, fairing bracket,
[LT]
LT610060
8
15
12
3
4
14
7
13
6
1
2
5
9
10
11
16
LT610070
