34.22
Removing and installing rear brake
caliper
•
Drain brake System.
•
Release bottom of suspension strut (1).
•
Detach suspensions strut from stud bolt.
•
Release brake line at brake caliper.
•
Disconnect ABS plug connection for sensor line.
•
Release brake caliper and carefully lift out.
•
Install in the reverse order of removal.
L Note:
Replace sealing rings of brake lines.
e Caution:
Ensure brake fluid does not come in contact with
painted parts of vehicle; brake fluid destroys the
paintwork.
Check ABS sensor spacing, if necessary readjust
with spacer plates.
Sensor spacing rear:
Up to 1996 MY .............................. 0.60 - 0.65 mm
................................................ (0.0236...0.0256 in)
From 1997 MY on .......................... 0.45 - 0.55 mm
................................................ (0.0177...0.0216 in)

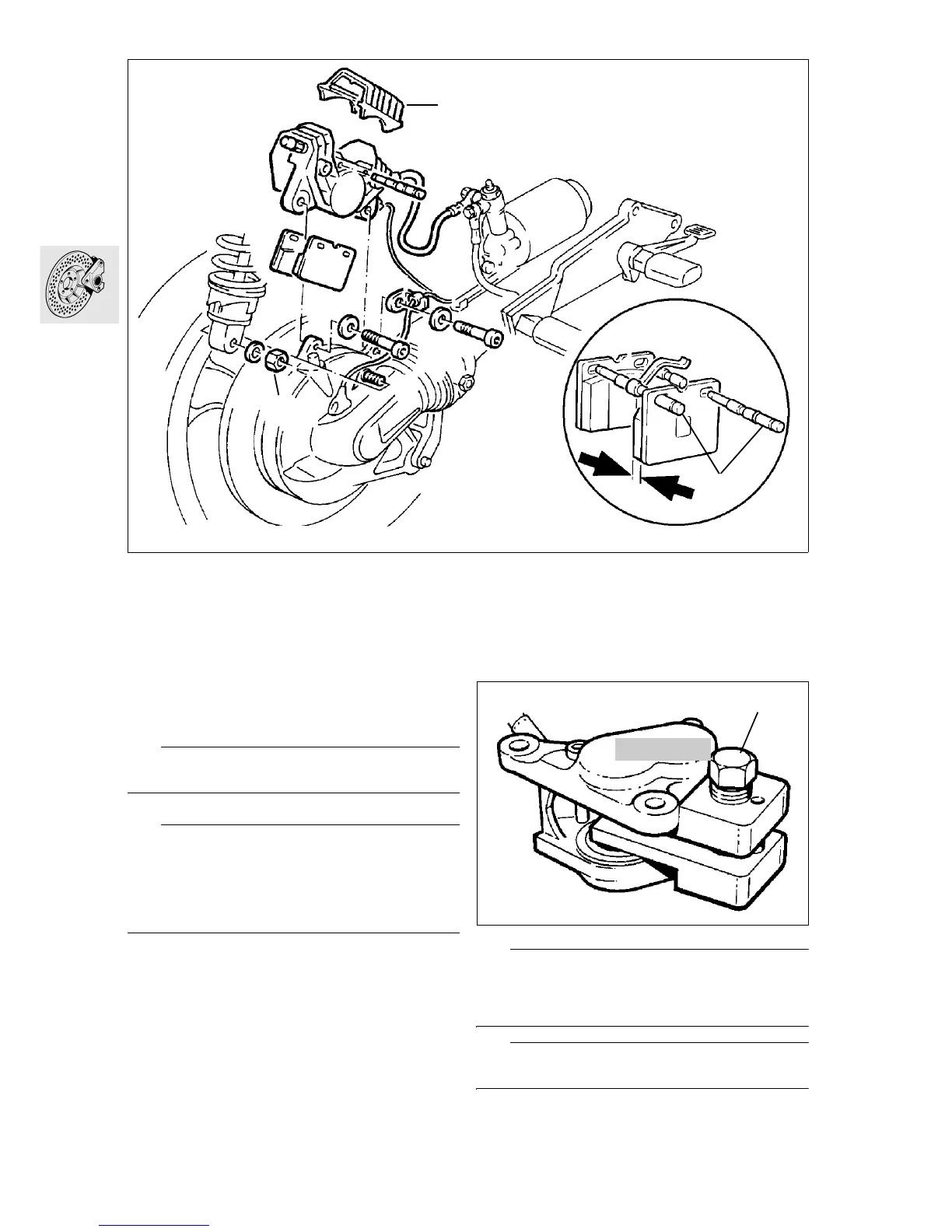

Removing and installing rear brake
pads
•
Remove cap (2).
•
With the aid of a drift, drive out retaining pins (3)
from the wheel side.
•
Remove brake pads by pulling upward.
•
Install in the reverse order of removal.
Minimum brake pad thickness ....................1.5 mm
L Note:
Before installing the new brake pads, press back
pinion in brake caliper with the aid of the piston re-
setting tool (4), BMWNo.341500.
e Caution:
Carefully bleed brake system!
LT340140
1
3
2
34 1 500
LT340040
4
