Dismantling and assembling freewheel

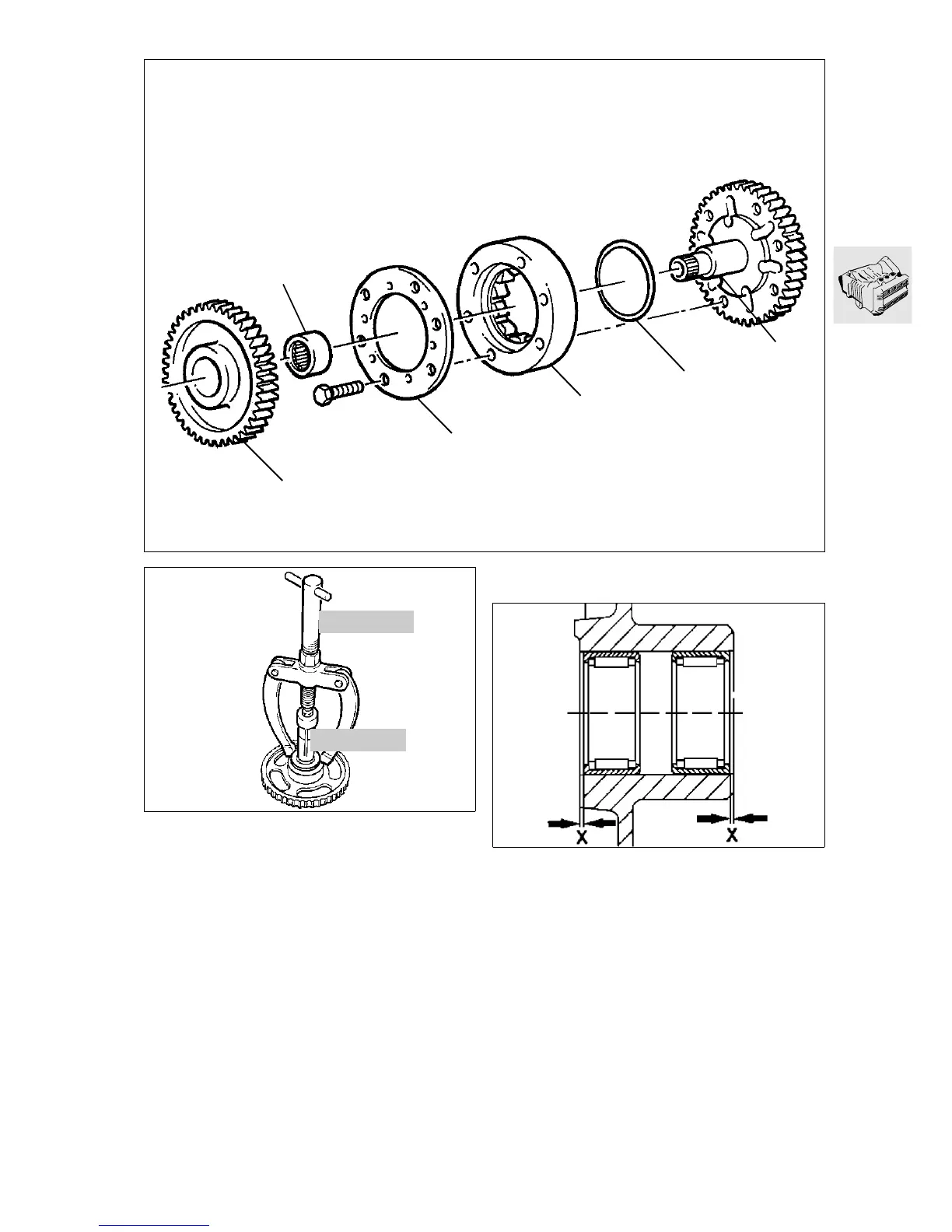

Stripping down freewheel
•
Pull freewheel gear (1) off layshaft (5).
•
Clamp the layshaft into a vice with soft jaws
(smooth side down).
•
Remove cover plate (2).
•
Pull off freewheel cage (3).
•
Take out cup spring (4).
•
Pull needle roller bearing (6) out of the freewheel
gear with counter-holder, BMW No. 00 8 570,
and internal puller 21/3, BMWNo.008574.
1
2
3
4
5
6
LT110160
LT110170
00 8 574
00 8 570
Assembling freewheel
•
Press the needle roller bearing into the freewheel
gear so that distance (x) is the same at both
sides.
Distance “X” .............. 0.4
± 0.2
mm (0.016
± 0.008
in)
LT110180
