11.32

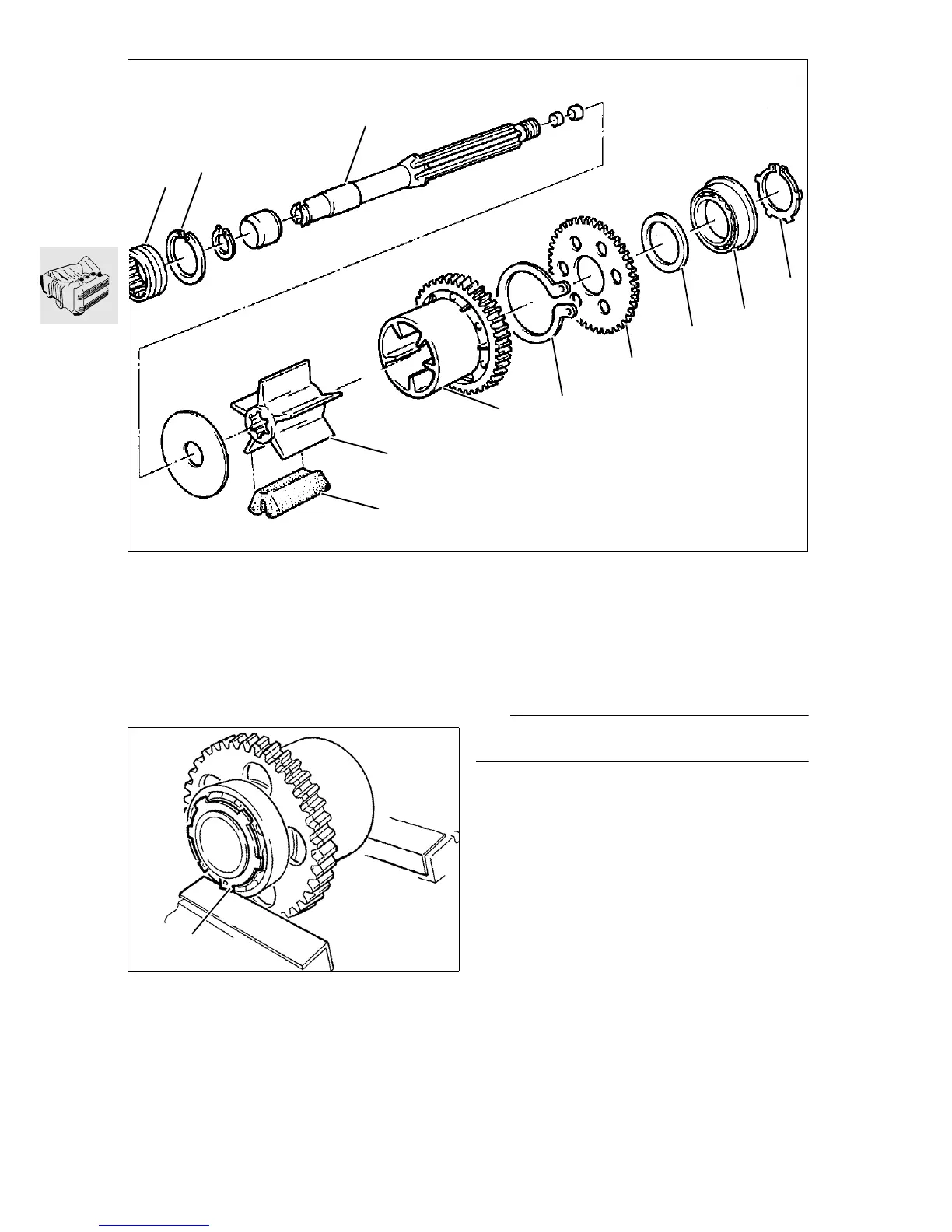

Stripping and assembling output shaft
Stripping down output shaft
•
Take off needle roller race (1) and circlip (2).
•
Pull output shaft (3) out of damper housing (4).
•
Drive the output shaft out of the inner section of
the damper (5) with a plastic-faced hammer.
Stripping down tensioning gear
•
Clamp the damper housing into a vise with soft
jaws, to take the load off circlip (7).
7
8
9
10
11
6
5
1
2
3
4
LT110450
7
LT110460
•
Remove circlip (7) with Seeger circlip pliers.
•
Using two-arm puller, BMW No. 00 8 400, and
thrust block, BMW No. 33 1 307, pull off ball
bearing (8).
•
Take off spacing ring (9).
•
Remove tensioning gear (10) with counter-hold-
er, BMWNo.124600.
•
Remove tensioning spring (11).
L Note:
Inspect all parts for damage or wear.
