21.14

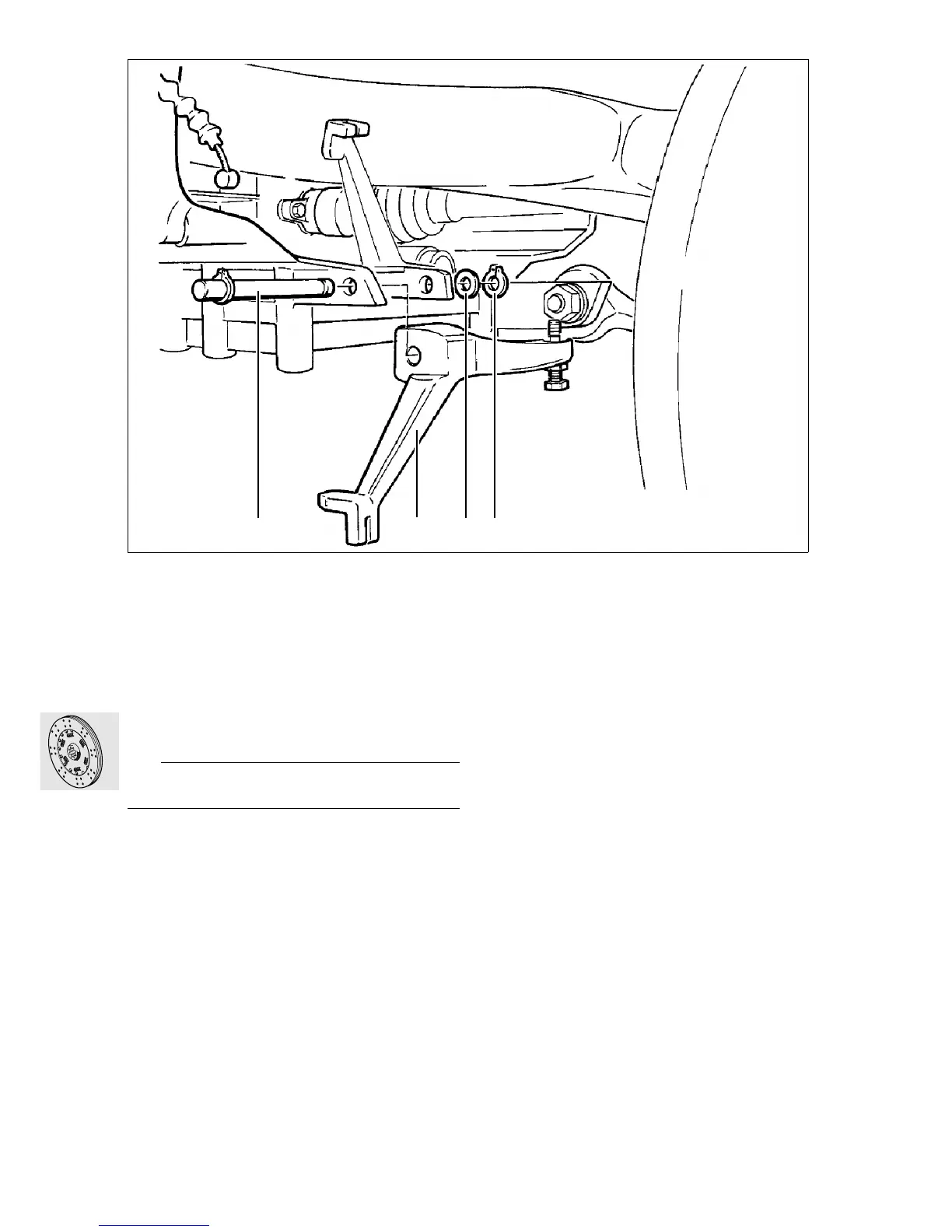

Removing and installing clutch
release lever
•
Remove exhaust system.
•
Detach clutch cable at clutch release lever.
•
Remove retaining ring (4) and washer (3) on
right-hand side.
•
Remove mounting pin (1) by pulling out to left.
•
Remove clutch release lever (2).
•
Install in the reverse order of removal.
L Note:
Check clutch clearance and adjust if necessary.
X Tightening torques:
Exhaust to cylinder head
.............................. 21 Nm
Exhaust holder to footrest plate.................... 33 Nm
Exhaust retaining bracket to gearbox .......... 41 Nm
Front silencer ............................................... 12 Nm
LT210120
1
3
4
2
