31.12
Disassembling fixed tube
•

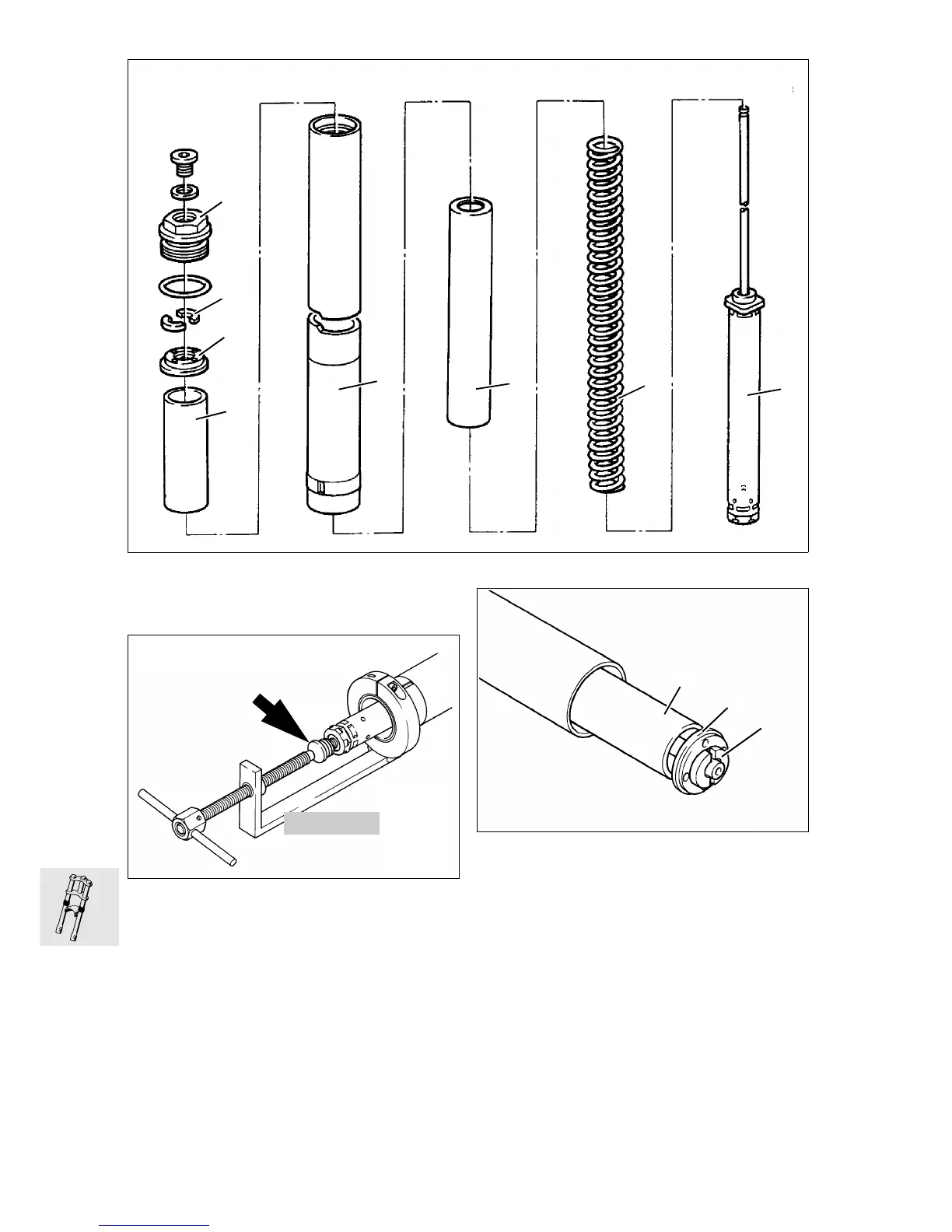

Loosen screw plug (1) in fixed tube.
•
Screw base screw fitting (arrow) loosely into
damper cartridge.
•
Lightly press damper cartridge into fixed tube
using clamping fixture, BMW No. 315550, and
clamping insert, BMW No. 31 5 553.
•
With the aid of a screwdriver, push apart retain-
ers (2) on the piston rod.
•
Remove perforated disc (3) and spacer (4).
•
Remove damper cartridge (5) with support spring
(6) and guide sleeve (7).
