34.18
[ABS II] Removing ABS unit
•
Remove the dualseat.
•
Remove the left and right battery trim panels.
•
Remove the Motronic control unit.
•
Remove the battery.
•
Remove the coolant level equalising tank.
•
Take off the lower section of the front mudguard.
•
Drain the front and rear brake circuits.
e Caution:
Escaping brake fluid causes damage to painted sur-
faces.
•

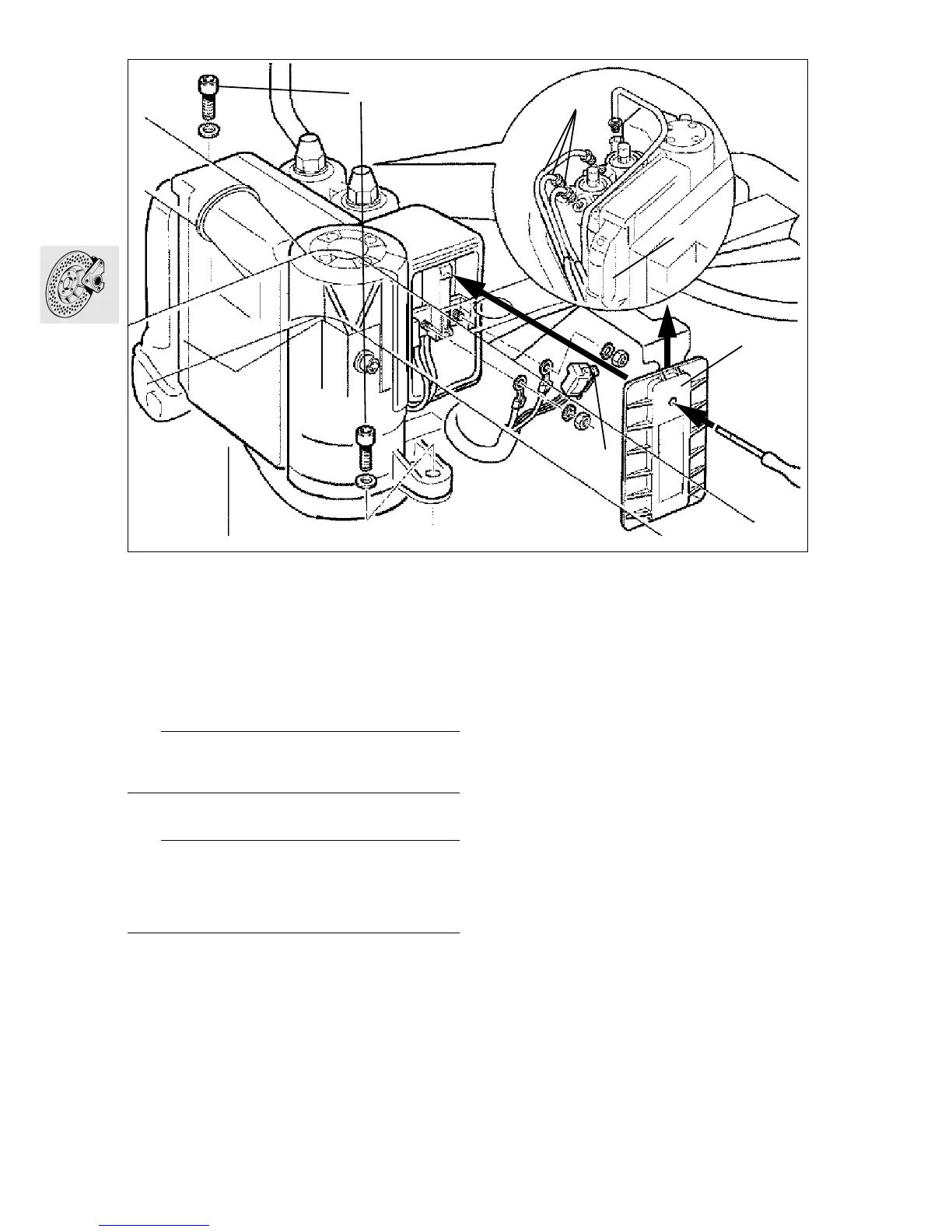

Detach ABS brake lines (1) from the ABS unit.
e Caution:
To avoid leaks caused by particles of dirt penetrat
ing the brake system, clean the hydraulic pump as
sembly and the brake lines before detaching them.
If appropriate, cover or seal the line unions.
•
Secure the front brake lever to the handlebar
with a rubber band (so that the fluid replenishing
bore is close).
•
Release cover (2) on the pressure modulator with
a suitable centre punche or screwdriver, and pull
off upwards.
•
Detach the lines.
•
Pull off 2-pin plug (4).
•
Pull off central plug (5).
•
Remove ABS unit (6).
LT340250
6
1
5
2
3
4
