BMW K 1100 LT/RS User Manual

23.27

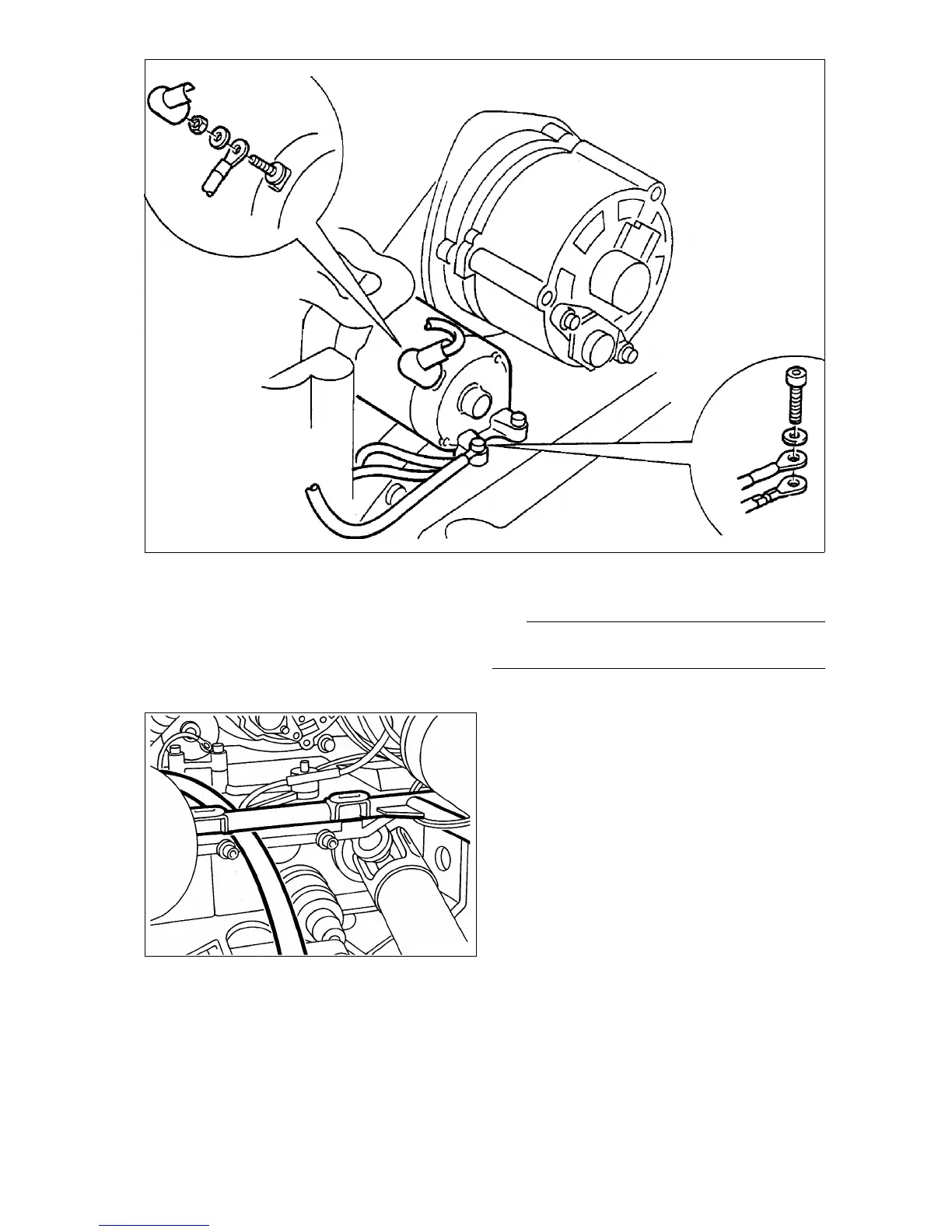

Installing starter
•
Connect positive and negative leads.
X Tightening torque:
Positive lead
.................................................. 5 Nm
Starter to transmission ................................... 9 Nm
•
[ABS I] Install support bracket for pressure mod-
ulators.
L Note:
Note arrangement of wiring loom.
LT230410
LT230510
