21.11

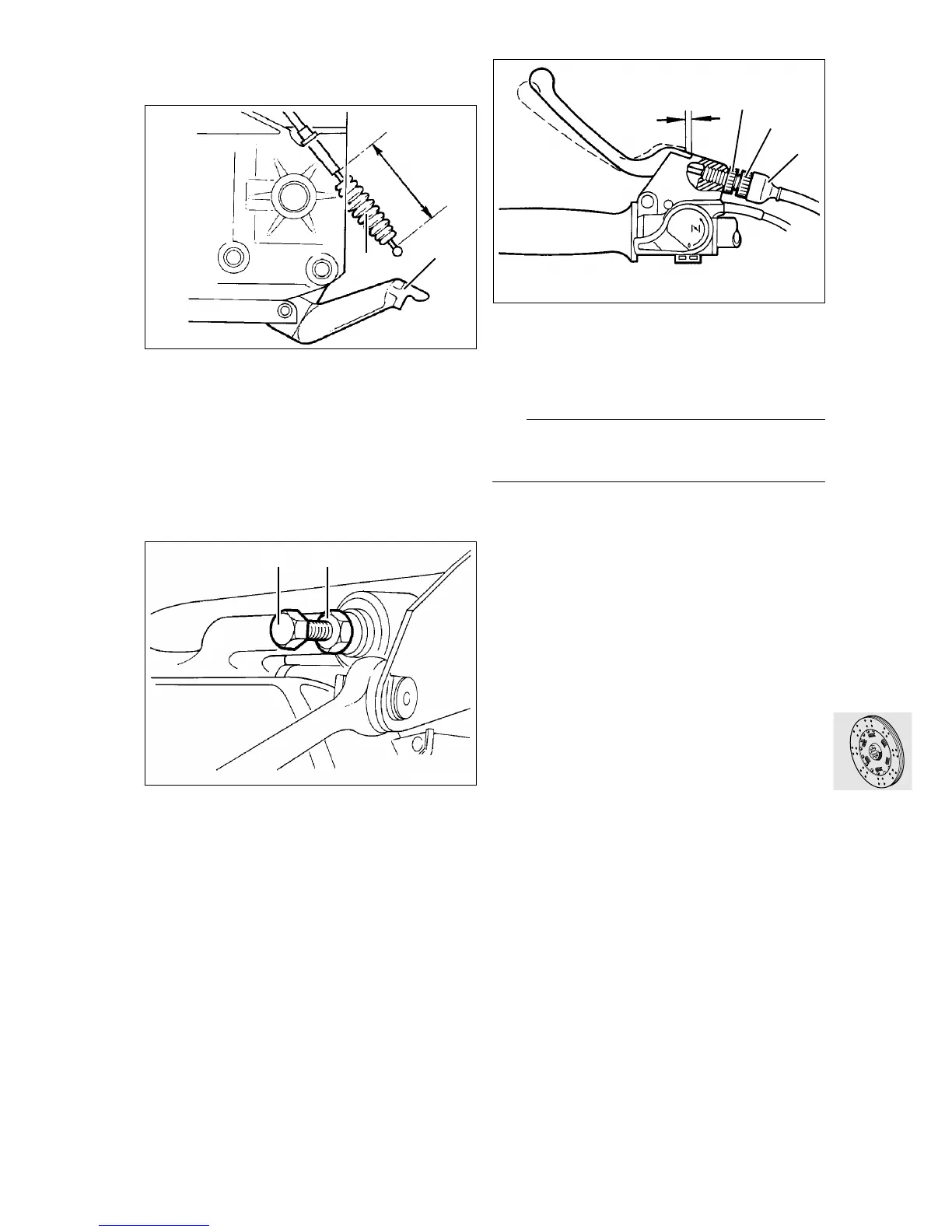

Adjusting clutch clearance
•
Detach clutch cable at the clutch release
lever (1).
•
Slightly pull back rubber gaiter (2).
•
With the aid of setting gauge,
BMW No. 21 3 500, set dimension “B” with ad-
justing screw at clutch hand lever.
Dimension “B” ... 75 ± 1 mm (2.95275 ± 0.03937 in)
•
Re-attach clutch cable at clutch release lever.
•
With the aid of box wrench, BMWNo.213610,
release locknut (6) of adjusting screw (7) on
clutch release lever.
•
Unscrew adjusting screw by one to two turns,
then screw in until pressure point can be felt.
•
Lock adjusting screw with locknut.
•
Set dimension “A” with adjusting screw at clutch
hand lever.
•
Lock adjusting screw (5) with knurled nut (3).
Dimension “A”.... 4 ± 0,5 mm (1.5748 ± 0.19685 in)
e Caution:
Take up subsequent wear only at the adjusting
screw on the clutch release lever.
LT210070
2
1
LT210090
7 6
LT210080
3
A
5
4
