16.7
Removing and installing fuel level
sensor
•
Removing and installing fuel level
sensor
•
Remove and empty fuel tank.
•
Remove filler neck.
•

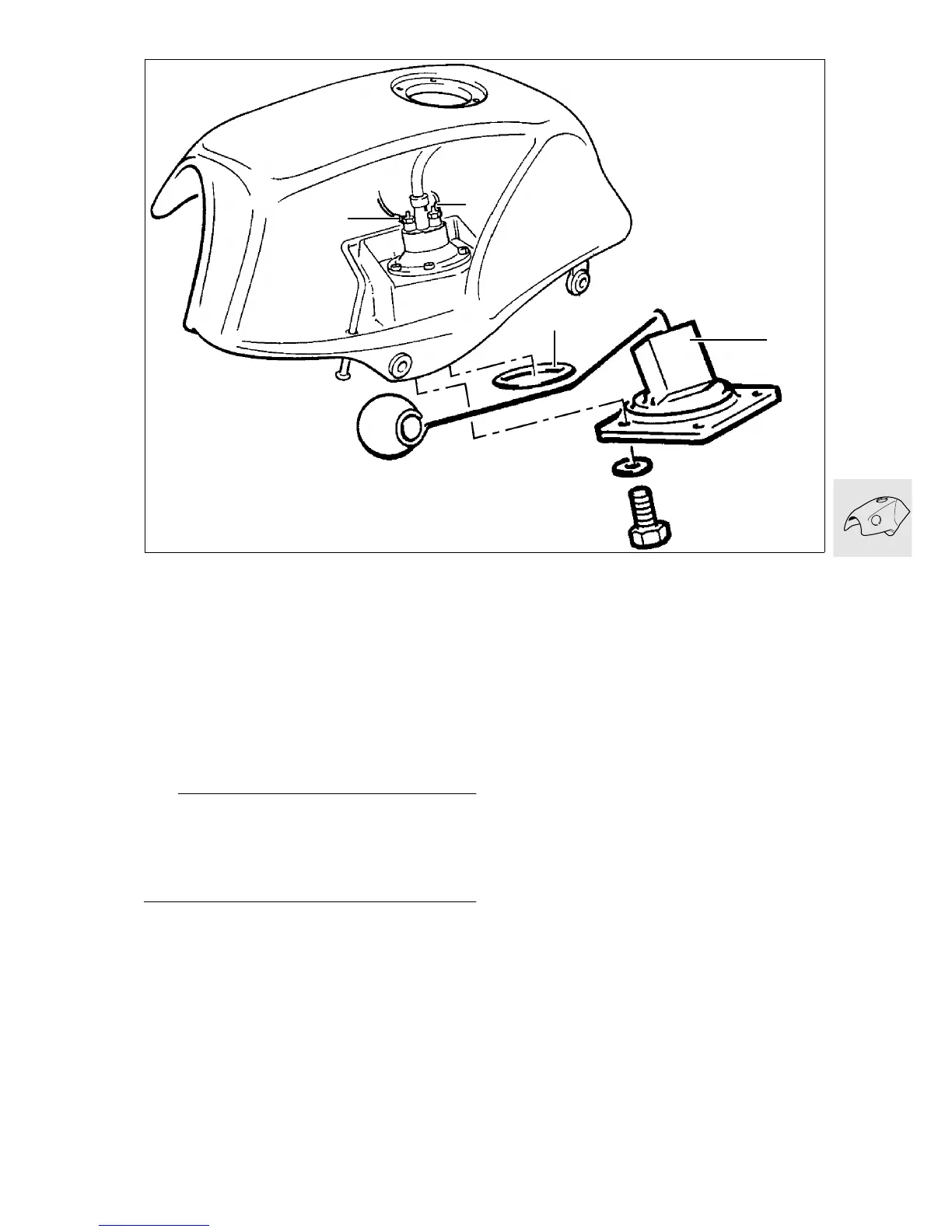

Release electrical connections (1/2) at the fuel
pump.
•
Pull back insulation a little and remove fuel level
pickup (3) from the outside.
•
Install in the reverse order of removal.
L Note:
Note installation location of gasket (4). Check that
the lever moves smoothly.
Electrical connections:
Yellow
= +, M 4 connection thread
Black = –, M 5 connection thread
LT160030
2
3
4
1
