34.12
Removing and installing front brake
line

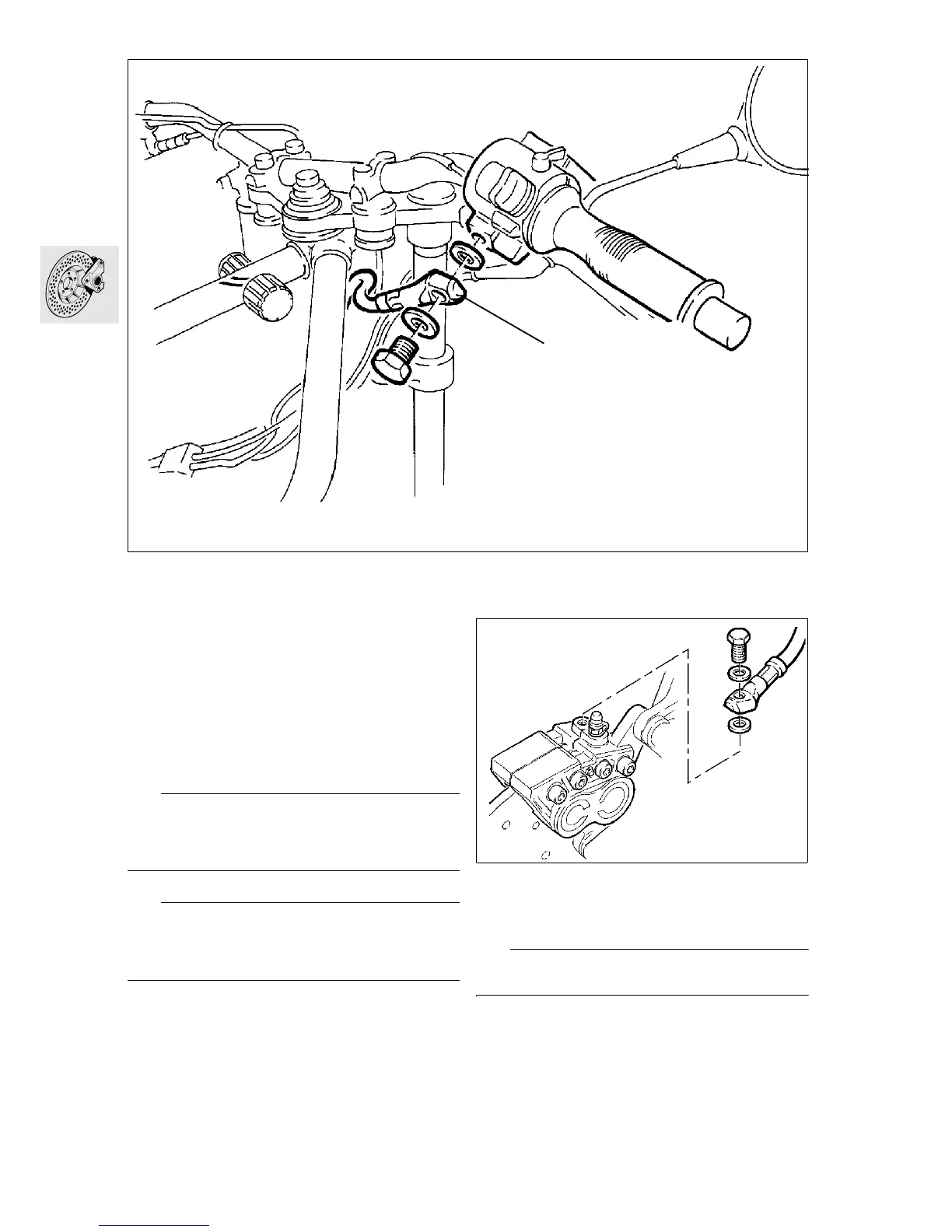

Removing upper brake line
•
Drain brake system.
•
Remove fuel tank.
•
Release brake line (1) at handbrake cylinder.
•
Remove cover for brake distributor on mud-
guard.
•
Release brake line at the distributor.
•
Install in the reverse order of removal.
L Note:
Secure brake line to handbrake cylinder such that it
does not chafe or kink when the handlebar is turned.
Replace sealing rings of brake lines.
e Caution:
Ensure brake fluid does not come in contact with
painted parts of the vehicle; brake fluid destroys the
paintwork.
Removing lower brake line
•
Remove rear section of mudguard.
•
Release brake line at distributor and at the brake
caliper.
•
Install in the reverse order of removal.
L Note:
Replace sealing rings of the brake lines.
•
Carefully bleed brake system.
X Tightening torques:
Brake line to handbrake cylinder .................. 18 Nm
Brake line to distributor................................ 18 Nm
Brake line to brake caliper............................ 18 Nm
Bleed screw................................................. 14 Nm
LT340090
1
LT340100
