34.30

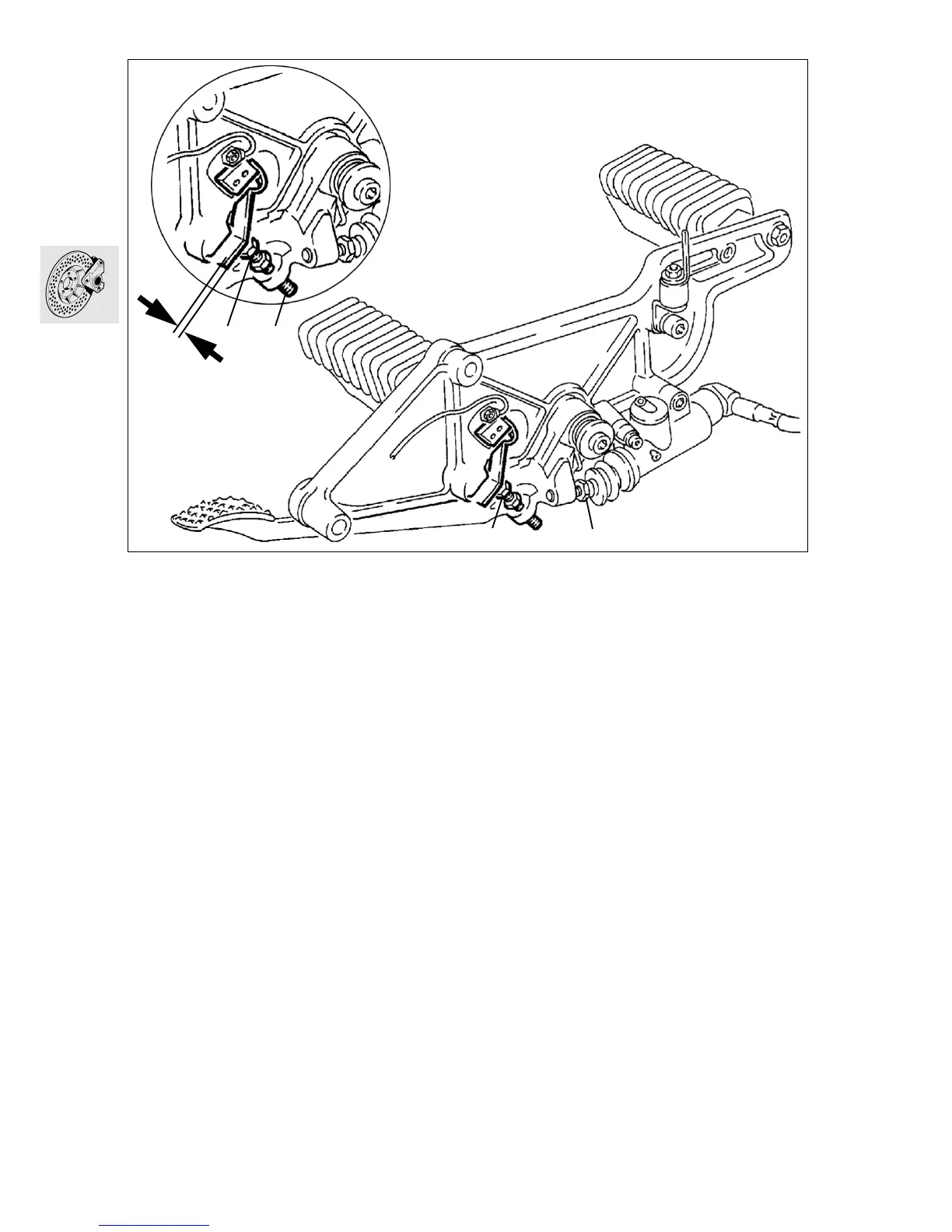

Adjusting foot brake pedal
•
Loosen locknut (1).
•
Perform basic setting with adjusting screw (2).
•
Adjust distance „A“ with feeler gauge.
Basic setting:
Distance „A“ ............................ 0.2 mm (0.00787 in)
•
Turn adjusting screw (3) on master brake cylinder
until slight resistance is felt when the foot brake
pedal is operated.
•
Firmly tighten locknut, and remove feeler gauge.
X Tightening torque:
Locknut,
adjusting screw on master brake cylinder ...... 6 Nm
LT340220
3
1
21
A
