34.23
Dismantling and assembling rear
brake caliper
Dismantling rear brake caliper
•
Remove keepers (1).
•
Drive out spring (2) and retaining pin (3).
•
Take out brake pads.
•
Seal the bleed screw.
X Tightening torque:
Bleed screw at brake caliper rear................. 11 Nm
•
Remove sealing rings (4) from left/right cylinder.
e Caution:
Keep fingers away from gap between pistons and
side contact face of brake pads; risk of injury!
If necessary press back with screwdriver carefully.
•
Hold a cloth over the brake caliper piston.
•
Carefully press out brake piston (6) with a com-
pressed air gun applied to the connecting bore;
work at low air pressure.
•
Remove sealing rings (5) from left/right cylinder
hole.
Assembling rear brake caliper
•
Coat the new sealing rings with brake fluid and
insert them into the left/right brake caliper cylin-
ders.
e Caution:
Do not tilt the brake pistons when installing.
•
Coat both brake caliper pistons with brake fluid
and install them.
L Note:
The installed position must be correct!
•
Insert brake pads and secure with retainers.

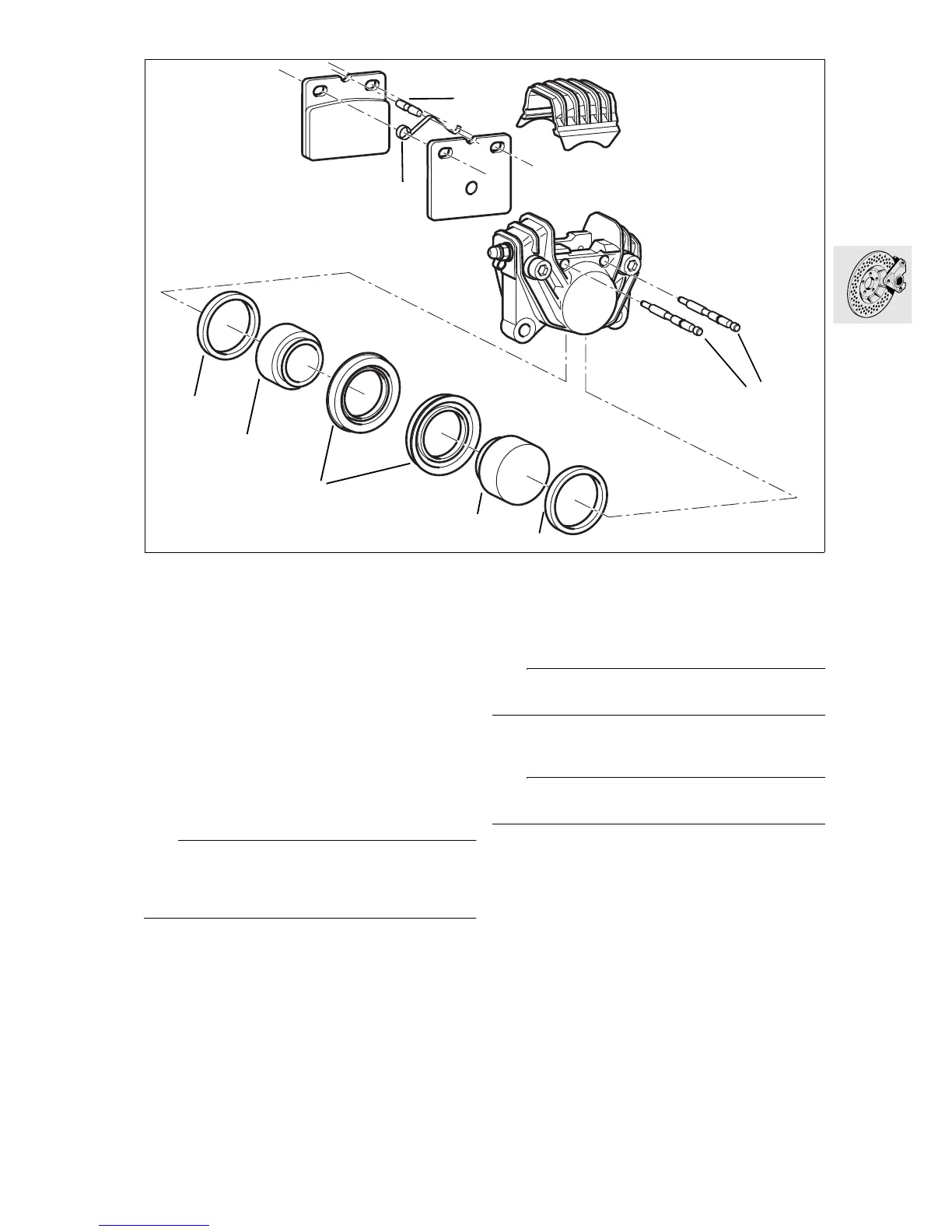

LT340290
2
1
3
4
6
6
5
5
