00.12

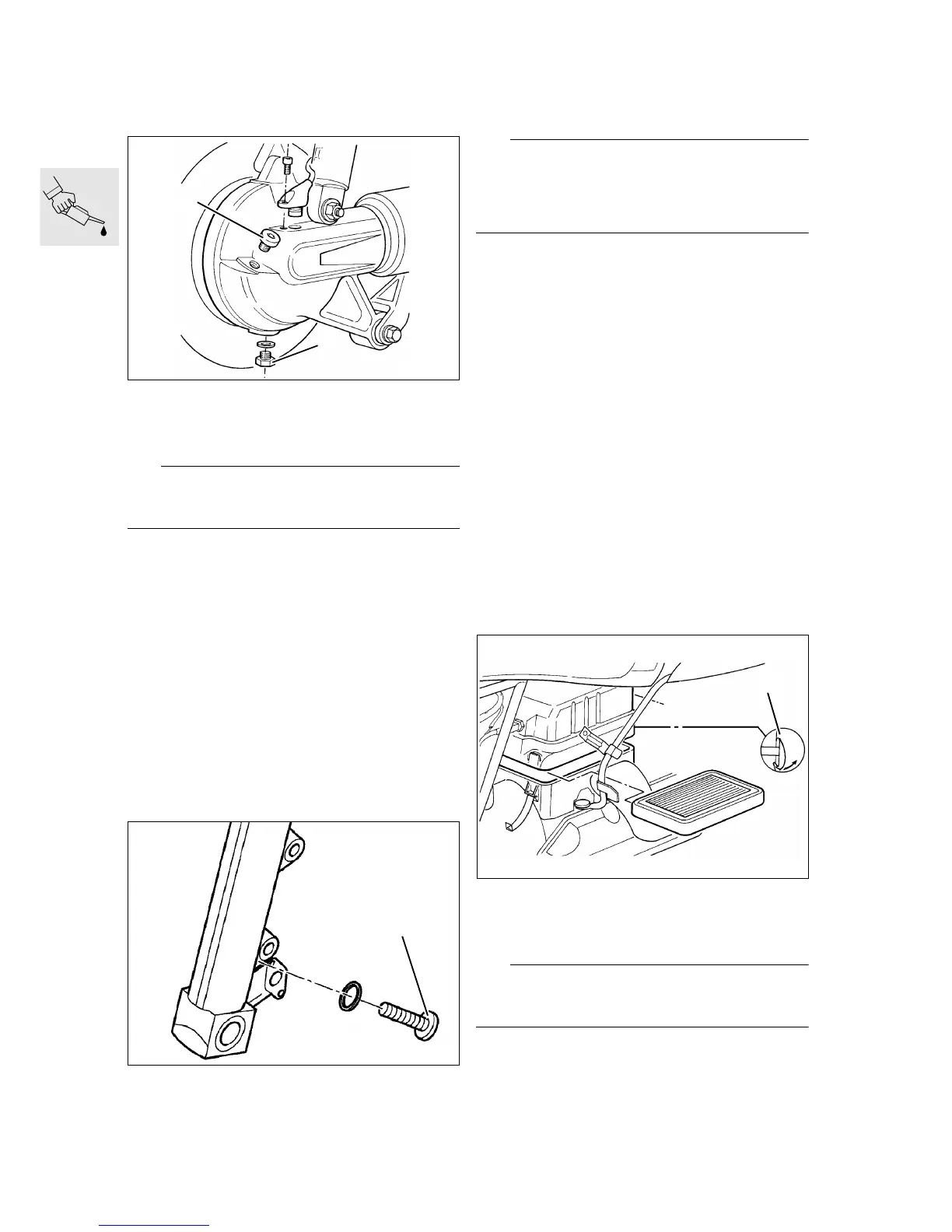

Changing oil in rear wheel drive
Inspections I, III, IV
•
Drain off oil with drive at operating temperature.
•
Oil drain plug (1)
•
Oil filler plug (2)
L Note:
Fill oil only up to the bottom-most thread turn of the
filler hole.
Oil content:
Initial filling ................................ 0.25 l (0.44 Imp.pt)
Oil changes............................. 0.35 l (0.616 Imp.pt)
See service data for oil grades ............... Page 00.3
X Tightening torques:
Oil filler plug ................................................ 23 Nm
Oil drain plug................................................ 23 Nm
Changing oil in telescopic fork
Inspection I, III, IV
•
Support motorcycle on stand.
•
Unscrew oil filler plugs.
•
Release left and right oil drain plug (1).
•
Pump out oil by compressing forks several times.
•
Screw in oil filler plugs.
•
Lift vehicle with lifting gear, BMW No. 00 1 510,
until the front wheel can move freely.
L Note:
The load on the front wheel must be relieved to en-
sure as much air as possible flows in before the
fixed tubes are closed off with the filler plugs so as
to provide additional damping.
•
Fill with specified quantity of oil.
•
Close off fixed tubes.
Quantities:
Oil capacity, left.................................... 0.35 - 0.01 l
............................................(0.616 -0.0176 Imp.pt)
Oil capacity, right................................. 0.40 – 0.01 l
...........................................(0.704 - 0.0176 Imp.pt)
See service data for oil grades................Page 00.3
X Tightening torque:
Oil filler plugs ............................................... 20 Nm
Renewing intake air cleaner
Inspection III
•
Detach battery panel on right.
•
Remove right knee pad.
•
Detach right side section of fairing.
•
[LT] Take off intake air pipe.
•
Release clips (1) at front and rear.
•
Slightly raise casing cover, lift out air cleaner.
•
Install in the reverse order of removal.
L Note:
Note installation position of air cleaner. Lettering at
rear, arrow marking “TOP-OBEN”.
LT000040
2
1
LT000050
1
LT000060
1
