17.7

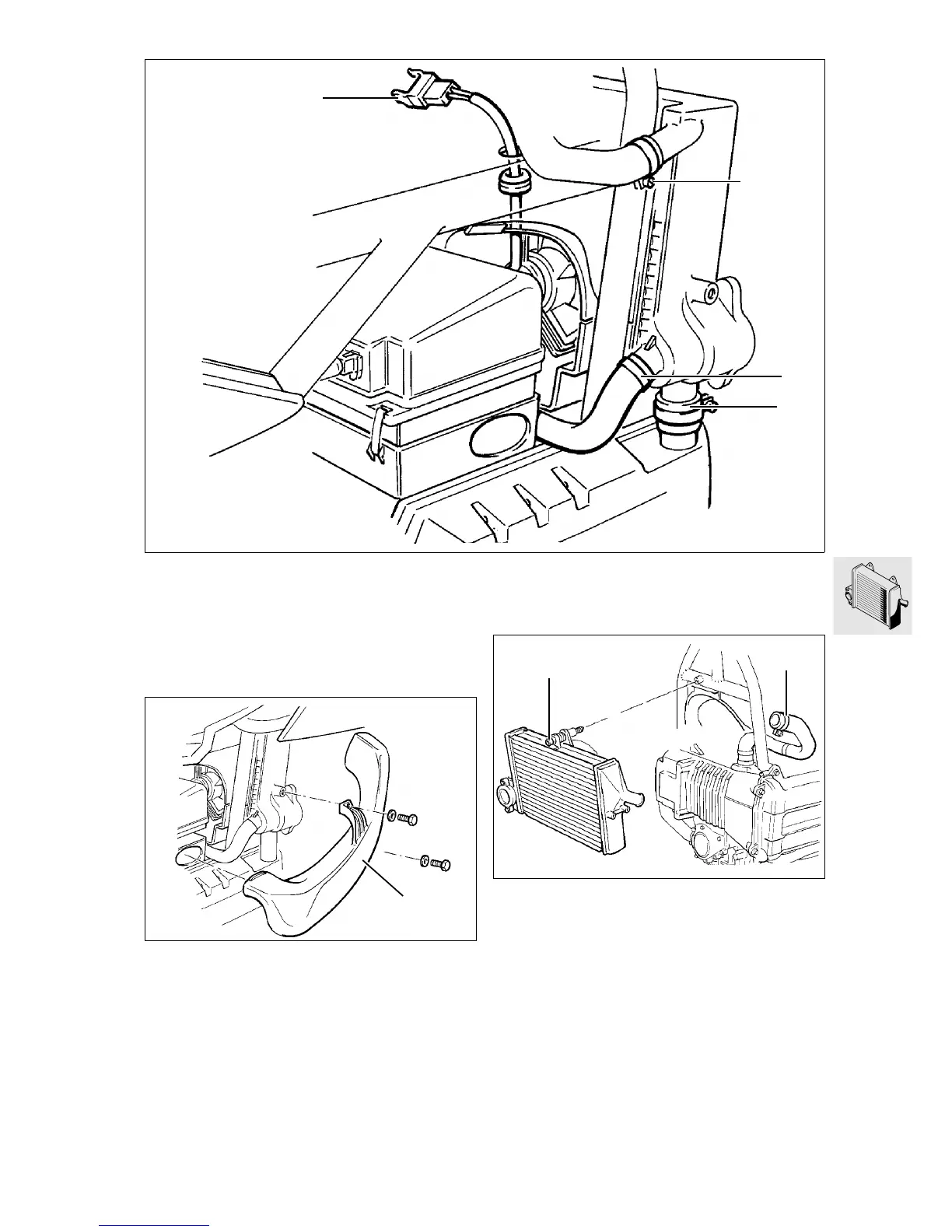

Removing and installing radiator
•
Remove fuel tank.
•
[RS] Remove bottom section of fairing
•
Remove left/right side fairing.
•
Remove radiator cowling.
•
Remove air line (1).
•
Release connections (2,3,4) of the coolant hos-
es.
•
Disconnect plug connection (5) for fan motor.
•
Release hose connection (6) and mounting (7) for
radiator.
•
Install in the reverse order of removal.
X Tightening torque:
Radiator
......................................................... 9 Nm
LT170040
5
4
3
2
LT170050
1
LT170060
7
6
