5.15 Menu 14: User PID controller
This menu contains a PID controller which has programmable reference and feedback inputs, programmable enable bit, reference slew rate limiting,
variable clamp levels and programmable destination. The sample rate of the PID controller is 4 ms.

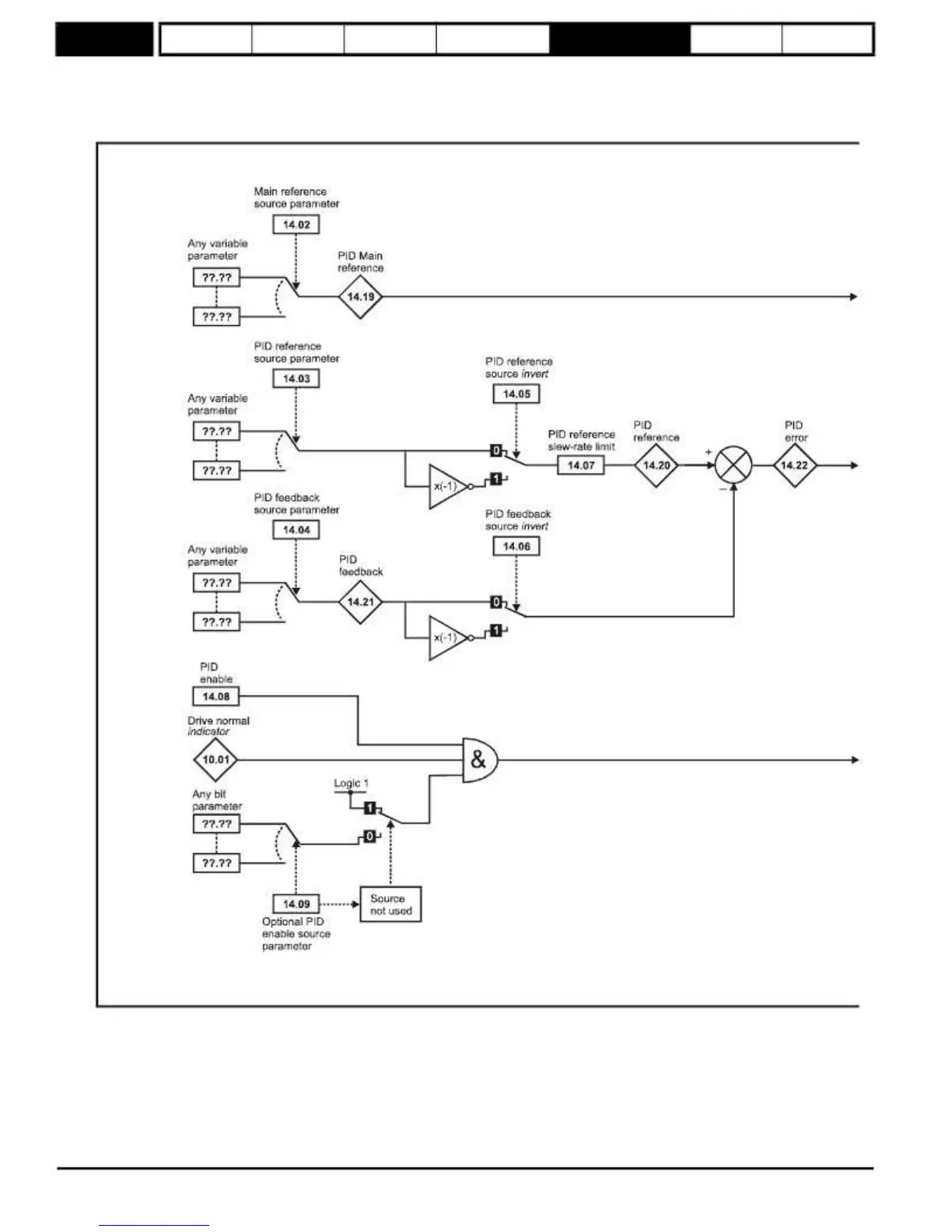

Figure 5-34 Menu 14 logic diagram
180 Mentor MP Advanced User Guide
www.onxcontrol.com Issue Number: 4
