Emerson Mentor MP User Manual

AO2
AO2
AO2
AO2
AI2
AI2
AI2
AI2
Parameter
x.00
Parameter
protocol
Performance
11
11
Menu 5
Parameter
structure
Keypad and
description format
Advanced parameter
descriptions
Serial comms

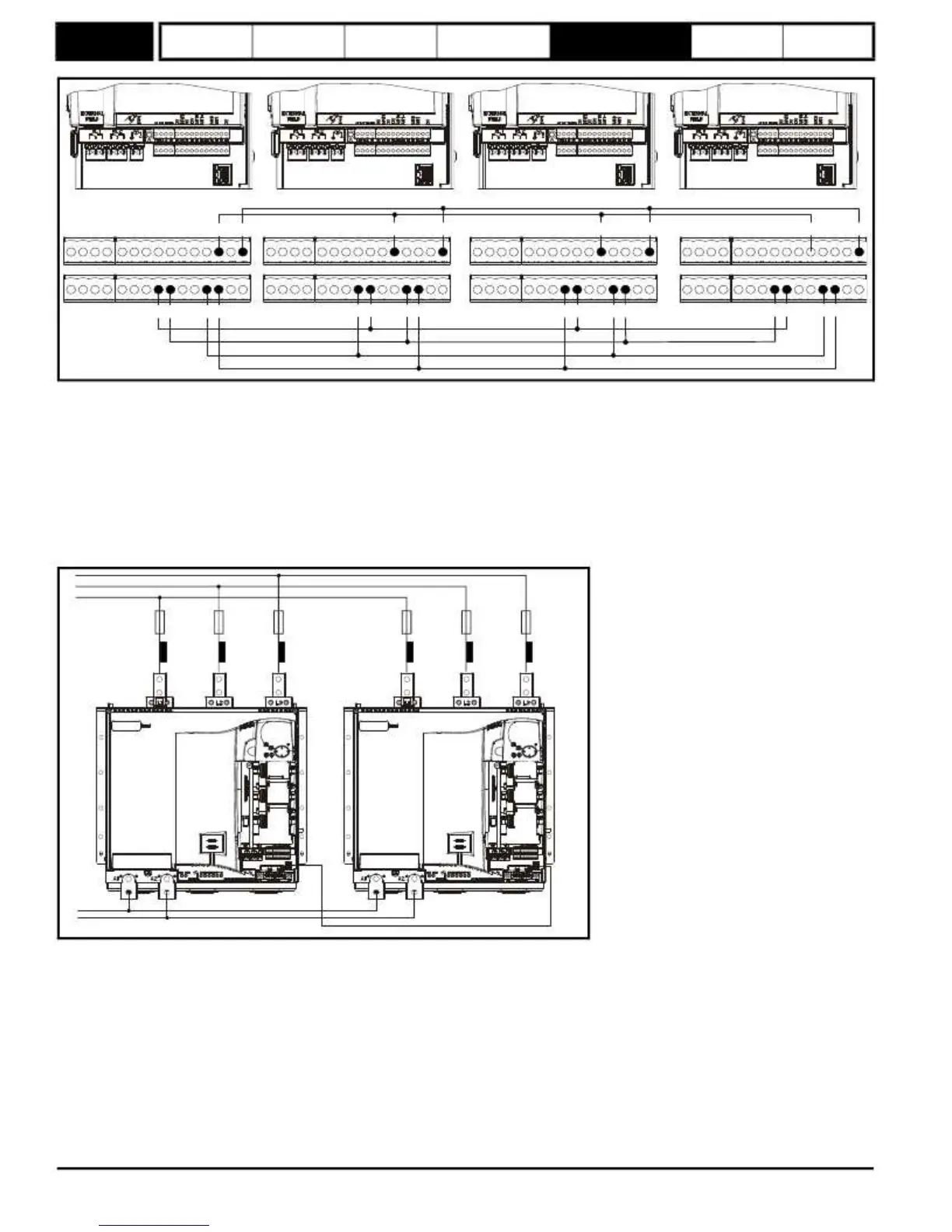

Figure 5-9 Master / Slave control connections for 24 pulse
Master drive Slave drive Slave drive Slave drive
1 9 1 7 1 7 11 1 7 11
21 2425 2829 31 21 2425 2829 31 21 2425 2829 21 2425 2829 31
Auto Tune procedure
1. Set Pr 5.25 = 1 on Slave drives.
2. Set Pr 5.12 = 1 on Master drive.
3. Enable the system. When auto tune has finished, transfer the values of Pr 5.15 , Pr 4.13 , Pr 4.14 and Pr 4.34 from the master to each of the slave
drives.
4. Re start auto tune by setting Pr 5.12 to 1 on the master drive only.
5. Enable the system.
6. When auto tune has finished, transfer the values of Pr 5.15 , Pr 4.13 , Pr 4.14 and Pr 4.34 from the master to the slave.
7. Set Pr 5.25 = 0 on Slave drives
Auto tune is now complete.
Figure 5-10 6 Pulse parallel operation 2 drives
L3
L2
L1
Fuses*
Choke / inductor
Master drive Slave drive
RJ 45
A1
A2
*For fuse information please refer to section 4.6 in the Mentor MP User Guide.
RJ 45
82 Mentor MP Advanced User Guide
www.onxcontrol.com Issue Number: 4
