Parameter
structure
Keypad and
format
Advanced
parameter
descriptions
Serial comms
5.22
Menu
23
Header
definitions
Menu 23 contains parameters that define the header parameter for Menu 0.
Menu 0 can be accessed by 2 methods:
1.
Pr
11.44
(
SE14,
0.35
) = 0. Sub block mode.
2.
Pr
11.44
(
SE14,
0.35
) <>0. Linear mode.
Menu
23
Menu
0
Customization
Menu 23 contains the parameters to allow menu 0 to be customized in sub block mode. The first sub block is a user defined area (USEr) which is
configured by the parameters in menu 22. The next 7 sub blocks are pre-defined. Access to the pre-defined blocks is enabled or disabled by Pr
23.03
to Pr
23.09
.
Movement between sub blocks is achieved with the left and right keys.
Pr
23.01
contains all the sub block headers.
Table 5-10 and Figure 5-35 show the result of the direction keys when Pr
11.44
(
SE14,
0.35
) is set to L1 (0). When Pr
11.44
(
SE14,
0.35
) is not 0 the
left and right keys will allow access to the advance parameter set and menu 0 will become a linear menu.
valid parameters in the block. When moving between pre-defined header blocks the pre defined header block is only displayed if the pre defined block
is enabled.
When moving between parameters within a block only valid parameters are displayed.

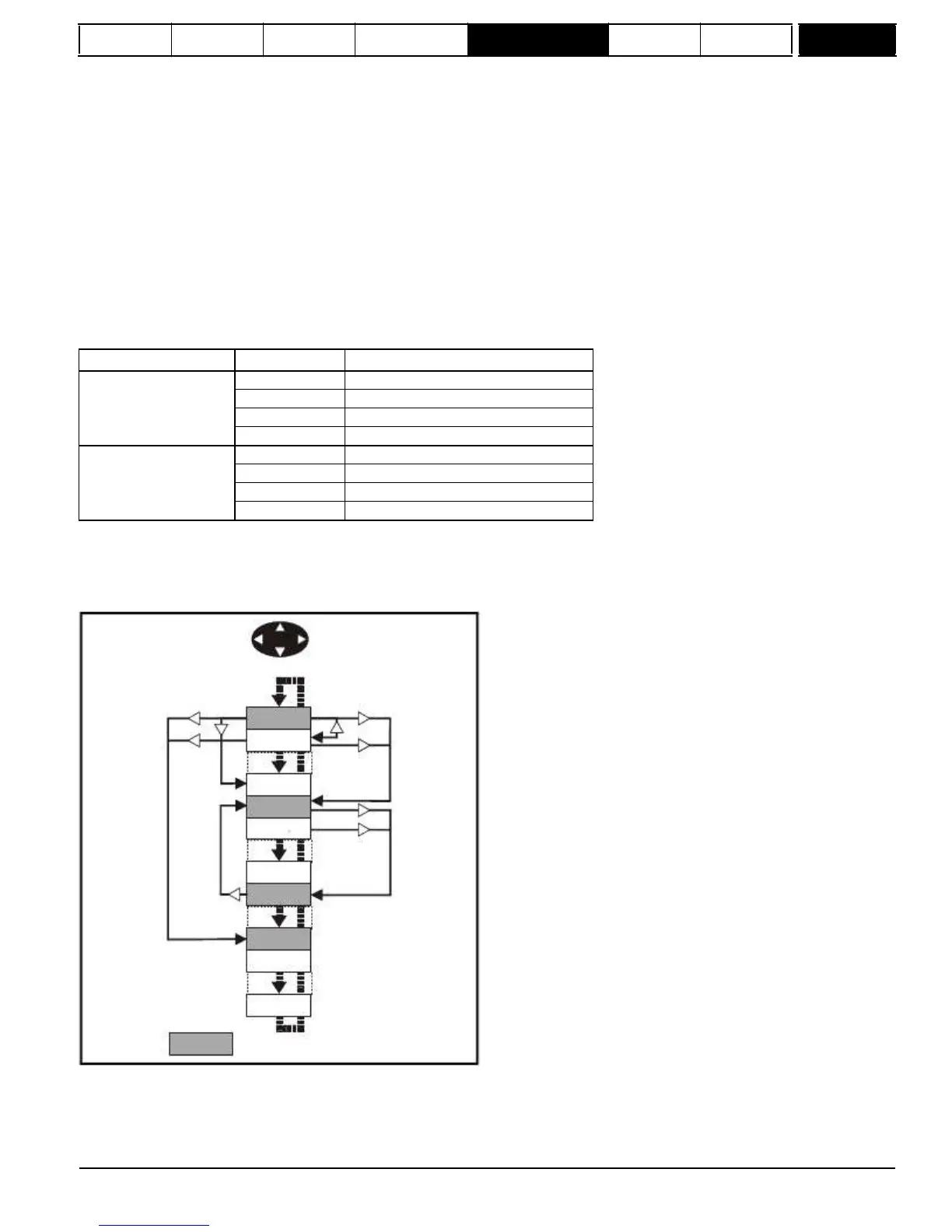

Figure
5-35
Sub
block
navigation
SEt
UP
SE00
SE13
diAGnoS
di01
di14
triPS
inPut
in01
in10
Headers
Mentor MP Advanced User Guide
199
Issue Number: 4
www.onxcontrol.com
