MARKER BEACON RECEIVER
NOTE: The marker beacon indicators operate independently of marker beacon audio and cannot be turned
off.
The marker beacon receiver is used as part of the ILS. The marker beacon receiver is always on and detects
any marker beacon signals within the reception range of the aircraft.
The receiver detects the three marker tones – outer, middle, and inner – and provides the marker beacon
annunciations located to the left of the Altimeter on the PFD.

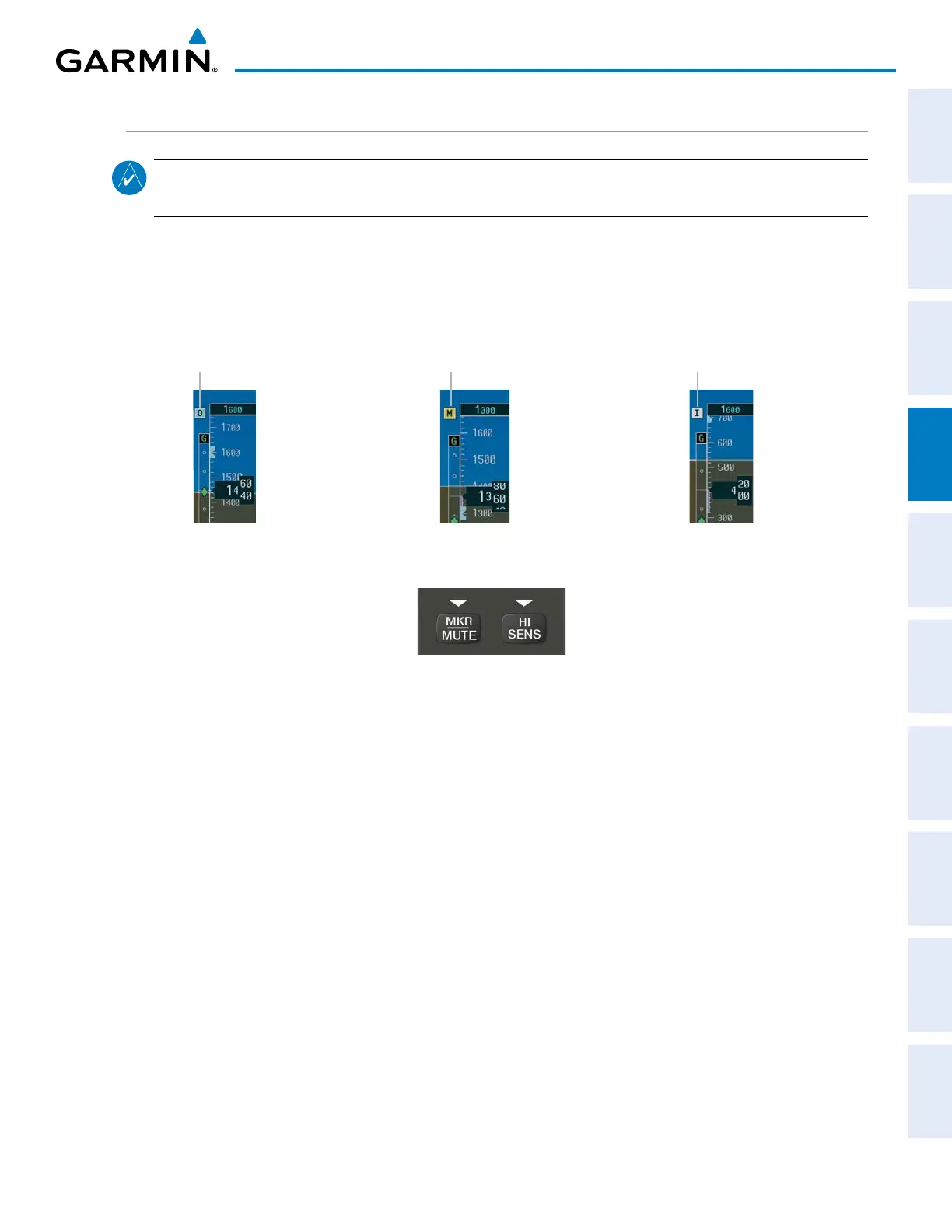

Figure 4-27 Marker Beacon Annunciations on the PFD
Outer Marker
Indication
Middle Marker
Indication
Inner Marker
Indication
Figure 4-28 Marker Beacon Keys
The Audio Panel provides three different states of marker beacon operation; On, Muted, and Deselected.
Pressing the MKR/MUTE Key selects and deselects marker beacon audio. The key annunciator indicates when
marker beacon audio is selected. Pressing the MKR/MUTE Key mutes the audio but does not affect the marker
annunciations (Figure 4-27).
Turning Marker Beacon Audio On
With the MKR/MUTE annunciator off, press the MKR/MUTE Key to enable marker beacon audio.
Muting Marker Beacon Audio
During marker beacon audio reception, press the MKR/MUTE Key to mute the audio. The MKR/MUTE
annunciator remains lit, but the current marker tone is silenced. Audio muting deactivates automatically and
marker beacon audio is heard when the next marker beacon signal is received.
Deselecting Marker Beacon Audio
To deselect marker beacon audio, press the MKR/MUTE Key twice during marker beacon reception (once to
mute, once more to deselect) or once if a marker beacon signal is not detected.
Pressing the HI SENS Key switches between high and low marker beacon receiver sensitivity. The HI SENS
function (annunciator illuminated) is used to provide an earlier indication when nearing a marker during an
approach. The LO SENS function (annunciator extinguished) results in a narrower marker dwell while over a
station.
