Vertical FD
Mode Armed

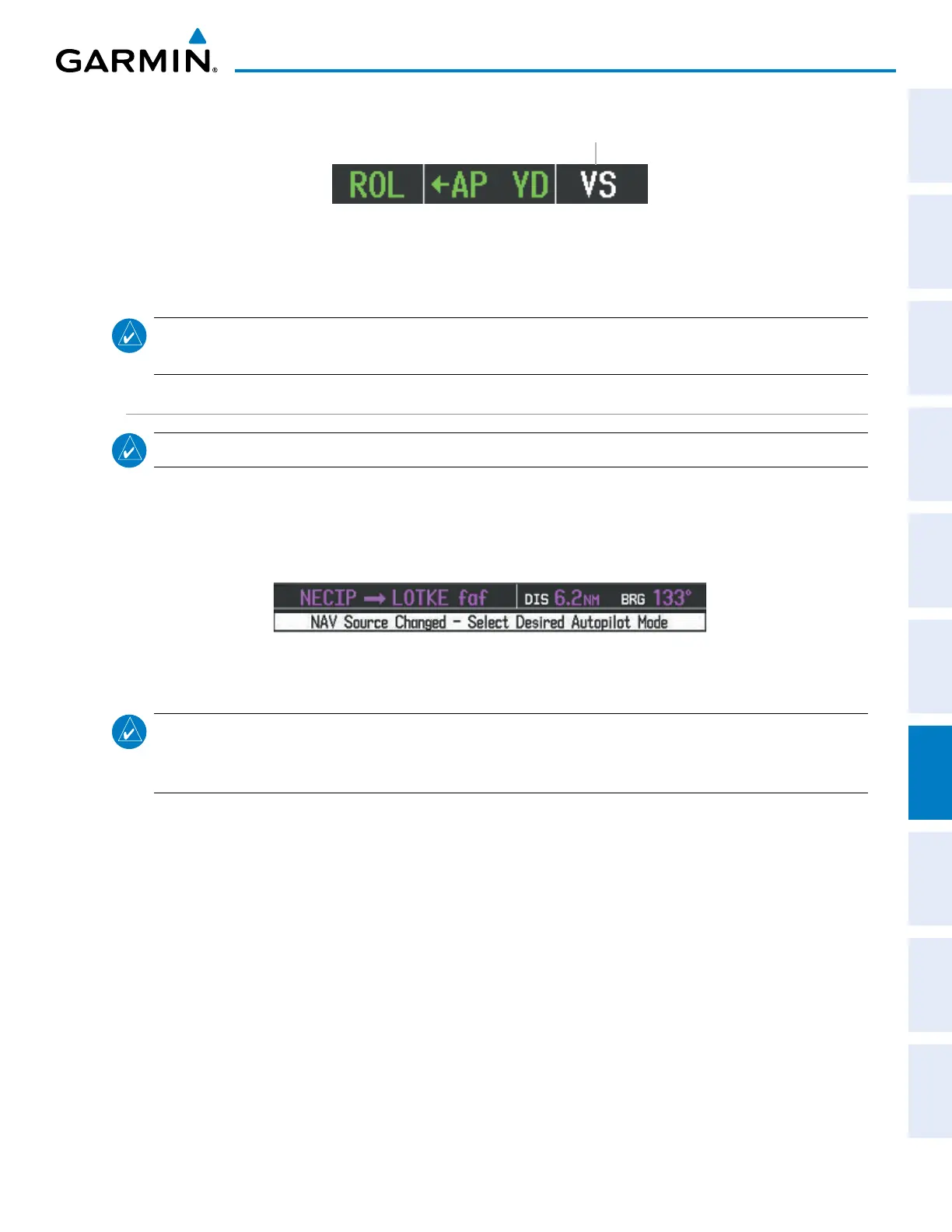

Figure 7-44 Vertical Flight Director Mode Armed
When sufficient power/thrust is available, the autopilot will recapture the previously selected vertical
reference and the flight director mode will change from armed to active.
NOTE: When the autopilot is outside normal operating limits, it uses more aggressive commands to return
to normal limits.
ANNUNCIATIONS FOR KAP 140 AUTOPILOT SYSTEM
NOTE: Refer to the autopilot manufacturer’s Pilot’s Guide for more information.
When GPS approach mode becomes active and the necessary approach criteria are met, a message appears
in the AFCS Status Box alerting the pilot to a change in autopilot NAV source (“NAV Source Changed – Select
Desired Autopilot Mode”). The annunciation shall blink for five seconds and remain in the AFCS Status Box
for 30 seconds.
Figure 7-45 KAP 140 Annunciation (Informative)
NOTE : KAP 140 equipped aircraft only: Each time the CDI Softkey is pressed or the navigation source
is changed (i.e. missed approach), the following message appears in the message window, “NAV Source
Changed – Select Desired Autopilot Mode.”
