APPENDIX A
ANNUNCIATIONS AND ALERTS
NOTE:
The Airplane Flight Manual (AFM) supersedes information found in this document.
The G1000 Alerting System conveys alerts using the following:
• Annunciation Window: The Annunciation Window displays abbreviated annunciation text. Text color is
based on alert levels described in the following section. The Annunciation Window is located to the right
of the Altimeter and Vertical Speed Indicator. All aircraft annunciations can be displayed simultaneously
in the Annunciation Window. A white horizontal line separates annunciations that are acknowledged from
annunciations that are not yet acknowledged. Higher priority annunciations are displayed towards the top of
the window.
• Alerts Window: The Alerts Window displays text messages for up to 64 prioritized alert messages. Pressing
the ALERTS Softkey displays the Alerts Window. Pressing the ALERTS Softkey a second time removes the
Alerts Window from the display. When the Alerts Window is displayed, the FMS Knob can be used to scroll
through the alert message list.
• Softkey Annunciation: During certain alerts, the ALERTS Softkey may appear as a flashing annunciation
to accompany an alert. The ALERTS Softkey assumes a new label consistent with the alert level (WARNING,
CAUTION, or ADVISORY). By selecting the softkey when flashing an annunciation, the alert is acknowledged.
The softkey label then returns to ALERTS. If alerts are still present, the ALERTS label is displayed in white
with black text. Selecting the ALERTS Softkey a second time views the alert text messages.
• System Annunciations: Typically, a large red ‘X’ appears over instruments whose information is supplied by
a failed Line Replaceable Unit (LRU). See the G1000 System Annunciations Section for more information.

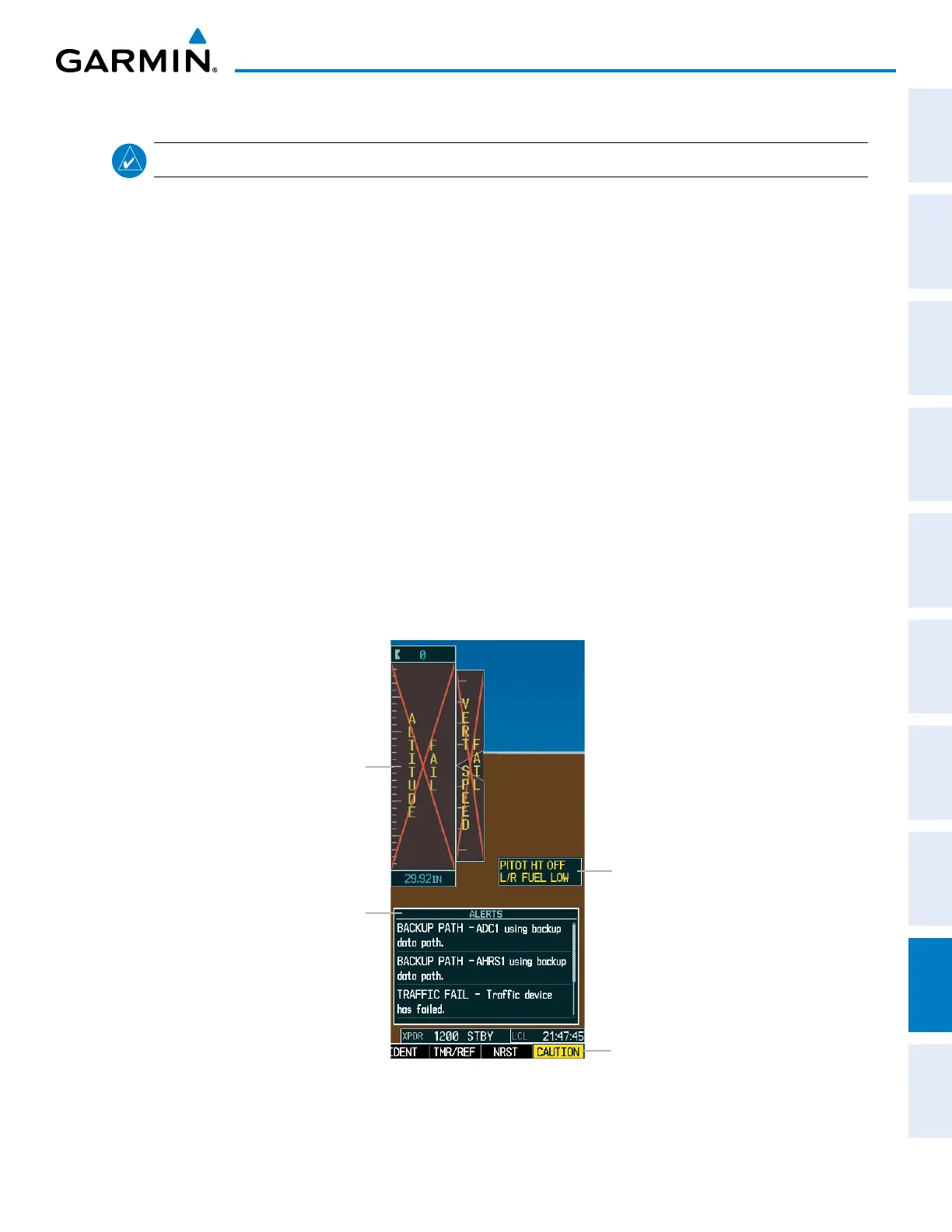

Figure A-1 G1000 Alerting System
Annunciation
Window
Alerts
Window
Softkey
Annunciation
System
Annunciation
Red ‘X’
