Garmin Connext
Weather Product
Symbol
Expiration Time
(Minutes)
Refresh Rate
(Minutes)
Radar Precipitation
(PRECIP)
30
U.S.: 3*
Canada: 3*
†
Europe: 15
Australia: 15ˆ
Infrared Satellite
(IR SAT)
60 30
Data Link Lightning
(DL LTNG)
30 Continuous
SIGMETs/AIRMETs
(SIG/AIR)
60 Continuous
Meteorological Aerodrome
Report
(METARs)
90 Continuous
Winds Aloft
(WIND)
90 Continuous
Pilot Weather Report
(PIREPs)
90 Continuous
Temporary Flight
Restrictions
(TFRs)
no product image 60 Continuous
Terminal Aerodrome
Forecasts
(TAFs)
no product image 60 Continuous
* The composite precipitation image is updated every 3 minutes, but individual radar sites
may take between 3 and 10 minutes to provide new data.
†
Canadian radar precipitation data provided by Environment Canada.
ˆ Australian radar precipitation data provided by the Australian Bureau of Meteorology.

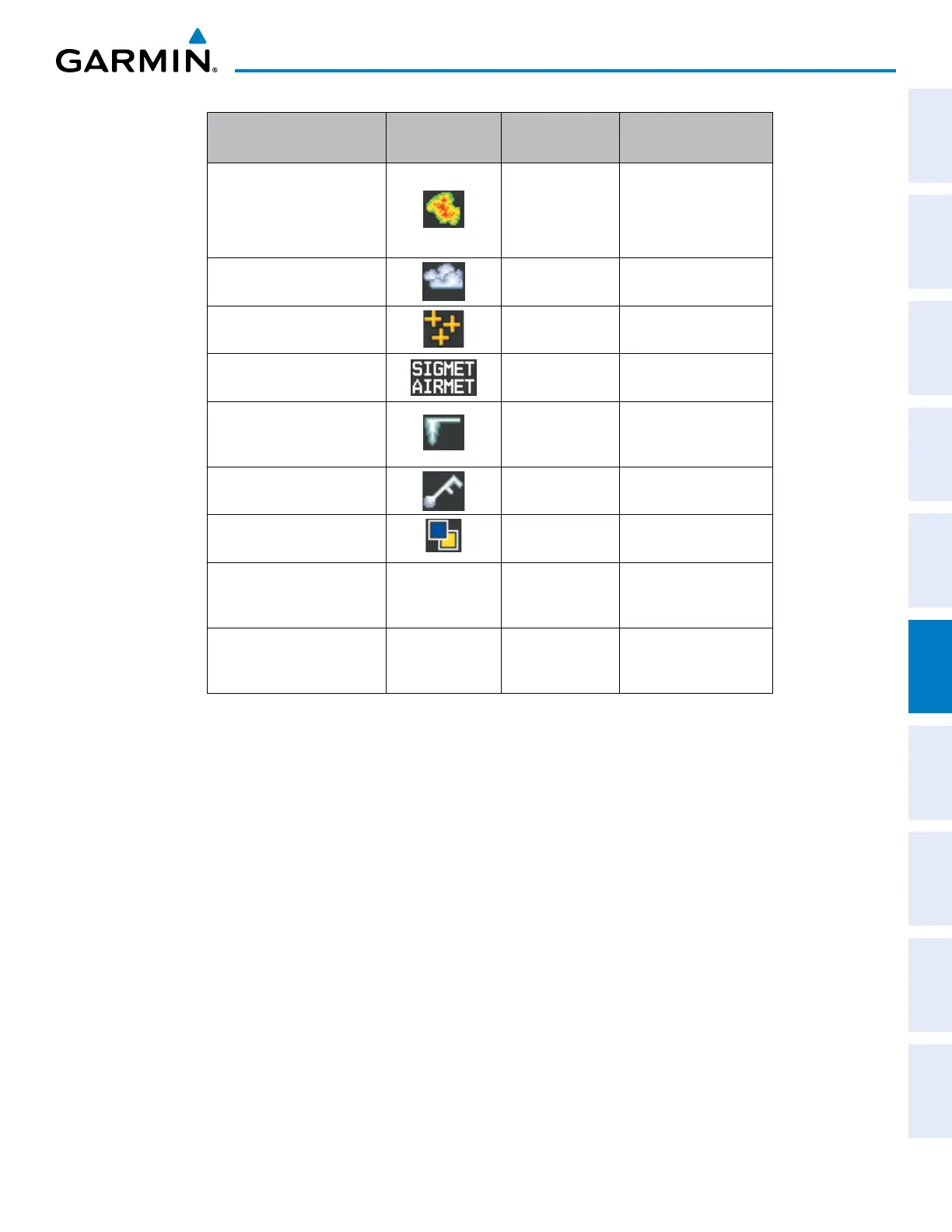

Table 6-5 Garmin Connext Weather Product Symbols and Data Timing

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
