The map can be configured to switch automatically to a north up orientation when the map range reaches a
minimum range.
Enabling/disabling Auto North Up and selecting the minimum switching range:
1) Press the MENU Key with the Navigation Map Page displayed. The cursor flashes on the ‘Map Setup’ option.
2) Press the ENT Key. The Map Setup Menu is displayed.
3) Select the ‘Map’ group.
4) Press the ENT Key.
5) Highlight the ‘AUTO NORTH UP’ field.
6) Select ‘On’ or ‘Off’ using the small FMS Knob.
7) Press the ENT Key to accept the selected option. The flashing cursor highlights the range field.
8) Use the small FMS Knob to select the desired range.
9) Press the ENT Key to accept the selected option.
10) Press the FMS Knob to return to the Navigation Map Page.
MAP RANGE
There are 28 different map ranges available, from 500 feet to 2000 nm. The current range is indicated in
the lower right corner of the map and represents the top-to-bottom distance covered by the map. When the
map range is decreased to a point that exceeds the capability of the G1000 to accurately represent the map,
a magnifying glass icon is shown to the left of the map range. To change the map range turn the Joystick
counter-clockwise to decrease the range, or clockwise to increase the range.

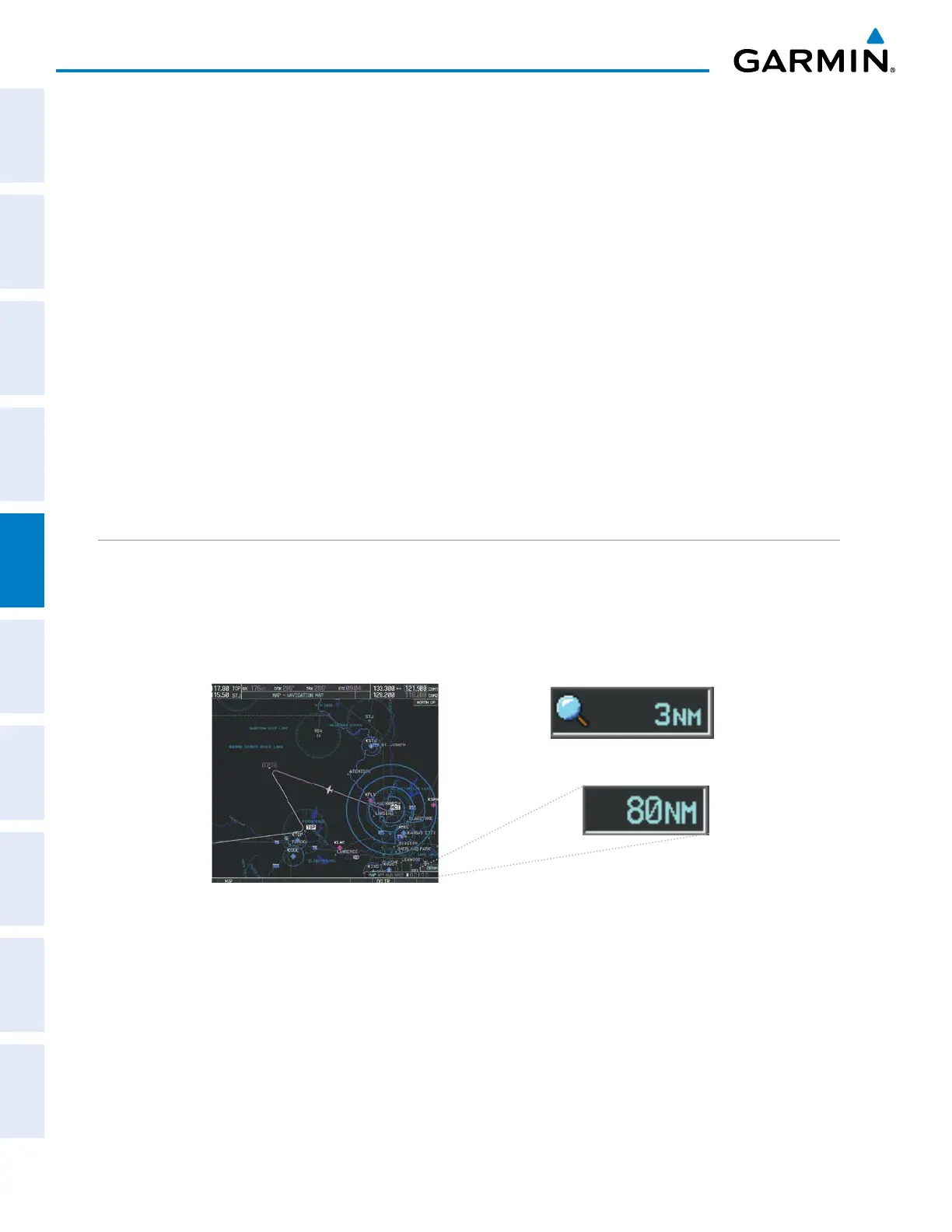

Figure 5-6 Map Range
Range Overzoom
AUTO ZOOM
Auto zoom allows the G1000 to change the map display range to the smallest range clearly showing the
active waypoint. Auto zoom can be overridden by adjusting the range with the Joystick, and remains until
the active waypoint changes, a terrain or traffic alert occurs, the aircraft takes off, or the manual override times
out (timer set on Map Setup Window).
If a terrain caution or warning occurs, all navigation maps automatically adjust to the smallest map range
clearly showing the potential impact points If a new traffic advisory alert occurs, any map page capable of
