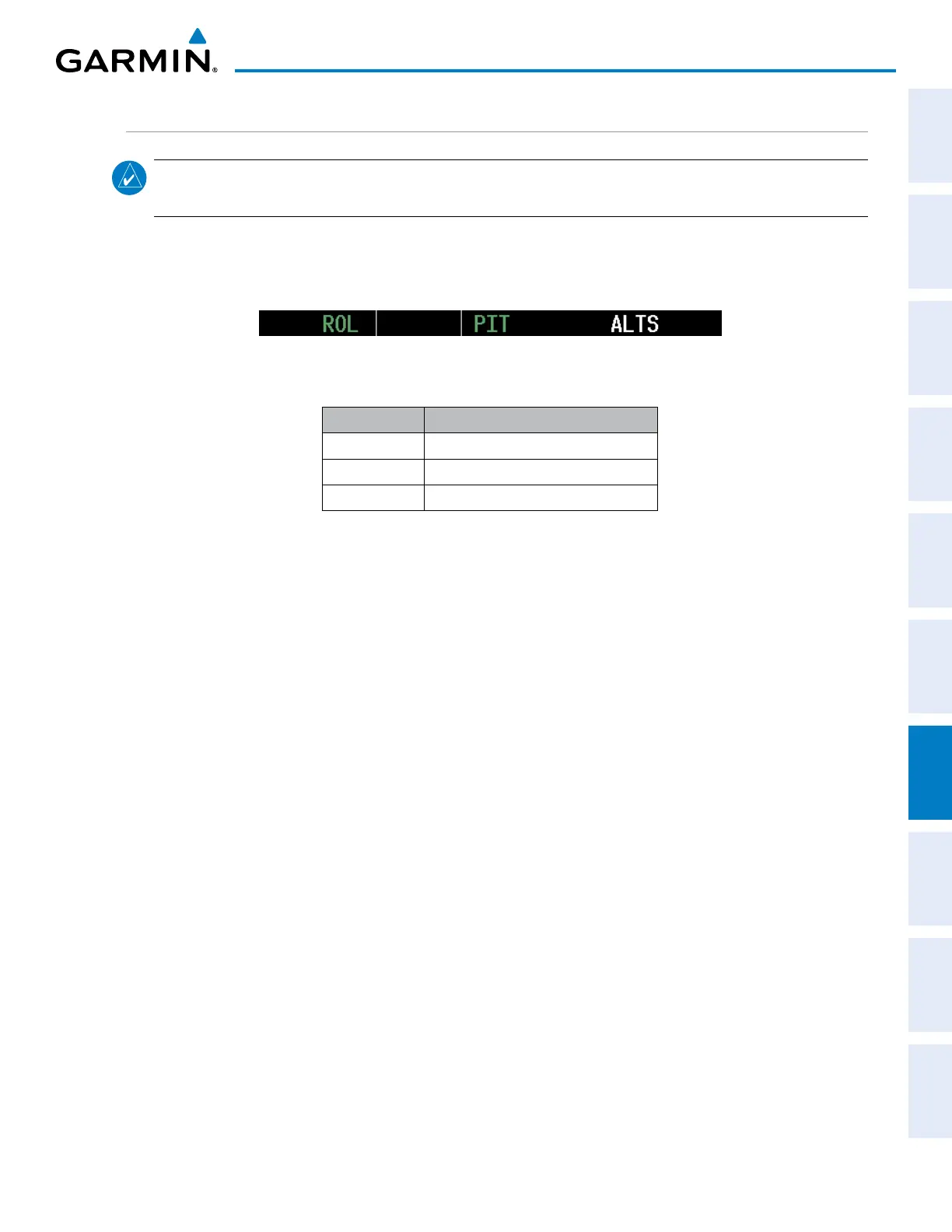

ROLL HOLD MODE (ROL)
NOTE: If Roll Hold Mode is activated as a result of a mode reversion, the flight director rolls the wings
level.
When the flight director is activated, Roll Hold Mode is selected by default. This mode is annunciated as
‘ROL’ in the AFCS Status Box. The current aircraft bank angle is held, subject to the bank angle conditions listed
in Table 7-4.
Figure 7-20 Roll Hold Mode Annunciation
Bank Angle Flight Director Response
< 6° Rolls wings level
6 to 25° Maintains current aircraft roll attitude
> 25° Limits bank to 25°
Table 7-4 Roll Hold Mode Responses
CHANGING THE ROLL REFERENCE
The roll reference can be changed by pressing the CWS Button, establishing the desired bank angle, then
releasing the CWS Button.

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
