A Baro Transition Alert is provided to notify the pilot to change the barometric pressure setting when crossing
the baro transition altitude. If the aircraft is at least 500 feet below the transition altitude and then climbs
through this altitude and the STD BARO Softkey has not been pressed, the barometric pressure setting flashes
in cyan until the pressure setting is changed. If the aircraft is at least 500 feet above the transition altitude and
then descends through this altitude and the barometric pressure setting has not been changed from STD BARO,
the setting flashes in cyan until it is changed (Figure 2-10).
Setting the Baro Transition Alert:
1) Use the FMS Knob to select the AUX - System Setup Page on the MFD.
2) Press the FMS Knob to activate the cursor.
3) Turn the large FMS Knob to highlight Altitude in the Baro Transition Alert box.
4) Turn the small FMS Knob to turn the alert OFF or ON and press the ENT Key.
5) Turn the small FMS Knob to change the altitude and press the ENT Key.
6) To cancel the selection, press the FMS Knob.

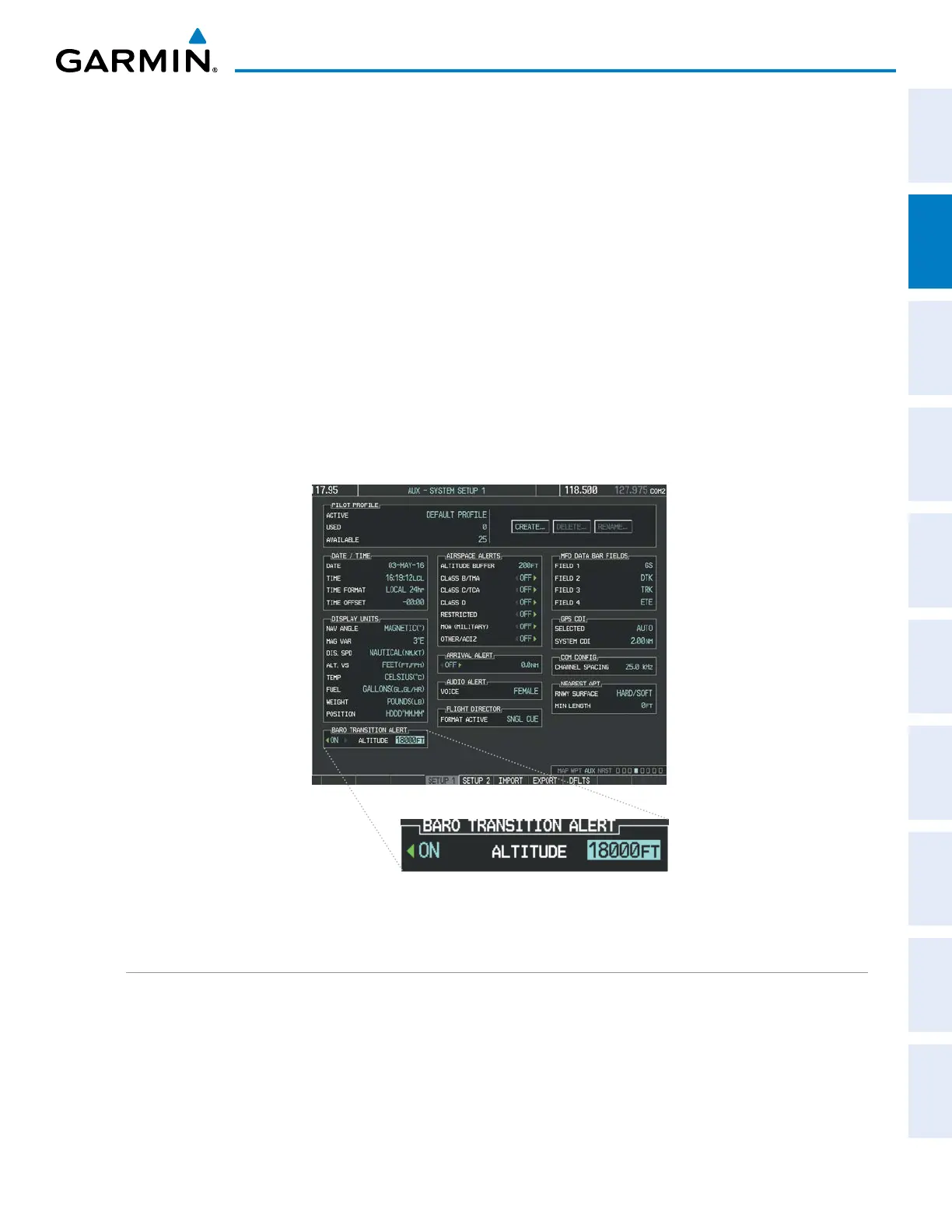

Figure 2-10 Aux System Setup Page, Baro Transition Alert
VERTICAL SPEED INDICATOR (VSI)
The Vertical Speed Indicator (VSI) displays the aircraft vertical speed on a fixed scale with labels at 2000 and
4000 fpm and minor tick marks every 1000 fpm. Digits appear in the pointer when the climb or descent rate
is greater than 100 fpm. If the rate of ascent/descent exceeds 4000 fpm, the pointer appears at the edge of the
tape and the rate appears inside the pointer.
