Garmin G1000 Pilot's Guide

190-00962-04 Rev. A
Garmin G1000 Pilot’s Guide for the Diamond DA42NG
75
FLIGHT INSTRUMENTS
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
ALTITUDE ALERTING
Altitude Alerting provides the pilot with a visual alert when approaching the Selected Altitude. Whenever the
Selected Altitude is changed, the Altitude Alerter is reset. The Altitude Alerter is independent of the Garmin
AFCS, but alerting tones and visual indications are only provided when the Garmin AFCS is installed. The
following occur when approaching the Selected Altitude:
• Upon passing through 1000 feet of the Selected Altitude an aural tone is heard. The Selected Altitude changes
to black text on a cyan background and flashes for five seconds.
• When the aircraft passes within 200 feet of the Selected Altitude, the Selected Altitude changes to cyan text
on a black background and flashes for five seconds.
• After reaching the Selected Altitude, if the pilot flies outside the deviation band (±200 feet of the Selected
Altitude) an aural tone is heard. The Selected Altitude changes to amber text on a black background and
flashes for five seconds.

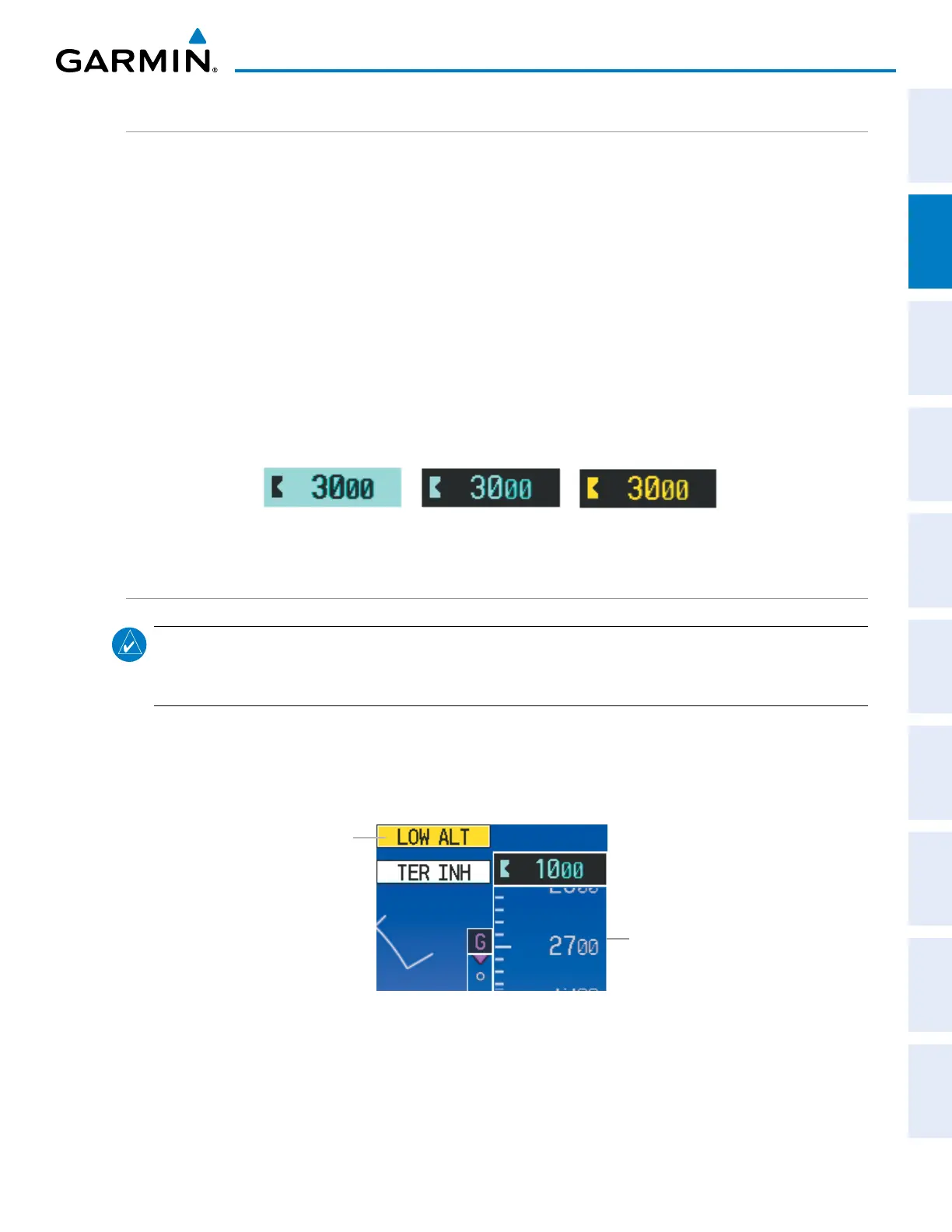

Figure 2-38 Altitude Alerting Visual Annunciations
Within 1000 ft Within 200 ft Deviation of ±200 ft
LOW ALTITUDE ANNUNCIATION
NOTE: A Low Altitude Annunciation is available only when SBAS is available. If the optional Terrain-SVS
systems is installed, this annunciation is not applicable unless the installed terrain system is inhibited, has
failed, or is unavailable.
When the Final Approach Fix (FAF) is the active waypoint in a GPS SBAS approach using vertical guidance,
a Low Altitude Annunciation may appear if the current aircraft altitude is at least 164 feet below the prescribed
altitude at the FAF. A black-on-amber LOW ALT annunciation appears to the top left of the Altimeter, flashing
for several seconds, then remaining displayed until the condition is resolved.
Figure 2-39 Low Altitude on GPS SBAS Approach
Altimeter
LOW ALT
Annunciation
