1.3 SYSTEM POWER-UP
NOTE: See the Airplane Flight Manual (AFM) for specific procedures concerning avionics power application
and emergency power supply operation.
NOTE: Refer to the Appendix for system-specific annunciations and alerts.
The G1000 System is integrated with the aircraft electrical system and receives power directly from electrical
busses. The PFD, MFD, and supporting sub-systems include both power-on and continuous built-in test features
that exercise the processor, RAM, ROM, external inputs, and outputs to provide safe operation.
During system initialization, test annunciations are displayed, as shown in Figure 1-4. All system annunciations
should disappear typically within the first minute of power-up. Upon power-up, key annunciator lights also
become momentarily illuminated on the Audio Panel and the display bezels.
On the PFD, the AHRS begins to initialize and displays “AHRS ALIGN: Keep Wings Level”. The AHRS should
display valid attitude and heading fields typically within the first minute of power-up. The AHRS can align itself
both while taxiing and during level flight.
When the MFD powers up, the screen (Figure 1-5) displays the following information:
• System version
• Copyright
• Land database name and version
• Obstacle database name and version
• Terrain database name and version
• Aviation database name, version, and effective dates
Current database information includes valid operating dates, cycle number, and database type. When this
information has been reviewed for currency (to ensure that no databases have expired), the pilot is prompted to
continue.
Pressing the ENT Key acknowledges this information, and displays the Navigation Map Page. When the system
has acquired a sufficient number of satellites to determine a position, the aircraft’s current position is shown on
the Navigation Map Page.

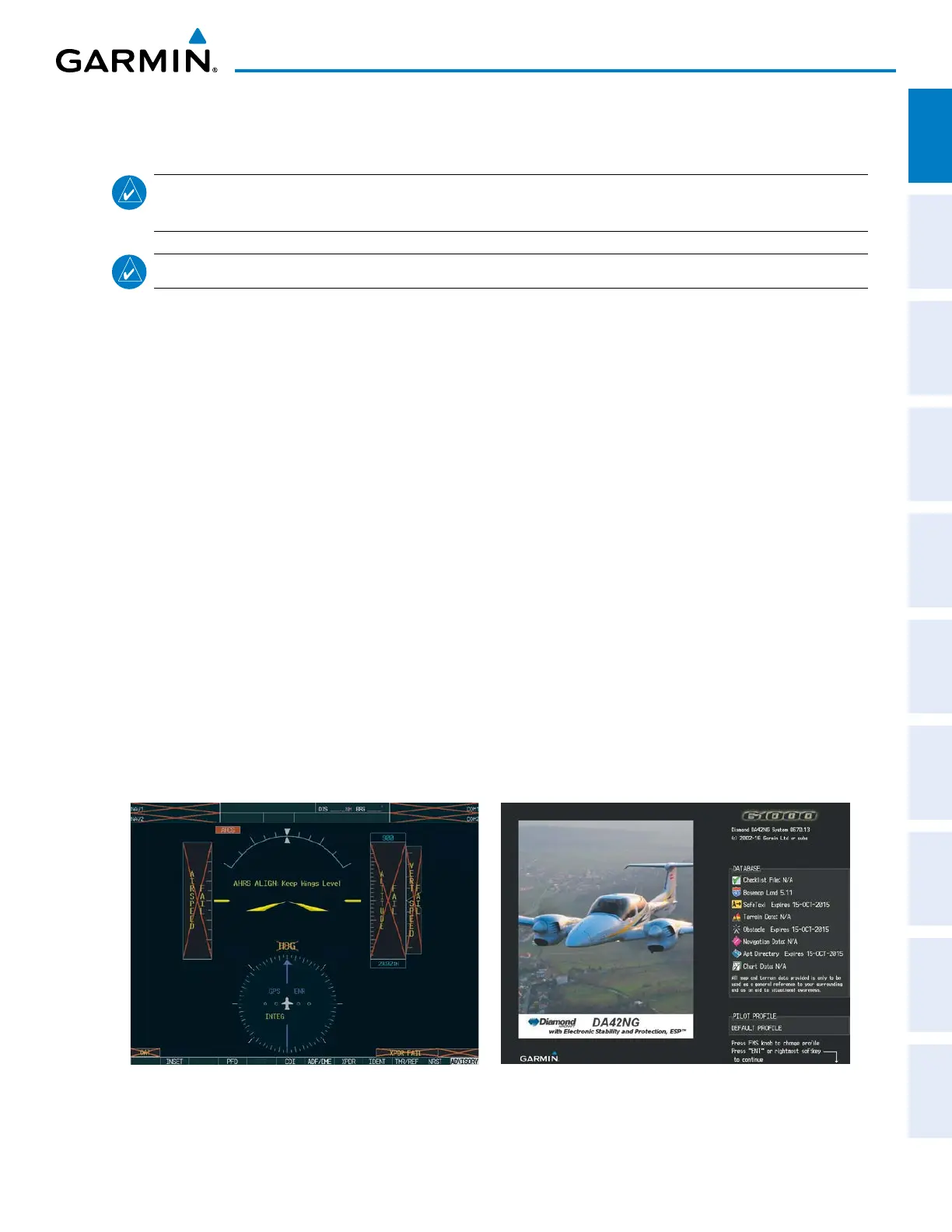

Figure 1-4 PFD Initialization Figure 1-5 Example MFD Power-up
