Garmin G1000 Pilot's Guide

190-00962-04 Rev. A
Garmin G1000 Pilot’s Guide for the Diamond DA42NG
615
ADDITIONAL FEATURES
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
8.13 WI-FI CONNECTIONS
The optional GDL 59 Data Link provides a high speed IEEE 802.11g Wi-Fi data link between the aircraft and a
ground computer network while the aircraft is on the ground and located within range of the network.
The system is capable of WEP64, WEP128,WPA-PSK, and WPA2-PSK encryption formats. WPA-Enterprise
and WPA2-Enterprise are not supported. Connections that require web proxies, captive portals, or other elements
that require user credentials, including a username and password or a redemption or access code; or require
action such as accepting a user agreement, are not supported.
Control and monitoring of Wi-Fi functions are accomplished through the AUX-WI-FI SETUP Page.
Viewing the Wi-Fi Setup Page:
1) Turn the large FMS Knob on the MFD to select the AUX page group.
2) Turn the small FMS Knob to select the AUX ‑ WI‑FI SETUP Page.
Setting up a new Wi-Fi connection:
1) Select the AVAIL Softkey on the MFD. A list of available networks will be displayed in the AVAILABLE NETWORKS
window as shown in Figure 8‑114. Signal strength is shown for each network, as well as security requirements
and whether the network has been saved in the system’s memory.

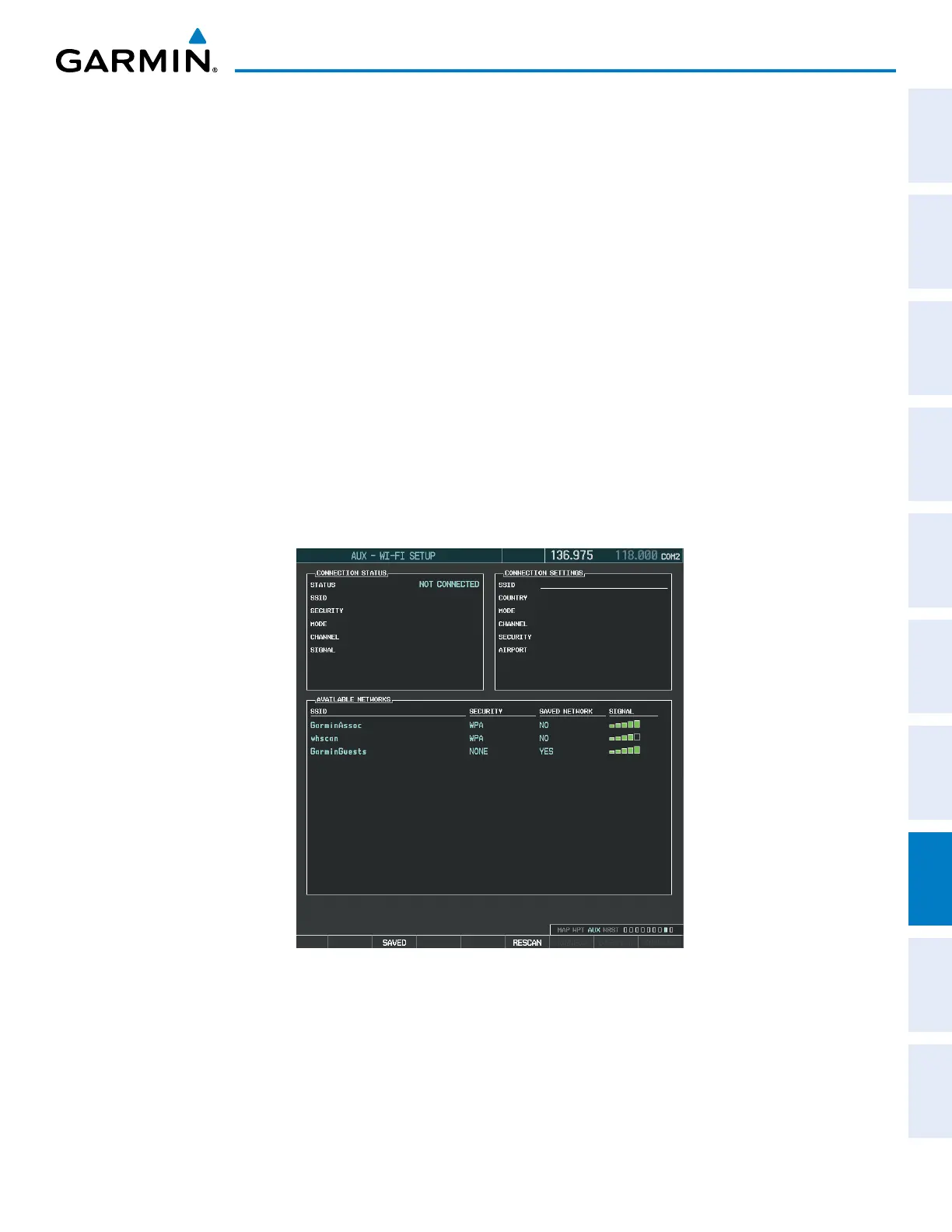

Figure 8-114 Available Wi-Fi Networks
2) If necessary, select the RESCAN Softkey to have the system scan again for available networks.
Or:
a) Press the MENU Key to display the Page Menu.
b) Turn either FMS Knob to place the cursor on ‘Rescan Available Networks’.
