7.7 AFCS ANNUNCIATIONS AND ALERTS
AFCS STATUS ALERTS
The annunciations in Table 7-5 (listed in order of increasing priority) can appear on the PFD above the
Airspeed and Attitude indicators. Only one annunciation may occur at a time, and messages are prioritized by
criticality.

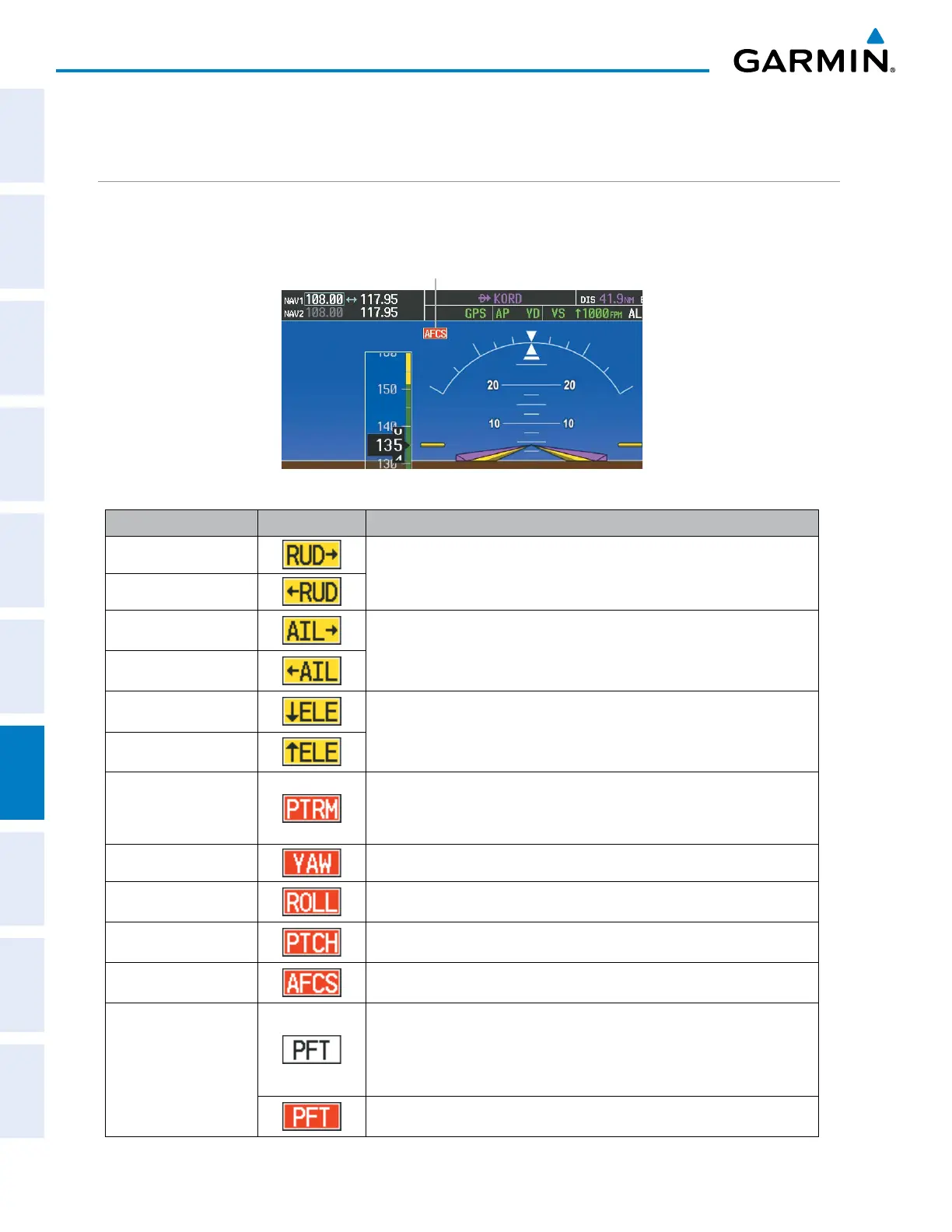

Figure 7-40 AFCS Status Annunciation
AFCS Status Annunciation
Alert Condition Annunciation Description
Rudder Mistrim Right
Yaw servo providing sustained force in the indicated direction
Rudder Mistrim Left
Aileron Mistrim Right
Roll servo providing sustained force in indicated direction
Aileron Mistrim Left
Elevator Mistrim Down
Pitch servo providing sustained force in the indicated direction
Elevator Mistrim Up
Pitch Trim Failure
(or Stuck AP TRIM
Switch)
If AP engaged, take control of the aircraft and disengage AP
If AP disengaged, move AP TRIM switches separately to unstick
Yaw Damper Failure YD control failure
Roll Failure Roll axis control failure; AP inoperative
Pitch Failure Pitch axis control failure; AP inoperative
System Failure AP and MET are unavailable; FD may still be available
Preflight Test
Performing preflight system test; aural alert sounds at completion
Do not press the AP DISC Switch during servo power-up and preflight
system tests. Doing so may cause the preflight system test to fail or never
to start. Cycle power to the servos if this occurs.
Preflight system test failed; aural alert sounds at failure
Table 7-5 AFCS Status Alerts
