HAZARD AVOIDANCE
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICESINDEX
Or:
1) Press the MENU Key.
2) Select ‘Show Profile View’ or ‘Hide Profile View’ (choice dependent on current state) and press the ENT Key.
Enabling/Disabling Profile View Terrain on the Navigation Map (when Profile View is enabled):
1) Select the Navigation Map Page.
2) Press the MAP Softkey.
3) Press the TERRAIN Softkey.
PROFILE VIEW DISPLAY
When the Profile View is enabled, it is displayed in a window below the Navigation Map. Altitude is shown
along a vertical scale, with an aircraft icon positioned at the current altitude. Distance is represented horizontally
along the bottom of the Profile View, and increases from left (present position) to right.
When the Navigation Map range is adjusted with the Joystick, the horizontal distance of the Profile View
is adjusted proportionately to be 1/2 of the Navigation Map range distance down to 1 nm, at which point
Profile View is no longer available (‘PROFILE NOT AVAILABLE’ is displayed). When Navigation Map range is
adjusted to remove altitude-correlated colored terrain data (as shown in the Terrain Legend) or obstacles from
the Navigation Map, these items are also removed from the Profile View; only an outline of the terrain will be
displayed in black in the Profile View window. Refer to the Terrain Proximity or Terrain-SVS discussions for
more information about displaying terrain or obstacles on the Navigation Map Page.
Altitude Scale
Profile View
Path Enabled
Terrain Legend
Profile View Length
is One Half of the
Navigation Map
Range

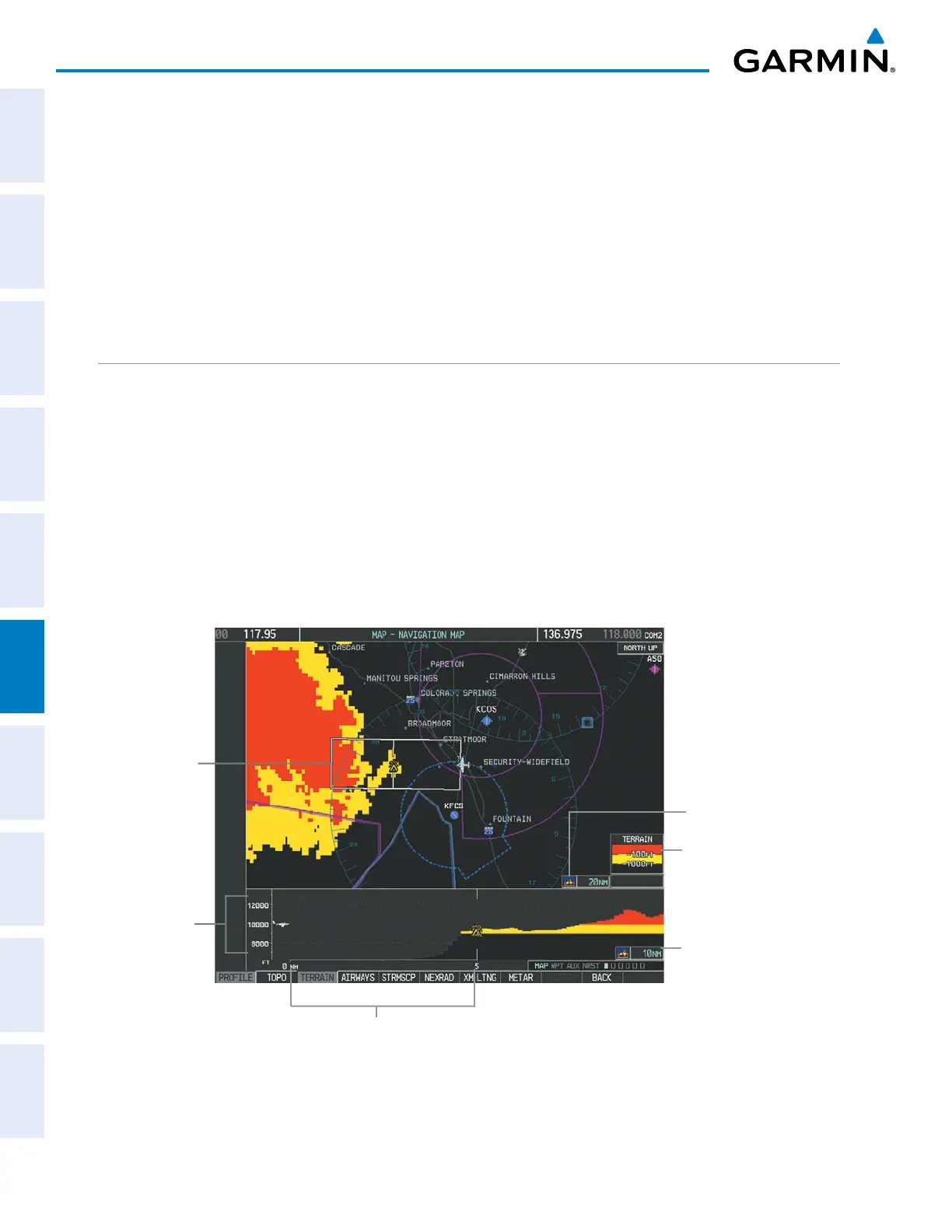

Figure 6-163 Profile View on Navigation Map with Terrain Display Enabled
Distance Scale
Navigation Map Range
Obstacles with heights greater than 200 feet AGL appear relative to aircraft altitude along the altitude scale.
The top of the obstacle symbol on the scale represents the obstacle’s height AGL. If the obstacle’s height AGL
