VERTICAL DEVIATION
NOTE: The Glidepath Indicator is only available on GPS approaches supporting SBAS vertical guidance when
SBAS is available.
The Vertical Deviation Indicator (VDI) is a magenta chevron indicating the baro-VNV vertical deviation when
Vertical Navigation (VNV) is being used. The VDI appears in conjunction with the “TOD within 1 minute”
alert. The VDI is removed from the display if vertical deviation becomes invalid. See the Flight Management
Section for details on VNV features, and refer to Section 2.2, Supplemental Flight Data, for more information
about VNV indications on the PFD.
The Glideslope Indicator (Figure 2-12) appears to the left of the Altimeter whenever an ILS frequency is tuned
in the active NAV field and the aircraft heading and selected course are within 107˚. A green diamond acts as
the Glideslope Indicator, like a glideslope needle on a conventional indicator. If a localizer frequency is tuned
and there is no glideslope, “NO GS” is displayed in place of the diamond.
NOTE: The Glidepath Indicator appears on the display as soon as the Final Approach Fix (FAF) becomes the
active waypoint. Depending on procedure design, pilot action, and/or ATC clearance, the aircraft may be
centered on or above the glidepath when the Glidepath Indicator appears.
The Glidepath Indicator is vertical deviation scale for RNAV GPS approaches supporting SBAS vertical
guidance (LNAV+V, L/VNAV, LPV and LP+V approach service levels). The Glidepath Indicator, a magenta
diamond (Figure 2-13) appears on the display as soon as the Final Approach Fix (FAF) becomes the active
waypoint, and the FMS is the selected navigation source. Full-scale deflection (two dots), is angular with upper
and lower limits. The upper limit is +/- 492 feet (150 meters) and the lower limits depends on the approach
service level.
• LNAV/VNAV, is +/- 148 feet (45 meters).
• LPV/LP+V is +/- 49 feet (15 meters).
If the approach type downgrades past the final approach fix (FAF), “NO GP” is displayed in place of the
diamond.

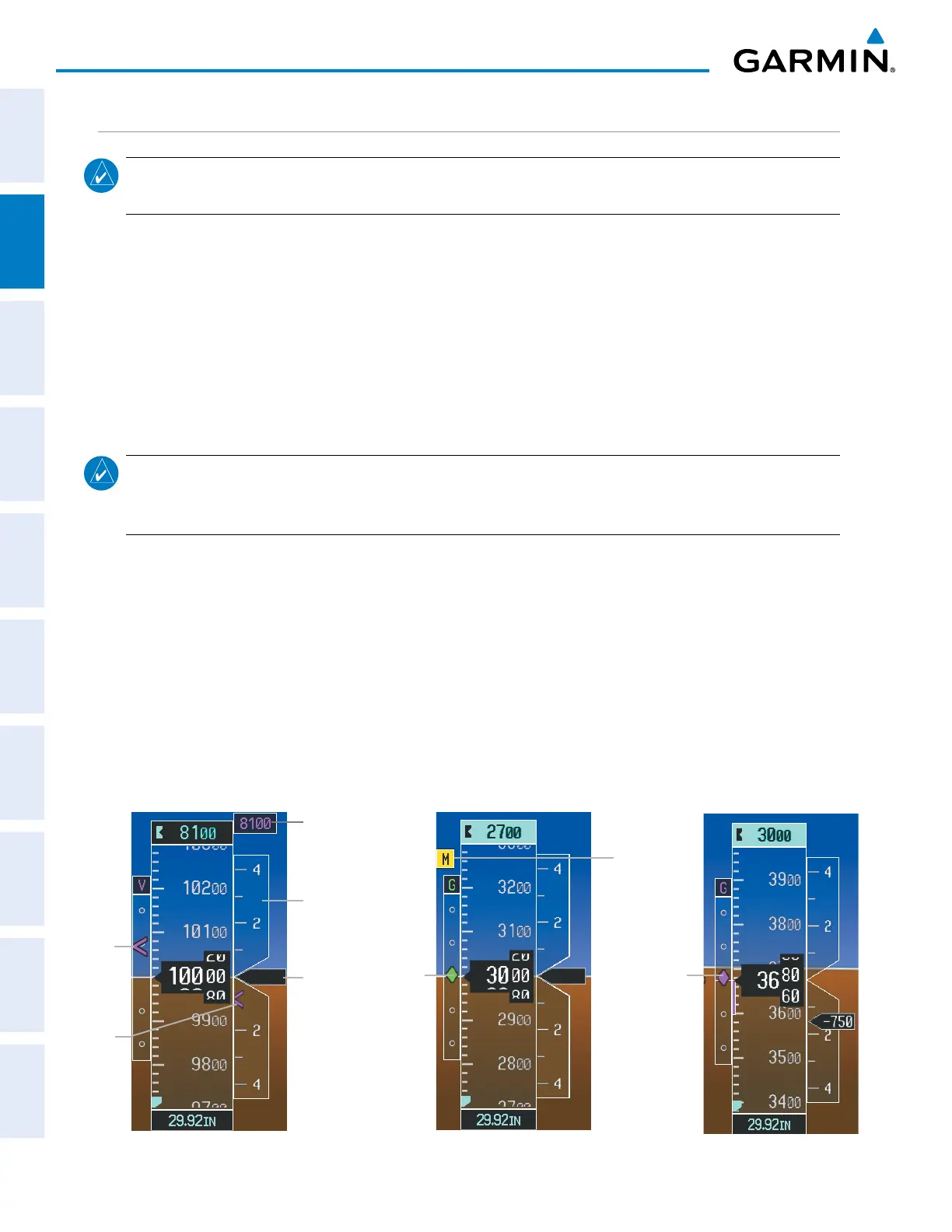

Figure 2-11 Vertical Speed and
Deviation Indicator (VSI and VDI)
Vertical
Speed
Indicator
Scale
Required
Vertical
Speed
Current
Vertical
Speed
Pointer
VNV Target
Altitude
Vertical
Deviation
Indicator
Glideslope
Indicator
Figure 2-12 Glideslope
Indicator
Marker
Beacon
Annunciation
GIidepath
Indicator
Figure 2-13 Glidepath
Indicator
