9.2 Map Panning
In the Map Page function, panning allows you to move the map beyond its
current limits without adjusting the map scale. The panning function is selected
by simply touching the Map display. The In and Out keys at the lower right
corner of the page control the map range. Touching the display momentarily
switches the display to Map Pan Mode. While in Map Pan Mode, touch the
display gently and drag your finger to pan around the map.
1. Touch the Map page display.
Info On
Selected
Item
Pan Mode Annunciation and
Bearing and Distance To The Map
Pointer From Present Position
Touch To Edit FPL
On The Display
Aircraft Present
Position
Touch To Step
To Items Near
The Map
Pointer
Map Pointer
Location
Selected Item

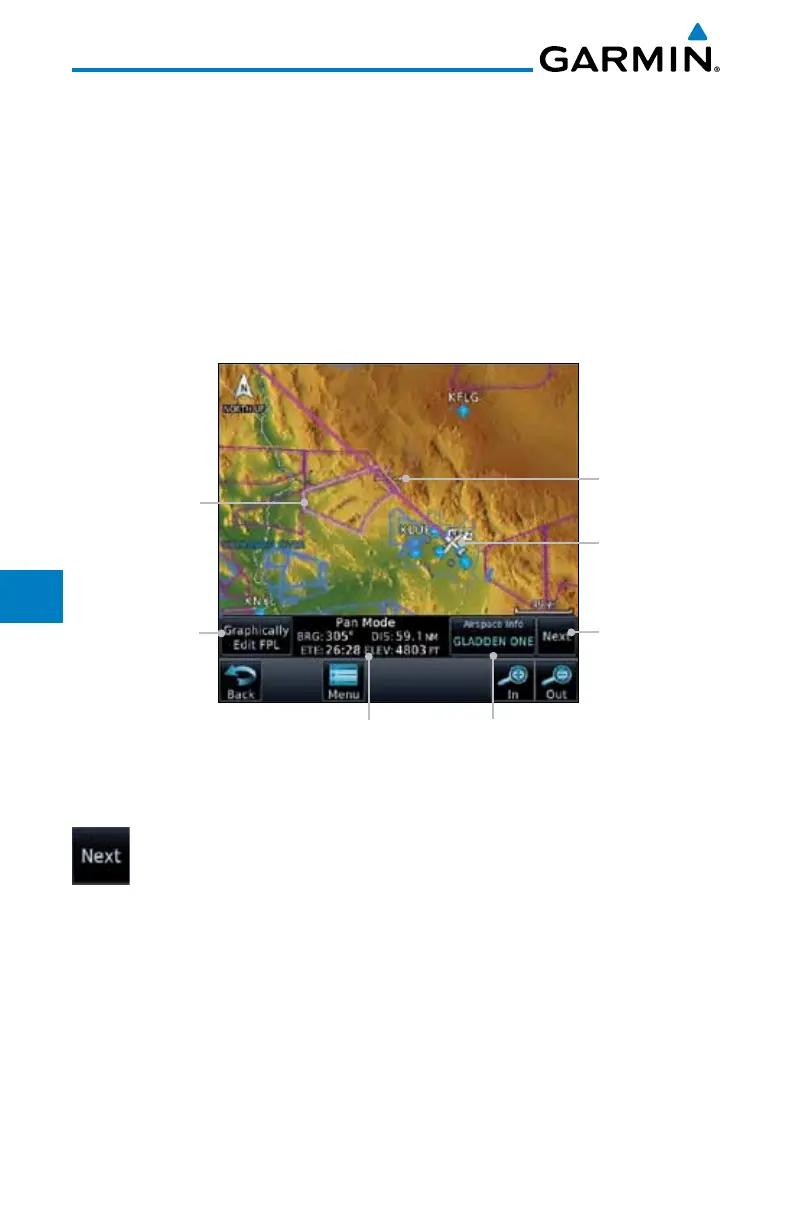

Figure 9-30 Map Panning With Airspace Highlighted
2. If you touch an item on the display (waypoint, airspace,
obstacle) there may be other items very close that are difficult
to see at a given zoom level. Touch the Next key to annunciate
and highlight the next item. Each touch of the Next key steps
to another item near the Map Pointer.
