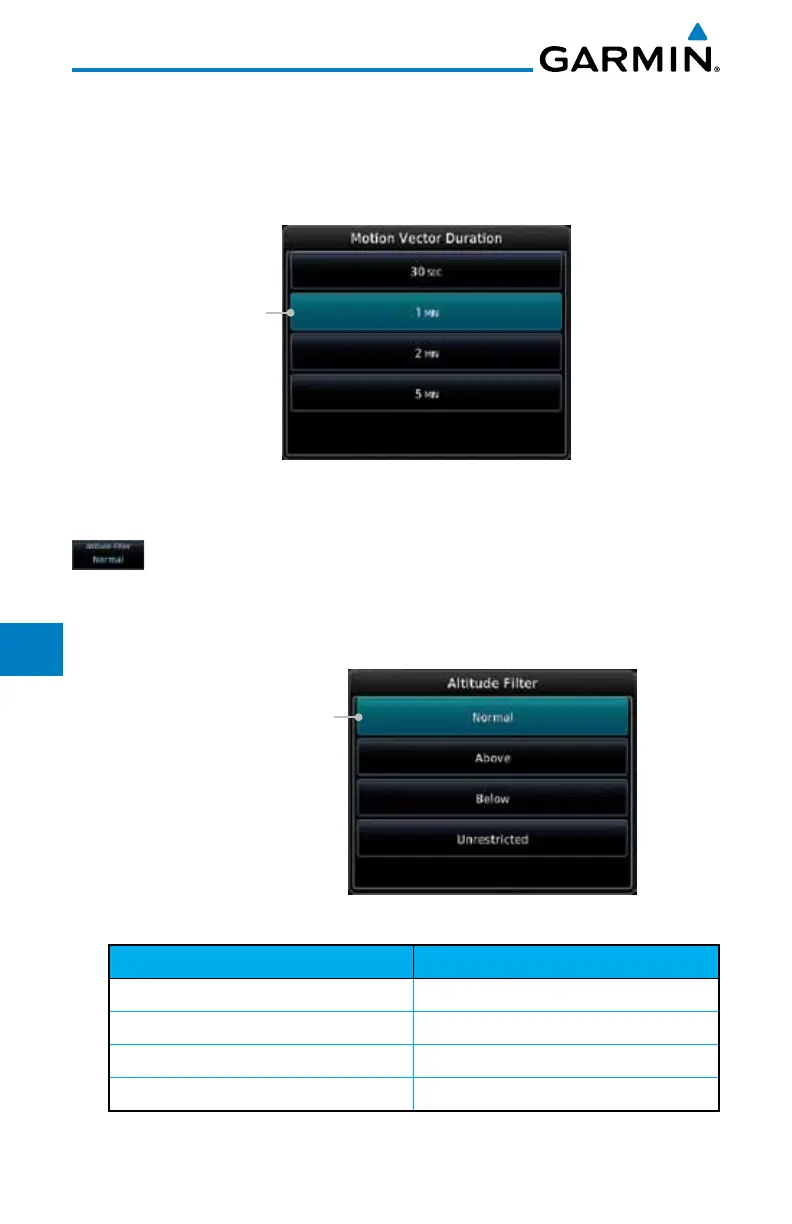

10.5.1.4 Vector Duration
The Vector Duration selection sets the time that the vector will show the
calculated distance and direction of the traffic target. A longer duration will
result in a longer vector.
Selected Vector Duration
Figure 10-17 Traffic Motion Vector Duration Selection
10.5.1.5 Altitude Filter
1. Touch the Altitude Filter key to change the altitude volume.
2. Select
the desired altitude volume by touching the
BELOW,
NORMAL, ABOVE, or UNRESTRICTED keys. The selection
is displayed in the Altitude mode field.
Selected Altitude Filter
Figure 10-18 Traffic Altitude Filter Selection
Altitude Mode Displayed Traffic Range
Below -9900 ft to 2700 ft
Normal -2700 ft to 2700 ft
Above -2700 ft to 9900 ft
Unrestricted All Traffic Shown
Table 10-13 Displayed Traffic Range
