finger up or down. Map displays may be panned by touching the screen and
retaining pressure while sliding your finger in the desired direction.
You can return to the previous page or exit the current function
by touching the Back key.
Quickly return to the Home page by pressing the HOME key.
Press and hold the HOME key to reach the Map page.
1.3 Product Description
This section provides an overview of the GTN 7XX product and a quick look
at some important features. The GTN 7XX presents a full-color moving map
with navigation information to the pilot through a large-format display. Controls
are a combination of rotary knobs and push-keys on the bezel with the color
display providing information as well as a touchscreen controls. The GTN 7XX
has a 708 x 600 pixel, 6.9 inch LCD display.
Large and
Small Knobs
Volume, Squelch On/
Off, and Nav ID On/Off
Active Com Frequency Standby Com
Frequency
Active Nav
Frequency
Standby Nav
Frequency
Direct-To Key
Photo Sensor
HOME Key
SD Card
Home Page
Annunciations
Function
Keys
Dual Rotary Knob Function Hints
Locking
Screw
Audio Panel
Controls (opt)
Xpdr Panel
Controls (opt)

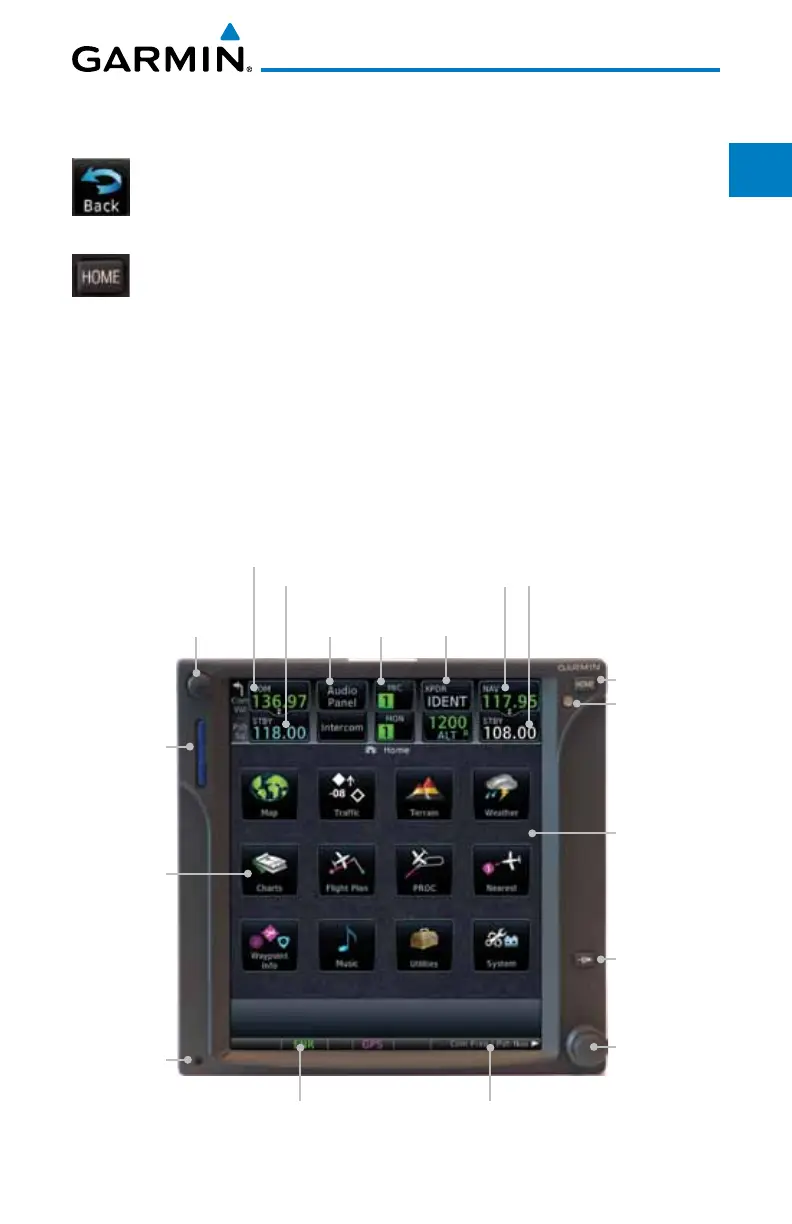

Figure 1-4 GTN 750 Front Panel
