4. Touch the Enter key to accept the selected value. The selected
value will be shown in the Field Elevation key.
5. Touch the Use DEST APT key to automatically use the field
elevation of the destination airport of the active flight plan
for traffic reporting.
NOTE: Activating the Use DEST APT feature automatically uses the
elevation for the current destination airport for the TCAD. If no destination
airport is present in the GTN system, the TCAD will not receive a field
elevation and therefore not automatically enter approach mode.
En Route, Standard, or Terminal Shield Type
1. While viewing the TCAD Control menu, touch the Shield Type
key and touch the desired Shield Type: Enroute, Standard, or
Terminal.
Touch To Shield Range
Touch To Manually
Set Shield Height
Touch To Select
Shield Type:
Approach or
Standard

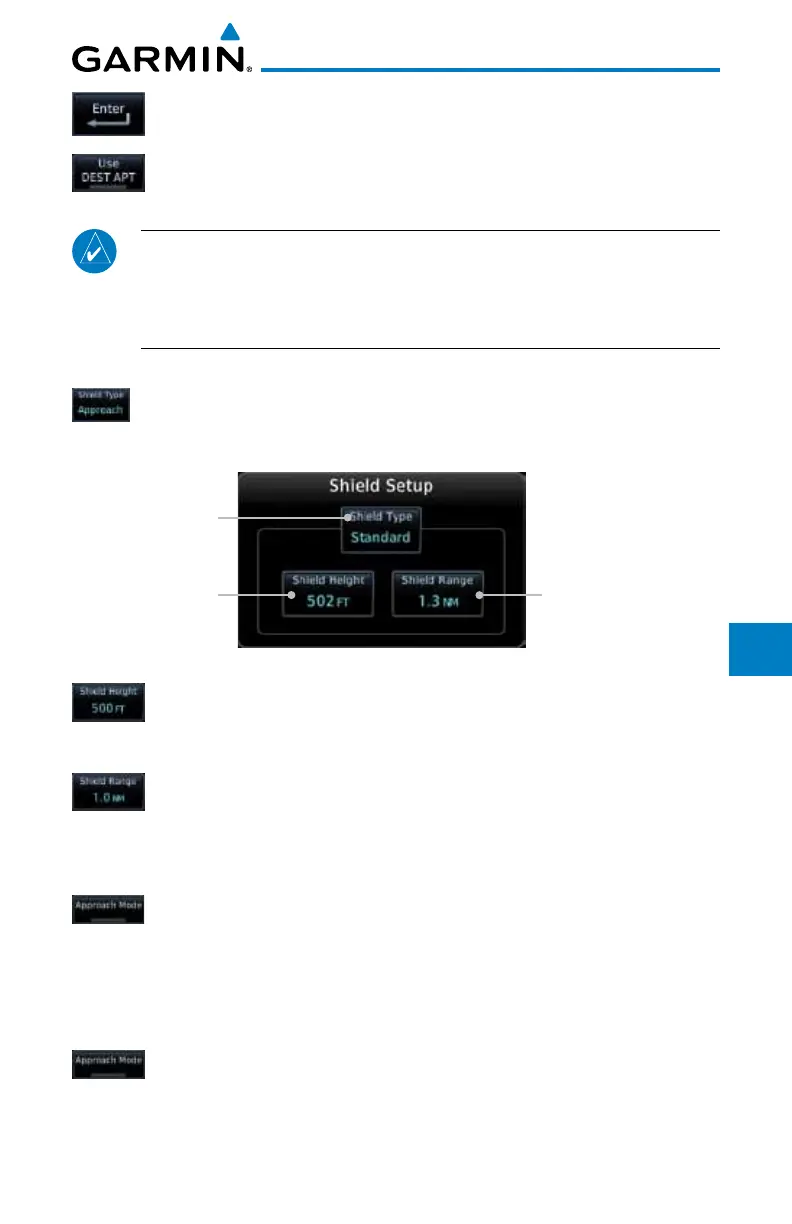

Figure 10-33 TCAD 9900BX Shield Setup for En Route, Standard, and Terminal
2. Touch the Shield Height key and use the keypad to select
the Shield Height value. The selected value will be shown in
the Shield Range key.
3. Touch the Shield Range key and use the keypad to select
the Shield Range value. The selected value will be shown in
the Shield Range key.
10.8.3.3 Approach Mode
1. While viewing the Traffic menu, touch the Approach key to
activate Approach Mode TCAD traffic.
2. Touching the Approach key toggles Approach Mode between
Set, Armed, or Active.
10.8.3.4 Ground Mode
1. While viewing the Traffic menu, touch the Ground key to
activate Ground Mode TCAD traffic.
2. Touching the Ground key toggles Ground Mode between On
and Off.
