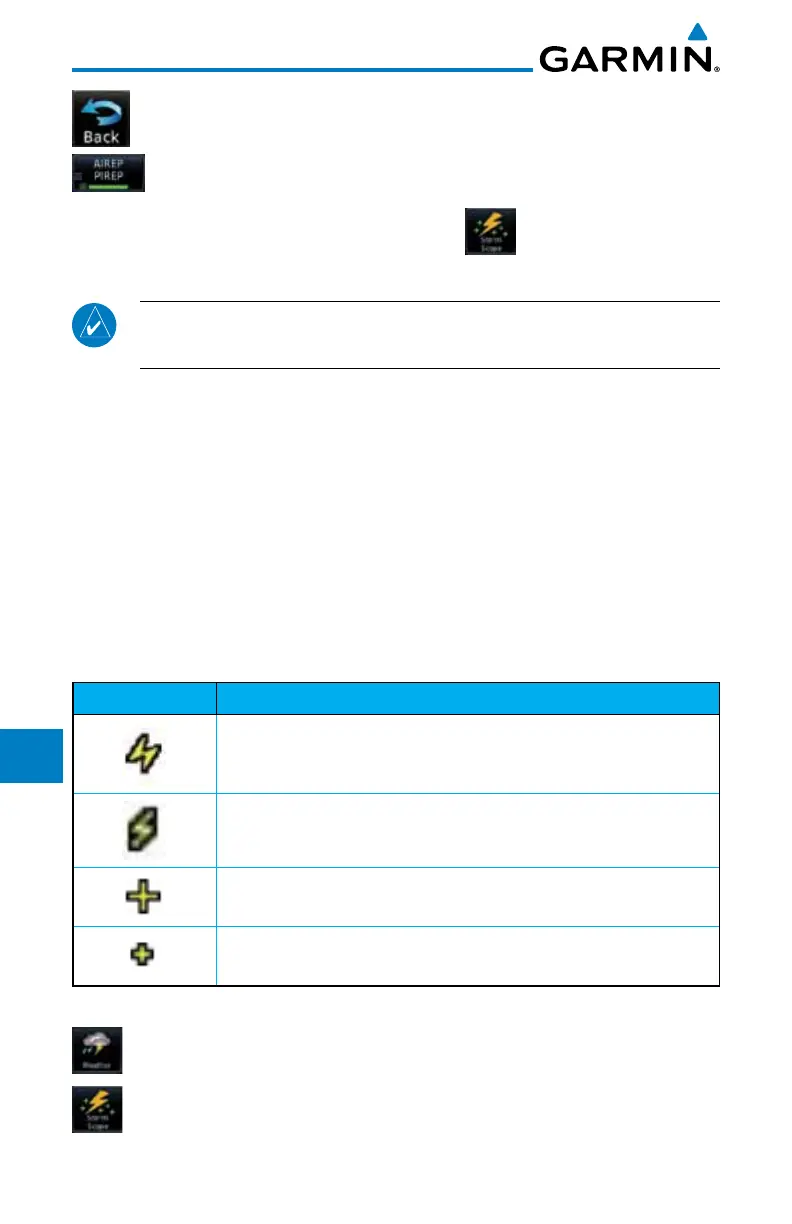

3. Touch the Back key to remove the detailed information.
4. Touch the AIREP/PREP key again to turn it off.
12.2 StormScope
®
Weather
12.2.1 StormScope
®
(Optional)
NOTE: Refer to the WX-500 Pilot’s Guide for a detailed description of the
WX-500 StormScope.
The WX-500 StormScope Weather Mapping Sensor is a passive weather
avoidance system that detects electrical discharges associated with thunderstorms
within a 200 NM radius of the aircraft. The StormScope measures relative
bearing and distance of thunderstorm-related electrical activity and reports the
information to the display. Interfaces are currently only available for the WX-
500 StormScope System.
For lightning display interpretation, study the examples in the WX-500
Pilot's Guide that are designed to help you relate the cell or strike patterns
shown on the display to the size and location of thunderstorms that may be near
your aircraft.
Symbol Time Since Strike (Seconds)
6
60
120
180
Table 12-4 Stormscope Symbols
1. From the Home page, touch the Weather key (and then the
StormScope key if present) to reach the StormScope function.
