11.3.5 Using TAWS
During unit power-up, the terrain/obstacle database versions are displayed.
At the same time, TAWS self-test begins. One of the following aural messages is
generated:
• “TAWS System Test OK” (not given if the aircraft is on the ground)
• “TAWS System Failure”
TAWS information can be displayed on the Map page. Terrain and obstacles
with heights greater than 200 feet Above Ground Level (AGL) are displayed
in yellow and red. The GTN 7XX adjusts colors automatically as the aircraft
altitude changes.
360
Arc
View
Flight Plan
Legend
Layers
TAWS Inhibit
Test TAWS
TAWS

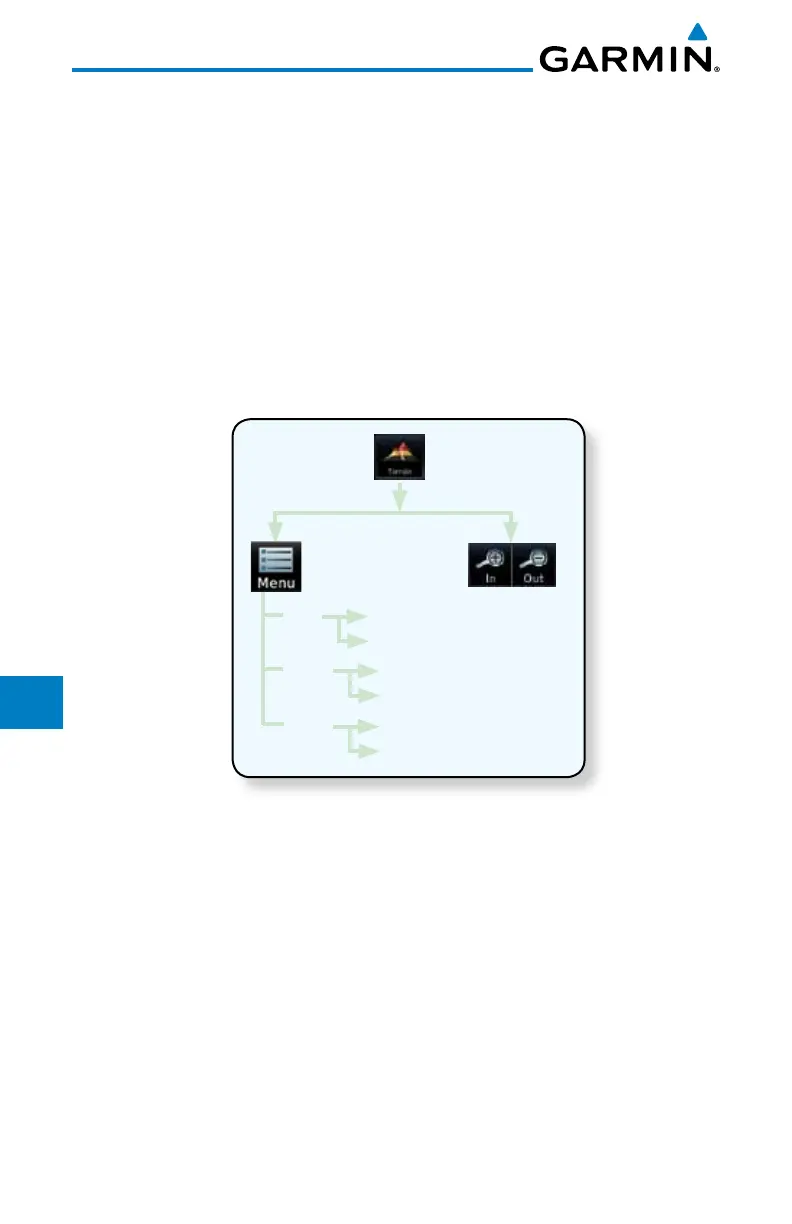

Figure 11-5 TAWS Page Functional Diagram
11.3.6 Displaying TAWS Data
TAWS uses yellow (caution) and red (warning) to depict terrain and obstacles
alerts relative to aircraft altitude. Colors are adjusted automatically as the aircraft
altitude changes. The colors and symbols shown below are used to represent
terrain, obstacles, and potential impact points.
