10.4.1 TAS Symbology
Traffic Advisory System (TAS) is designed to help in detection and avoidance
of other aircraft. TAS uses an on-board interrogator-processor to detect traffic.
Only aircraft with operating transponders will be detected. Traffic is displayed
according to TCAS symbology using four different symbols.

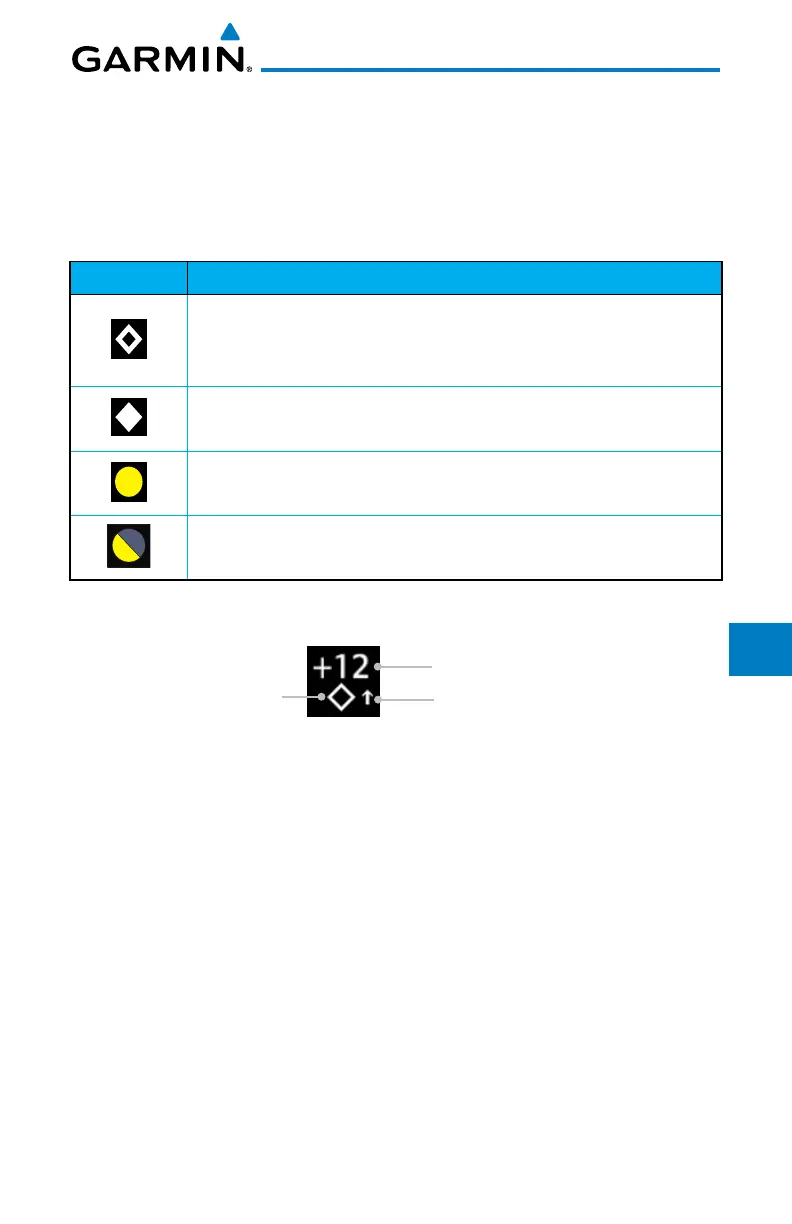

TAS Symbol Description
Non-Threat Traffic
(intruder is beyond 5 NM and greater than 1200 ft vertical
separation)
Proximity Advisory (PA)
(intruder is within 5 NM and less than 1200 ft vertical separation)
Traffic Advisory (TA)
(closing rate, distance, and vertical separation meet TA criteria)
Traffic Advisory Off Scale
Table 10-6 TAS Intruder Symbol Description
Relative Altitude (1200 ft Above)
Vertical Trend Arrow (Climbing)
Non-Threat Traffic
Figure 10-7 Intruder Type, Altitude, and Vertical Trend
