Garmin GTN 725 User Manual

11-4
GTN 725/750 Pilot’s Guide
190-01007-03 Rev. C
Foreword
Getting
Started
Audio &
Xpdr Ctrl
Com/Nav
FPL
Direct-To
Proc
Charts
Wpt Info
Map
Traffic
Terrain
Weather
Nearest
Services/
Music
Utilities
System
Messages
Symbols
Appendix
Index

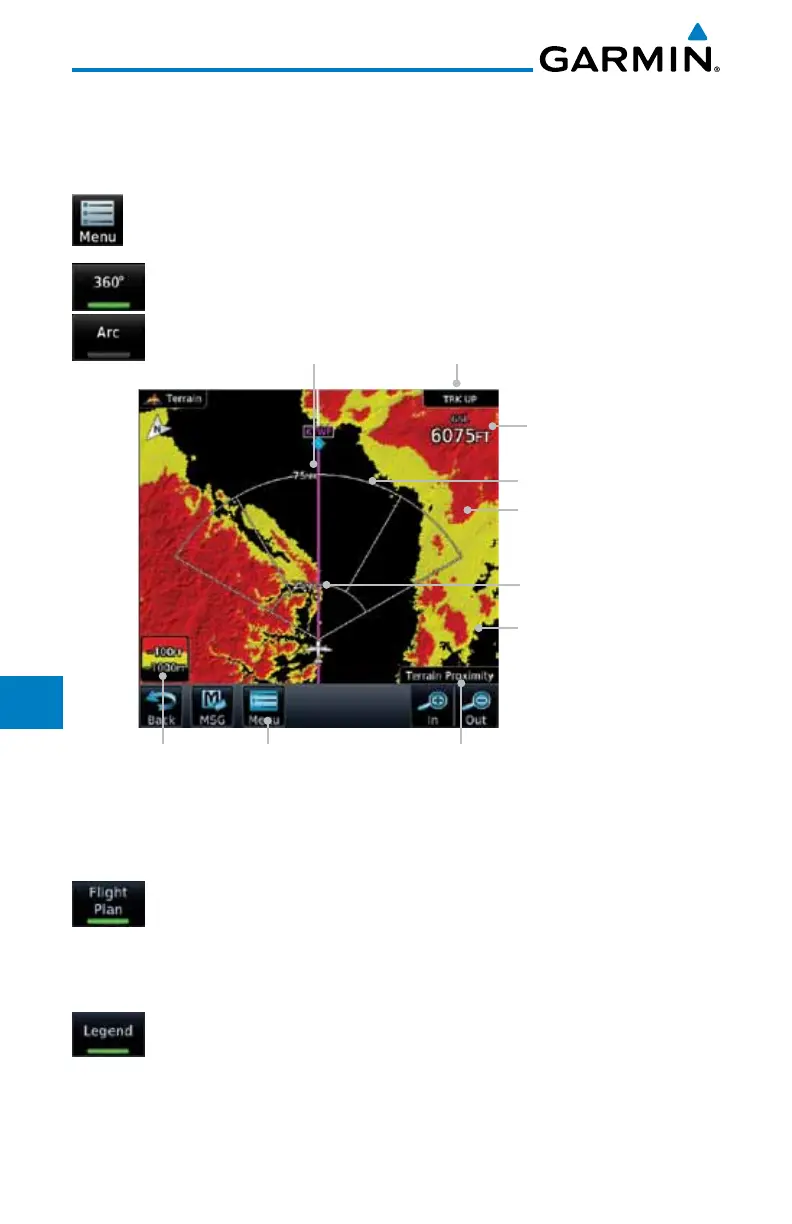

11.2.1.1 Terrain Page 120° Arc or 360° Rings
Select the 120º Arc or 360º rings overlay for the Terrain page with either the
360 or Arc keys from the Menu.
1. While viewing the Terrain page, touch the Menu key.
2. Touch the 360º or Arc key.
120° Arc Outline
Outer Arc Range
Inner Arc Range
Aircraft GSL Value
(GPS Derived)
Terrain Menu Key
Red Terrain Is Above Or
Within 100 ft Below The
Aircraft Altitude
Yellow Terrain Is Between
100 ft and 1000 ft Below
The Aircraft Altitude
Terrain Type
Terrain Scale
Heading Annunciation
Figure 11-4 Terrain 120° Arc View
11.2.1.2 Display Flight Plan on Terrain Page
Select the display of the active flight plan on the Terrain page.
Touch the Flight Plan key to toggle the display of active flight
plan on or off.
11.2.1.2 Display Terrain Legend
Select the display of the Terrain Legend on the Terrain page.
Touch the Legend key to toggle the display of the Terrain
Legend on or off.
