10.3.2 Traffic Page
The Traffic Map Page is configured to show surrounding TIS traffic data in
relation to the aircraft’s current position and altitude, without clutter from the
basemap. Aircraft orientation on this map is always heading up unless there is
no valid heading.
The traffic mode is annunciated in the upper left corner of the Traffic Map
Page. When the aircraft is on the ground, TIS automatically enters Standby
Mode. Once the aircraft is airborne, TIS switches from Standby to Operating
Mode and the GTN 7XX begins to display traffic information.
Operate
Standby
TRF Status
Altitude Filter
Normal
Above
Below
Unrestricted

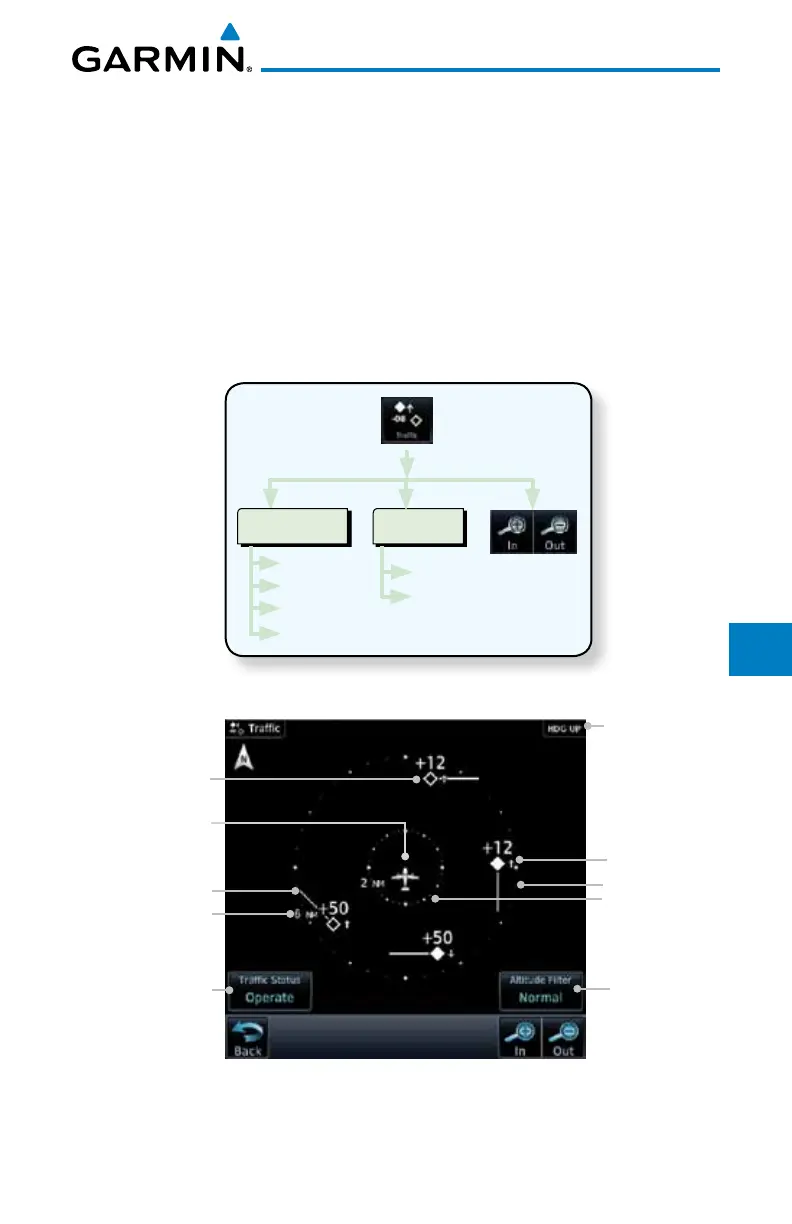

Figure 10-4 Traffic Page Functional Diagram
Heading
Annunciation
Range Rings
Ownship
Position
Non-Threat
Traffic
Altitude Filter
Traffic Status Key
(Operate/Standby)
Range Ring
Radius
Proximity
Advisory, 1200
ft Above and
Climbing
Traffic Direction
Of Travel
Figure 10-5 Traffic Page
